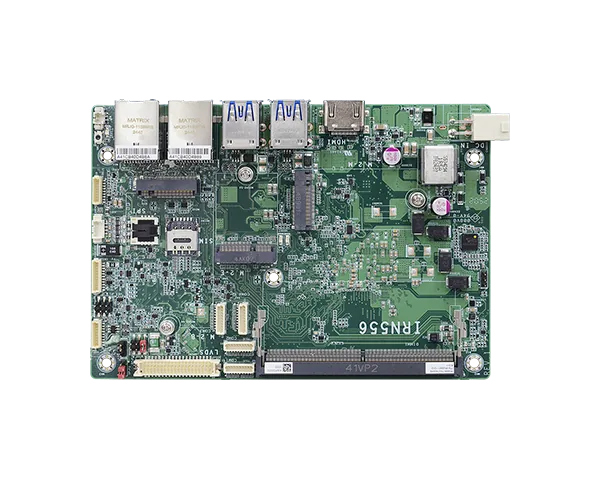

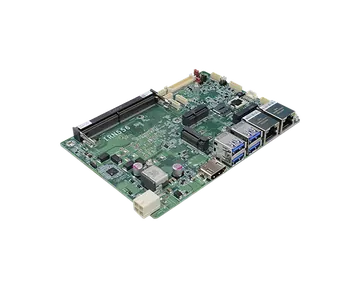

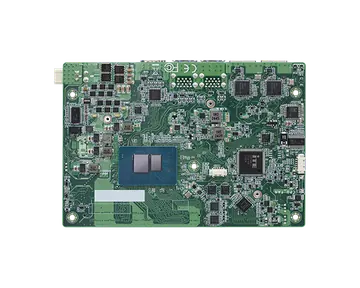

IRN556
3.5" SBC, Intel® Atom® Processor X Series / Intel® Processor N Series, 1 DDR5, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 SIM Slot, 1 HDMI, 1 LVDS, 2 GbE, 4 COM, 4 USB 3.2, 2 USB 2.0, TPM 2.0, 9~36V DC, -40~85°C
- Intel® Atom® Processor X Series / N Series (Code Name : Amston Lake/Twin Lake)
- 1 DDR5 4800MHz SODIMM
- Dual Displays: HDMI + LVDS
- Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
- Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.2, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#DDR5
#Windows 10
#LVDS
#Intel Atom® Amston Lake Processors
#IoT
#Windows 11
#Intel
#SIM Slot
#Compact Size
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® Processor X Series / N Series (Code Name : Amston Lake/Twin Lake)
- 1 DDR5 4800MHz SODIMM
- Dual Displays: HDMI + LVDS
- Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
- Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.2, 2 USB 2.0
System
- Processor
- Intel Atom® Processor X Series (Code Name: Amston Lake) Intel Atom® Processor x7211RE, 2 Cores, 1.0~3.2 GHz, 6 W Intel Atom® Processor x7433RE, 4 Cores, 1.5~3.4 GHz, 9 W Intel Atom® Processor x7835RE, 8 Cores, 1.3~3.6 GHz, 12 W Intel® Processor N series (Code Name: Twin Lake) Intel® Processor N150, 4 Cores, 1.0~3.6 GHz, 6W Intel® Core™ 3 Processor N355, 8 Cores, 1.8~3.9 GHz, 15W
- Memory
- One 262-pin SODIMM up to 16GB Single Channel DDR5 4800MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- OpenGL 4.6, Direct X 12.1, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9, AVC
- Display
- 1 x HDMI 1 x LVDS HDMI: resolution up to 4096x2160 @ 24Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
- Dual Displays
- HDMI + LVDS
Expansion
- Interface
- 1 x M.2 M key 2242 (PCIe Gen3 x2/SATA3.0) 1 x M.2 B key 3052 (PCIe x1/USB3.0/USB2.0) 1 x nano SIM slot 1 x M.2 E key 2230 (USB2.0/PCIe x1)
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- 2 x Intel® i210IT(10/100/1000Mbps)
Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB

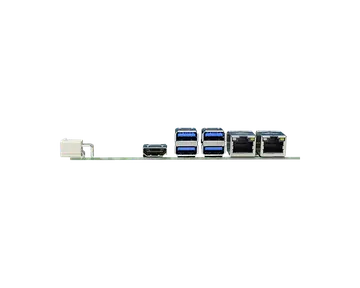

- 4 x USB 3.2
- Display
- 1 x HDMI
Internal I/O
- Serial
- 2 x RS-232/422/485 (1.0mm pitch) 2 x RS-232 (1.0mm pitch)
- USB
- 2 x USB 2.0 (1.0mm pitch)
- Display
- 1 x LVDS LCD Panel Connector
- Audio
- 1 x Audio (Line-out/Mic-in) 1 x Speaker out (5W/8ohm)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM2.0
Power
- Type
- 9~36V DC
- Connector
- Right Angle Connector (4-pin)
- Consumption
- Typical: x7835RE, 36V @ 0.35A (12.6W) Max: x7835RE, 36V @ 1.25A (45.0W) Typical: i3-N355, 36V @ 0.35A (12.6W) Max: i3-N355, 36V @ 1.08A (38.88W) Typical: N150, 36V @ 0.34A (12.24W) Max: N150, 36V @ 0.55A (19.8W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 11 & 10 IoT Enterprise (64-bit) Linux
Environment
- Temperature
- Operating: -40°C ~ 85°C, -5°C ~ 65°C Storage: -40°C ~ 85°C
- Humidity
- Operating: 5% ~ 90% RH Storage: 5% ~ 90% RH
- MTBF
- 809,938 hrs @ 25°C; 458,347 hrs @ 45°C; 291,792 hrs @ 60°C; 215,309 hrs @ 70°C; 136,953 hrs @ 85°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • 1 IRN556 board • 1 Heat sink (Height: 29 mm), A71-008359-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| IRN556-TN-x7385RE | 770-IRN5561-000G | Intel Atom® x7835RE, 8C, 12W, 1 DDR5 SODIMM, HDMI + LVDS, 2 GbE, 2 RS232/422/485, 2 RS232, 2 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -40~85°C |
| IRN556-TN-x7433RE | 770-IRN5561-100G | Intel Atom® x7433RE, 4C, 9W, 1 DDR5 SODIMM, HDMI + LVDS, 2 GbE, 2 RS232/422/485, 2 RS232, 2 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -40~85°C |
| IRN556-TN-x7211RE | 770-IRN5561-200G | Intel Atom® x7211RE, 2C, 6W, 1 DDR5 SODIMM, HDMI + LVDS, 2 GbE, 2 RS232/422/485, 2 RS232, 2 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -40~85°C |
| IRN556-BN-N355 | 770-IRN5561-300G | Intel® Core™ 3 N355, 8C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 GbE, 2 RS232/422/485, 2 RS232, 2 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C |
| IRN556-BN-N150 | 770-IRN5561-400G | Intel® N150, 4C, 6W, 1 DDR5 SODIMM, HDMI + LVDS, 2 GbE, 2 RS232/422/485, 2 RS232, 2 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106012-000G | 60W, 12V |
| 4-pin power to DC jack cable | A81-004051-016G | Length: 100mm |
| 1 COM port cable | A81-015130-018G | Length: 250mm, 1x COM port |
| USB 2.0 cable | A81-001201-018G | Length: 200mm, 2 USB ports |
| Front panel cable | A81-009307-001G | Length: 250mm |
| Audio cable | A81-022043-054G | Length: 200mm |
| Heat spreader | A71-808366-000G | Height: 11mm |
