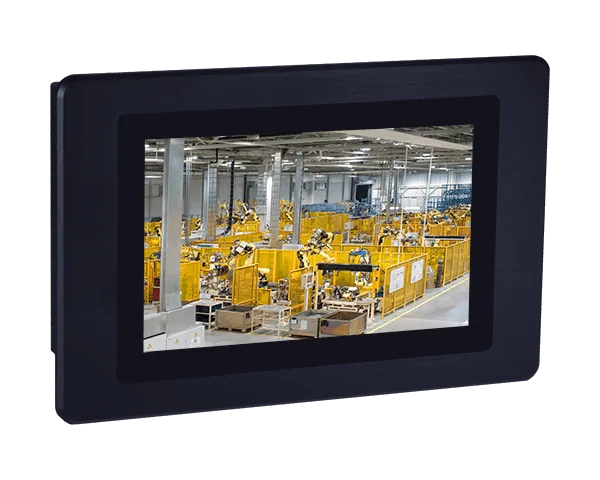

KS070-FS
7" Light Industrial Touch Panel PC, NXP i.MX6 Series, ARM, DDR3L, 1 Mini PCIe, 1 mSATA, 1 SIM
- 7" 1024x600 TFT LCD panel with touch screen
- 1 x SD socket for storage
- IP65 front panel protection
- 4GB eMMC for storage
- Rich I/O: 1 LAN, 2 COM, 2 USB 2.0, 1 USB OTG
- 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)
Főbb jellemzők
#NXP i.MX6 Series
#NXP
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#Android
#HDMI
#DDR3L
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 7" 1024x600 TFT LCD panel with touch screen
- 1 x SD socket for storage
- IP65 front panel protection
- 4GB eMMC for storage
- Rich I/O: 1 LAN, 2 COM, 2 USB 2.0, 1 USB OTG
- 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)
System
- Processor
- Freescale i.MX 6 series processor i.MX6L: i.MX 6DualLite at 1.0GHz, two cortex-A9 cores
- Memory
- 2GB SDRAM Memory Down Single Channel DDR3L 1600MHz
Display and Touch Screen
- Display
- 7” 1024x600 TFT LCD Panel with Capacitive Touch Screen
- Brightness
- 425 cd/m²
- Contrast
- 800:1
- Backlight Lifetime
- 50,000 hours
Graphics
- Display
- 1 x HDMI HDMI: resolution up to 1920x1080 @ 60 Hz
Storage
- Internal
- 4GB eMMC 1 x SD Socket
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB) 1 x mSATA
Audio
- Audio Codec
- Realtek ALC262
Ethernet
- Controller
- 1 x ATHEROS Ethernet Controller AR8033-AL1B (10/100/1000Mbps)
LED
- Indicators
- 1 x Status LED
Front I/O
- Ethernet
- 1 x GbE (RJ-45)
- Serial
- 1 x RS-232
- USB
- 2 x USB 2.0 (type A) 1 x OTG USB
- Display
- 1 x HDMI
- Buttons
- 1 x Power Reset Button

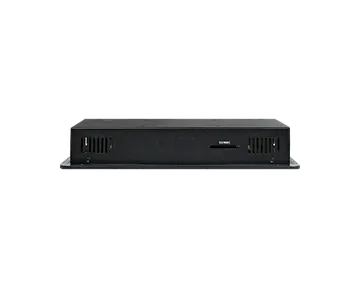

Top I/O
- Wi-Fi Antenna
- 2 x Wi-Fi Module Antenna Hole

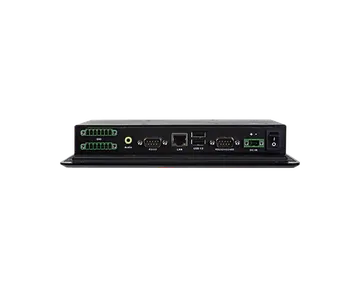

Bottom I/O
- Serial
- 1 x RS-232/422/485
- DIO
- 1 x 8-bit DIO
Internal I/O
- Other I/O
- 1 x MicroSD 1 x SIM
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Wide Range 12~36V
- Connector
- 2-Pole Terminal Block
OS Support
- OS Support
- Android 4.3
Environment
- Operating Temperature
- 0 to 60°C
- Storage Temperature
- -30 to 85°C
- Relative Humidity
- 10 to 90% RH (non-condensing)
Mechanism
- Dimensions
- 235 x 150 x 43.8mm
- Construction
- Sheet Metal
- Mounting
- VESA, Panel Mount
- Weight
- 1.26kg
Standards and Certifications
- Shock
- Operating: 3G, 11ms Non-Operating: 5G, 11ms
- Vibration
- Operating: Random 5~500Hz, IEC68-2-64 (3G) Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G)
- Certifications
- CE, FCC Class B
Packing List
- Packing List
- 1 KS070-FS Touch Panel PC 1 Poron foam 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS070-FS-IMX6 | 750-KS0702-000G | 7" Panel PC, NXP IMX6DL, 2GB Memory, 4GB eMMC, Capacitive Touch |
| Item Name | Part Number | Description |
|---|---|---|
| Wi-Fi | 761-AP1235-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G | 60W, 12V/5A, Level 6, RoHS |
| Panel Mount | 761-KS2020-000G | 7" Panel PC Panel Mount Kit, RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
