KS101P-IRN

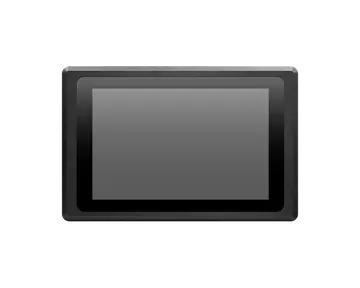

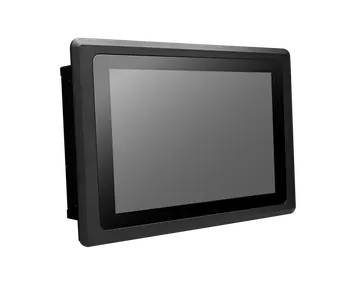

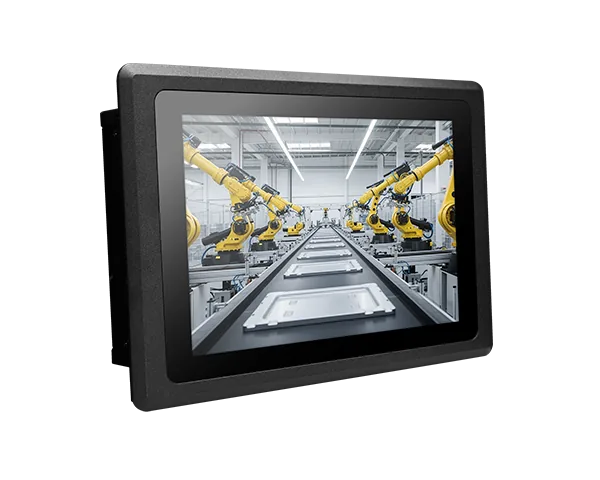

10.1" Industrial Touch Panel PC, Intel® Atom®, DDR5, 1 HDMI, 1 M.2 M key, 1 M.2 B key, 1 M.2 E key,, 2 LAN, 2 COM, 4 USB 3.2
- Intel® Atom® N150 Processor, Quad Core; Intel® Core™ 3 Processor N355, Octa Core
- Touch Type: Projected Capacitive Touch
- Multiple Expansions: M.2 2242 M Key, M.2 3052 B Key, M.2 2230 E Key
- Wide Voltage: Support 9 ~ 36V
Főbb jellemzők
Tanúsítványok
#DDR5
#9~36V DC-in
#Intel
#Fanless Design
#4K2K Display
#IP65 Front Panel Protection
#1G Ethernet
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® N150 Processor, Quad Core; Intel® Core™ 3 Processor N355, Octa Core
- Touch Type: Projected Capacitive Touch
- Multiple Expansions: M.2 2242 M Key, M.2 3052 B Key, M.2 2230 E Key
- Wide Voltage: Support 9 ~ 36V
System
- Processor
- Intel® Atom® N150 Processor, Quad Core, 6M Cache, 1.0GHz (3.6GHz), 6W Intel® Core™ 3 Processor N355, Octa Core, 6M Cache, 1.8GHz (3.9GHz), 15W
- Memory
- Single DDR5-4800 SODIMM Up to 16GB
- BIOS
- AMI SPI 256Mbit
Display and Touch Screen
- Display
- 10.1" TFT LCD Panel
- Brightness
- 500 (cd/m²)
- Backlight Lifetime
- 50,000 (hours)
- Max. Resolution
- 1280 x 800
- Touch Type
- Projected Capacitive
- Aspect Ratio
- 16 : 10
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- OpenGL 4.6, Direct X 12.1, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9, AVC
- Display
- 1 x HDMI HDMI: resolution up to 4096x2160@24Hz
Storage
- External
- 1 x M.2 2242 M Key (PCIe Gen3 x2 / SATA3.0)
Expansion
- Interface
- 1 x M.2 M key 2242 (PCIe Gen3 x2/SATA3.0) 1 x M.2 B key 3052 (PCIe x1/USB3.0/USB2.0) 1 x M.2 E key 2230 (USB2.0/PCIe x1)

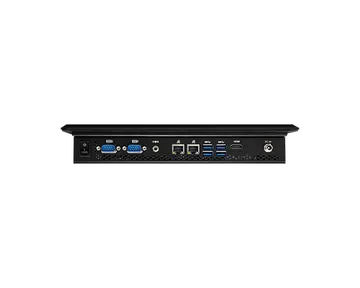

I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 2 x RS232/422/485
- USB
- 4 x USB 3.2
- Display
- 1 x HDMI
- Buttons
- 1 x Power Button
- Audio
- 1 x line-out
Power
- Type
- DC 9-36V
- Connector
- DC Jack
Environment
- Operating Temperature
- TDP 6W CPU: -20~60°C with 0.6m/s air flow TDP 15W CPU: -20~40°C with 0.6m/s air flow
- Storage Temperature
- -30 ~ 80°C
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Mechanism
- Construction
- Aluminum Front Bezel
- IP Rating
- IP65 Front Panel Protection

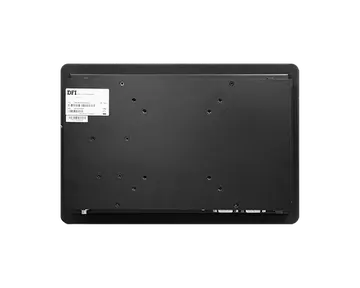

- Mounting
- VESA mount 100 x 100
- Dimensions (W x H x D)
- 294 x 193 x 48mm
- Weight
- 1.7 Kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC, UKCA, RoHS
Packing List
- Packing List
- 1 KS101P-IRN Touch Panel PC 1 Poron foam 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS101P-IRNW36-N15 | 750-KS1014-000G | KS101P-IRN: KS101P-IRNW36-N15, 10.1" TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® ATOM® N150, DC input 9-36V DC jack, F/G SYSTEM RoHS |
| KS101P-IRNW36-N35 | 750-KS1014-100G | KS101P-IRN: KS101P-IRNW36-N35, 10.1" TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® ATOM® i3-N355, DC input 9-36V DC jack, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Power Cord | 785-PWRD | Power Cord; Stand(USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G | 60W,12V/5A,Level 6, RoHS |
| Panel Mount | 761-VS1010-000G | ACCESSORY PANEL MOUNT KITS VIS101, RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
