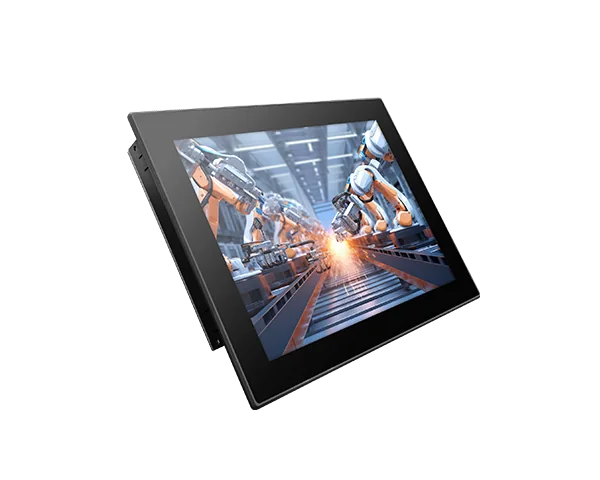

KS150-MTH
15" Industrial Touch Panel PC, Intel® Arrow Lake U Processors, Intel® Meteor Lake U Processors, DDR5, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 HDMI, 1 DP++, 1 USB Type C, 3 2.5GbE, 4 COM, 4 USB 3.2 Gen2, Projected Capacitive/5-Wire Resistive Touch, 9 ~ 36V
- Intel® Arrow Lake U Processors, Intel® Meteor Lake U Processors
- Touch Type: Projected Capacitive / 5-Wire Resistive Touch
- Triple Display: HDMI + DP++ + USB Type C
- Multiple Expansions: M.2 3042/2280 M Key, M.2 2242/3042/3052 B Key, M.2 2230 E Key
- Wide Voltage: Support 9 ~ 36V
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#M.2
#IoT
#Intel
#Fanless Design
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Arrow Lake U Processors, Intel® Meteor Lake U Processors
- Touch Type: Projected Capacitive / 5-Wire Resistive Touch
- Triple Display: HDMI + DP++ + USB Type C
- Multiple Expansions: M.2 3042/2280 M Key, M.2 2242/3042/3052 B Key, M.2 2230 E Key
- Wide Voltage: Support 9 ~ 36V
System
- Processor
- Intel® Arrow Lake U Processors Intel® Core™ Ultra7 255U (15W) Intel® Core™ Ultra 5 225U (15W) Intel® Meteor Lake U Processors Intel® Core™ Ultra7 155U (15W) Intel® Core™ Ultra 5 125U (15W)
- Memory
- 2x 262-pin SODIMM up to 96GB(MTL)/128GB(ARL) Dual Channel DDR5 5600MHz(MTL)/6400MHz(ARL)
- BIOS
- AMI SPI 256Mbit
Display and Touch Screen
- Display
- 15" TFT LCD Panel
- Brightness
- 300 (cd/m²)
- Contrast
- 4 : 3
- Backlight Lifetime
- 50,000 (hours)
- Max. Resolution
- 1024 x 768
- Touch Type
- Projected Capacitive / 5-Wire Resistive Touch
Graphics
- Controller
- Intel® Graphics (265U/225U/255U)
- Feature
- DirectX12.2, OpenGL4.6, OpenCL3.0, H.264, H.265, AV1, VP9, Intel® Quick Sync Video AI Software Frameworks Supported by GPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
- Display
- 1 x DP++ 1 x HDMI 1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W) DP++: resolution up to 4096 x 2304 @ 60Hz HDMI: resolution up to 4096 x 2304 @60Hz USB Type C: resolution up to 4096x2304 @60Hz
- Triple Displays
- DP++ + HDMI + USB Type C
Storage
- External
- 1 x 2.5" SATA 3.0
Expansion
- Interface
- 1 x M.2 2242/2280 M Key (PCIE Gen4x4, support NVMe ) 1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB3.2 Gen2, USB2.0, selected by BIOS) 1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi)
I/O
- Ethernet
- 3 x 2.5GbE
- Serial
- 2 x RS-232/422/485 2 x RS-232
- USB
- 4 x USB 3.2 Gen2 1 x USB Type C
- Display
- 1 x DP++ 1 x HDMI
- Buttons
- 1 x Power Button
- Audio
- 1 x line-out
Security
- TPM
- dTPM (default) fTPM (option)
Power
- Type
- DC 9-36V
- Connector
- DC Jack
OS Support
- Microsoft
- Windows 11 IoT Enterprise 64bit
- Linux
- Linux
Environment
- Operating Temperature
- -10~60°C with 0.6m/s air flow
- Storage Temperature
- -30 ~ 80°C
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Mechanism
- Construction
- Aluminum Front Bezel + Sheet Metal
- IP Rating
- IP65 Front Panel Protection
- Mounting
- VESA mount 100 x 100
- Dimensions (W x H x D)
- 373 x 297 x TBD mm
- Weight
- TBD
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms MIL-STD-810G Standard
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min MIL-STD-810G Standard
- Certifications
- CE, FCC Class A, RoHS, UKCA
Packing List
- Packing List
- • 1 KS150-MTH Touch Panel PC • 1 Poron foam • 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS150P-MTHW36P-155U | 750-KS1503-000G | Display Type 15" TFT XGA, Projected Capacitive Touch, Intel® Core™ Ultra 7 155U, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| KS150P-MTHW36R-155U | 750-KS1503-100G | Display Type 15" TFT XGA, 5-Wire Resistive Touch, Intel® Core™ Ultra 7 155U, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| KS150P-MTHW36P-125U | 750-KS1503-200G | Display Type 15" TFT XGA, Projected Capacitive Touch, Intel® Core™ Ultra 5 125U, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| KS150P-MTHW36R-125U | 750-KS1503-300G | Display Type 15" TFT XGA, 5-Wire Resistive Touch, Intel® Core™ Ultra 5 125U, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Power Cord | 785-PWRD | Power Cord; Stand(USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-112005-100G | 120W, 24/5A, Leve 6, RoHS |
| Panel Mount | 761-TPC120-000G | ACCESSORY PANEL MOUNT KITS, RoHS |
