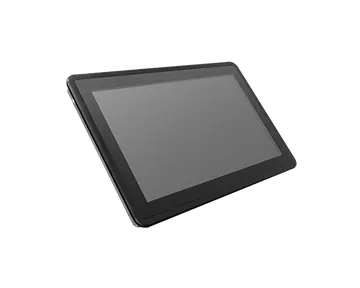

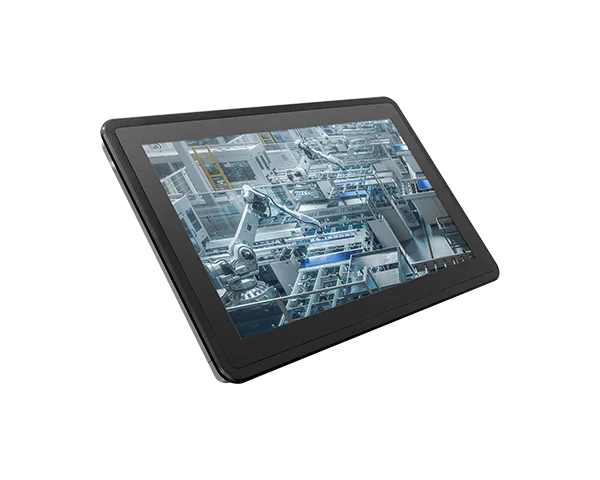

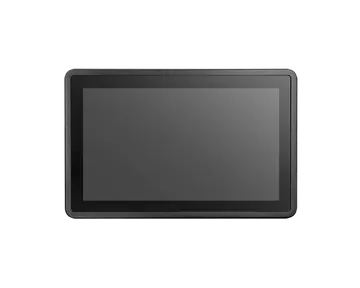

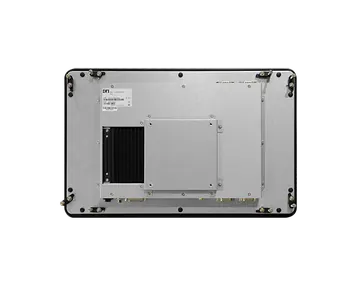

KS156-BT
15.6" Industrial Touch Panel PC, Projected Capacitive Touch, Intel Celeron® J1900, DDR3L, 1 DVI-I, 1x 2.5" SATA drive bay, 2 LAN, 2 COM, 1 USB 3.0, 2 USB 2.0, IP65 Front Panel Protection
- 15.6" 1920x1080 TFT LCD Panel with Projected Capacitive Touch
- 1x 2.5" SATA drive bay
- IP65 Front Panel Protection
- VESA/Panel Mount
- Rich I/O: 2 LAN, 2 COM, 1 USB 3.0, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#SIM Slot
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#1G Ethernet
#Windows
#DVI-I
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 15.6" 1920x1080 TFT LCD Panel with Projected Capacitive Touch
- 1x 2.5" SATA drive bay
- IP65 Front Panel Protection
- VESA/Panel Mount
- Rich I/O: 2 LAN, 2 COM, 1 USB 3.0, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Celeron® J1900 Processor, 2M Cache, Max. Speed: 2.42GHz, 10W
- Memory
- One SODIMM up to 4GB Single Channel DDR3L 1066MHz Two SODIMM up to 8GB Dual Channel DDR3L 1333MHz
- BIOS
- AMI SPI 64Mbit
Display and Touch Screen
- Display
- 15.6" TFT LCD Panel
- Brightness
- 400 (cd/m2)
- Contrast
- 700 : 1
- Backlight Lifetime
- 50,000 hours (Min)
- Max. Resolution
- 1920 x 1080
- Touch Type
- Projected Capacitive
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.0, DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
- Display
- 1 x DVI-I 24-bit, resolution up to 1920x1080 @ 60Hz
Storage
- External
- 1 x 2.5" SATA 2.0 Drive Bay 1 x mSATA (Shared by Mini PCIe Socket)
Expansion
- Interface
- 1 x PCIe x1 1 x Mini PCIe 1 x SIM card
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 2 x Intel® I210AT
LED
- Indicators
- Power, HDD LED

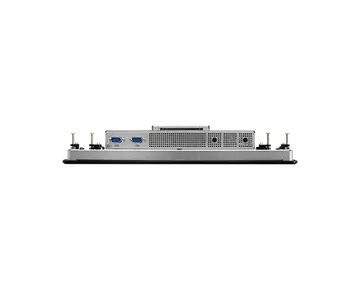

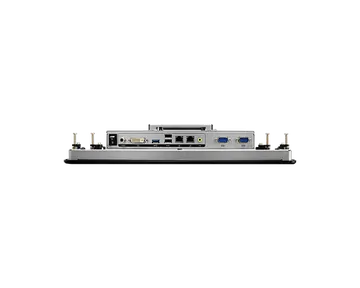

I/O
- Ethernet
- 2 x GbE
- Serial
- 2 x RS232/422/485
- USB
- 1 x USB 3.2 2 x USB 2.0
- Display
- 1 x DVI-I
- Buttons
- 1 x Power Switch
- Audio
- 1 x line-out
Power
- Type
- DC 19-24V
- Connector
- DC Jack
OS Support
- Microsoft
- Win10 IoT
Environment
- Operating Temperature
- 0 ~ 50°C (SSD)
- Storage Temperature
- -30 ~ 70°C
- Relative Humidity
- 5~85% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- IP Rating
- IP65 Front Panel Protection without power button
- Mounting
- Panel / VESA Mount
- Dimensions (W x H x D)
- 409 x 259 x 65.5 mm
- Weight
- 6.2 Kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • 1 KS156-BT Touch Panel PC • 4 M3 Screws • 1 SATA cable
Country of Origin
- Country of Origin
- Taiwan
