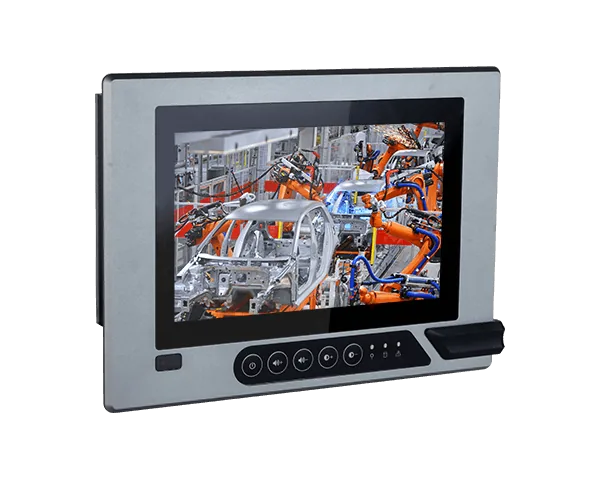

KSM-AL Series
KSM-AL, Fanless Touch Panel PC with Intel Atom®/Celeron®, designed with rugged design which is ideal for AMR/AGV/industrial automation applications
- Proprietary modular design - Adaptive Display Platform
- Front OSD & Accessible 2.5" SATA Drive Bay

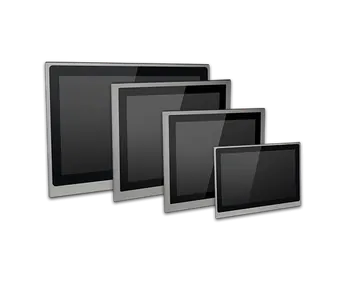

- Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
- Patent: Supports 24V / 9~48V Modular Power Board
- Fanless, Cableless Design
- 12V/24V/48V Ignition Power Control
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Plug & Play
#IoT
#Intel
#HMI
#PoE
#Mini PCIe
#IP65 Front Panel Protection
#Windows
#Linux
#DVI-D
#VGA
#DP
#DDR3L
#Low Power Consumption
#RoHS Certification
#FCC Certification
#KC Certification
#AGV
Főbb jellemzőkKey features
- Proprietary modular design - Adaptive Display Platform
- Front OSD & Accessible 2.5" SATA Drive Bay
- Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
- Patent: Supports 24V / 9~48V Modular Power Board
- Fanless, Cableless Design
- 12V/24V/48V Ignition Power Control
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz
- BIOS
- Insyde SPI 128Mbit (supports UEFI support only)
Display and Touch Screen
- Display
- [KSM070-AL]7" TFT LCD Panel [KSM101-AL]10.1" TFT LCD Panel [KSM121-AL]12.1" TFT LCD Panel [KSM150-AL]15" TFT LCD Panel [KSM156-AL]15.6" TFT LCD Panel [KSM170-AL]17" TFT LCD Panel [KSM185-AL]18.5" TFT LCD Panel [KSM190-AL]19" TFT LCD Panel [KSM215-AL]21.5" TFT LCD Panel
- Brightness
- [KSM070-AL]500 (cd/m²) [KSM101-AL]350 (cd/m²) [KSM121-AL]500 (cd/m²) [KSM150-AL]300 (cd/m²) [KSM156-AL]400 (cd/m²) [KSM170-AL]350 (cd/m²) [KSM185-AL]450 (cd/m²) [KSM190-AL]350 (cd/m²) [KSM215-AL]300 (cd/m²)
- Backlight Lifetime
- [KSM070-AL]40,000 hours [KSM101-AL]25,000 hours [KSM121-AL]30,000 hours [KSM150-AL]70,000 hours [KSM156-AL]50,000 hours [KSM170-AL]30,000 hours [KSM185-AL]50,000 hours [KSM190-AL]70,000 hours [KSM215-AL]50,000 hours
- Max. Resolution
- [KSM070-AL]800 x 480 [KSM101-AL]1280 x 800 [KSM121-AL]1024 x 768 [KSM150-AL]1024 x 768 [KSM156-AL]1366 x 768 [KSM170-AL]1280 x 1024 [KSM185-AL]1366 x 768 [KSM190-AL]1280 x 1024 [KSM215-AL]1920 x 1080
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x DP++ 1 x VGA or DVI-D (DVI-D available upon request) DP++: resolutionp u to 4096x2160 @ 60Hz VGA: Resolution up to 2560x1600 @ 60Hz DVI-D: Resolution up to 1920x1200 @ 60Hz
- Triple Displays
- Panel Module, DP++, VGA or DVI-D
Storage
- External/Internal
- 1 x 2.5" SATA 3.0 Drive Bay (accessible) 1 x mSATA (shared by Mini-PCIe Socket)
Expansion
- Interface
- 1 x Full-size Mini PCIe (USB/PCIe) 1 x Half-size Mini PCIe (USB/PCIe/mSATA) 1 x SIM Slot
Audio
- Audio Codec
- Realtek ALC262
- Speaker
- 2 x 1.5W Speaker (opt.)
Ethernet
- Controller
- 2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED
Front I/O
- USB
- Opt.: 1 x USB 2.0
- OSD Keypad
- Opt.: Backlight On-Off / Brightness Up / Brightness Down / Audio Up / Audio Down
- LED Indicators
- Opt.: Power LED / HDD LED / Alarm LED
Top I/O
- Serial
- 2 x RS-232/422/485 (DB9) 2 x RS-232/422/485 (available upon request) Support 5V/12V Power
- USB
- 2 x USB 3.0 (type A) 2 x USB 2.0 (type A) 2 x USB 2.0 (available upon request)
- Wi-Fi Antenna
- 4 x Wi-Fi Module Antenna Hole
- DIO
- 4 x DI / 4 x DO (10-pin terminal block) (available upon request)
- Buttons
- 1 x Power Button 1 x Reset Switch
- Switch
- 1 x AT/ATX Switch 1 x Ignition Power On/Off Switch
- Ethernet
- 2 x GbE (RJ-45) (10/100/1000Mbps) Support Jumbo Frame, IEEE1588v2, WOL, PXE 802.3 af PoE (PSE), Individual Port 15.4W (available upon request)
- Remote Power On/Off
- 1 x 2-pin Terminal Block
Bottom I/O
- Display
- 1 x DP++ 1 x VGA or DVI-D (DVI-D available upon request)
- Audio
- 1 x Line-out 1 x Mic-in
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 24 VDC Input (available upon request) 9~48 VDC Input (available upon request) Power Management Includes Ignition On/Off and System On/Off Delay Time Control Auto Detect Boot-up & Shut-down Voltage for Low Power Protection Support 12V/24V/48V DC Input 7-level Delay Time On/Off Configuration I/O Switch Selectable Ignition Power On/Off
- Connector
- 3-pin Terminal Block
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit Linux
Environment
- Operating Temperature
- [KSM070-AL] -20 to 70°C [KSM101-AL]-20 to 70°C [KSM121-AL]-20 to 70°C [KSM150-AL]-20 to 70°C [KSM156-AL]0 to 60°C [KSM170-AL]0 to 50°C [KSM185-AL]0 to 60°C [KSM190-AL]-20 to 70°C [KSM215-AL]0 to 60°C
- Storage Temperature
- [KSM070-AL]-30 to 80°C [KSM101-AL]-30 to 80°C [KSM121-AL]-40 to 80°C [KSM150-AL]-30 to 70°C [KSM156-AL]-20 to 60°C [KSM170-AL]-20 to 60°C [KSM185-AL]-20 to 60°C [KSM190-AL]-30 to 85°C [KSM215-AL]-20 to 60°C
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Construction
- Aluminum Front Bezel
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Panel/VESA Mount
- Dimensions (W x H x D)
- [KSM070-AL]224mm x 163.55mm x 72.9mm [KSM101-AL]275mm x 212.3mm x 72.9mm [KSM121-AL]308mm x 265.3mm x 77.9mm [KSM150-AL]387mm x 320mm x 80.5mm [KSM156-AL]407.3mm x 277.3mm x 76.1mm [KSM170-AL]404mm x 363.8mm x 80.9mm [KSM185-AL]472.1mm x 314.1mm x 80.9mm [KSM190-AL]467mm x 400mm x 80.5mm [KSM215-AL]544.2mm x 360.6mm x 80.9mm
- Weight
- [KSM070-AL]2.2 kg [KSM101-AL]2.4 kg [KSM121-AL]3.2 kg [KSM150-AL]5.3 kg [KSM156-AL]4.2 kg [KSM170-AL]5.4 kg [KSM185-AL]5.7 kg [KSM190-AL]7.6 kg [KSM215-AL]7 kg
Standards and Certifications
- Shock
- [KSM070-AL]Non-op : 240G, 2ms, half sine wave, 1 time for ± X, ± Y, ± Z direction [KSM101-AL]Non-op : 240G, 2ms, half sine wave, 1 time for ± X, ± Y, ± Z direction [KSM121-AL]Non-op : 200G, 2ms, half sine wave, 1 time for ± X, ± Y, ± Z direction [KSM150-AL]Non-op : 50G, 11ms, half sine wave, 1 time for ± X, ±Y, ± Z direction [KSM156-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ± Y, ± Z direction [KSM170-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ± Y, ± Z direction [KSM185-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ± Y, ± Z direction [KSM190-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ±Y, ± Z direction [KSM215-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ± Y, ± Z direction
- Vibration
- [KSM070-AL]Non-op: 1.5G, 10~300 Hz sine wave, 10 min/cycle, 3 cycles each X,Y, Z direction [KSM101-AL]Non-op: 1.5G, 10~300 Hz sine wave, 10 min/cycle, 3 cycles each X,Y, Z direction [KSM121-AL]Non-op: 1.5G, 10 ~ 300 Hz sine wave, 10 min/cycle, 3 cycles each X, Y, Z direction [KSM150-AL]Non-op: 1.5G, 10 ~ 300 Hz sine wave, 10 min/cycle, 3 cycles each X, Y, Z direction [KSM156-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min [KSM170-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min [KSM185-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min [KSM190-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min [KSM215-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min
- Certifications
- CE / FCC Class A / RoHS / UKCA [KSM170-AL] support KC certification
Packing List
- Packing List
- 1 Single Box 1 3 pin Terminal Block Connector 1 2 pin Terminal Block Connector 2 Mini PCIe Screw 4 SATA Screw Note: Please choose "KSM-AL Series product page > Download button" to download the Driver and Manual.
Patent
- Patent No. (Taiwan)
- I670589 I711917
Others
- Auto Dimming
- Opt.: Light Sensor
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KSM070P-ALD24-E40 | available upon request | KSM070P-ALD24-E40: 7" TFT WVGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM070P-ALD24-N50 | available upon request | KSM070P-ALD24-N50: 7" TFT WVGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM070P-ALW48-E40 | available upon request | KSM070P-ALW48-E40: 7" TFT WVGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM070P-ALW48-N50 | available upon request | KSM070P-ALW48-N50: 7" TFT WVGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM070R-ALD24-E40 | available upon request | KSM070R-ALD24-E40: 7" TFT WVGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM070R-ALD24-N50 | available upon request | KSM070R-ALD24-N50: 7" TFT WVGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM070R-ALW48-E40 | available upon request | KSM070R-ALW48-E40: 7" TFT WVGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM070R-ALW48-N50 | 750-KS07R0-200G | KSM070R-ALW48-N50: 7" TFT WVGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM101P-ALD24-E40 | available upon request | KSM101P-ALD24-E40: 10.1" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM101P-ALD24-N50 | available upon request | KSM101P-ALD24-N50: 10.1" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM101P-ALW48-E40 | 750-KS1011-100G | KSM101P-ALW48-E40: 10.1" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM101P-ALW48-N50 | available upon request | KSM101P-ALW48-N50: 10.1" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM101R-ALD24-E40 | available upon request | KSM101R-ALD24-E40: 10.1" TFT WXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM101R-ALD24-N50 | available upon request | KSM101R-ALD24-N50: 10.1" TFT WXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM101R-ALW48-E40 | available upon request | KSM101R-ALW48-E40: 10.1" TFT WXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM101R-ALW48-N50 | 750-KS1011-000G | KSM101R-ALW48-N50: 10.1" TFT WXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM121P-ALD24-E40 | available upon request | KSM121P-ALD24-E40: 12.1" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM121P-ALD24-N50 | available upon request | KSM121P-ALD24-N50: 12.1" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM121P-ALW48-E40 | 750-KS1210-100G | KSM121P-ALW48-E40: 12.1" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM121P-ALW48-N50 | available upon request | KSM121P-ALW48-N50: 12.1" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM121R-ALD24-E40 | available upon request | KSM121R-ALD24-E40: 12.1" TFT XGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM121R-ALD24-N50 | available upon request | KSM121R-ALD24-N50: 12.1" TFT XGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM121R-ALW48-E40 | available upon request | KSM121R-ALW48-E40: 12.1" TFT XGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM121R-ALW48-N50 | available upon request | KSM121R-ALW48-N50: 12.1" TFT XGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM150P-ALD24-E40 | available upon request | KSM150P-ALD24-E40: 15" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM150P-ALD24-N50 | available upon request | KSM150P-ALD24-N50: 15" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM150P-ALW48-E40 | available upon request | KSM150P-ALW48-E40: 15" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM150P-ALW48-N50 | available upon request | KSM150P-ALW48-N50: 15" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM150R-ALD24-E40 | available upon request | KSM150R-ALD24-E40: 15" TFT XGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM150R-ALD24-N50 | available upon request | KSM150R-ALD24-N50: 15" TFT XGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM150R-ALW48-E40 | available upon request | KSM150R-ALW48-E40: 15" TFT XGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM150R-ALW48-N50 | available upon request | KSM150R-ALW48-N50: 15" TFT XGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM156P-ALD24-E40 | available upon request | KSM156P-ALD24-E40: 15.6" TFT HD Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM156P-ALD24-N50 | available upon request | KSM156P-ALD24-N50: 15.6" TFT HD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM156P-ALW48-E40 | available upon request | KSM156P-ALW48-E40: 15.6" TFT HD Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM156P-ALW48-N50 | available upon request | KSM156P-ALW48-N50: 15.6" TFT HD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM156R-ALD24-E40 | available upon request | KSM156R-ALD24-E40: 15.6" TFT HD Panel PC with Resistive Touch, Intel® Atom®x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM156R-ALD24-N50 | available upon request | KSM156R-ALD24-N50: 15.6" TFT HD Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM156R-ALW48-E40 | available upon request | KSM156R-ALW48-E40: 15.6" TFT HD Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM156R-ALW48-N50 | 750-K15603-000G | KSM156R-ALW48-N50: 15.6" TFT HD Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM170P-ALD24-E40 | available upon request | KSM170P-ALD24-E40: 17" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM170P-ALD24-N50 | available upon request | KSM170P-ALD24-N50: 17" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM170P-ALW48-E40 | available upon request | KSM170P-ALW48-E40: 17" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM170P-ALW48-N50 | available upon request | KSM170P-ALW48-N50: 17" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM170R-ALD24-E40 | available upon request | KSM170R-ALD24-E40: 17" TFT SXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM170R-ALD24-N50 | available upon request | KSM170R-ALD24-N50: 17" TFT SXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM170R-ALW48-E40 | available upon request | KSM170R-ALW48-E40: 17" TFT SXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM170R-ALW48-N50 | available upon request | KSM170R-ALW48-N50: 17" TFT SXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM185P-ALD24-E40 | available upon request | KSM185P-ALD24-E40: 18.5" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM185P-ALD24-N50 | available upon request | KSM185P-ALD24-N50: 18.5" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM185P-ALW48-E40 | available upon request | KSM185P-ALW48-E40: 18.5" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM185P-ALW48-N50 | available upon request | KSM185P-ALW48-N50: 18.5" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM185R-ALD24-E40 | available upon request | KSM185R-ALD24-E40: 18.5" TFT WXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM185R-ALD24-N50 | available upon request | KSM185R-ALD24-N50: 18.5" TFT WXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM185R-ALW48-E40 | available upon request | KSM185R-ALW48-E40: 18.5" TFT WXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM185R-ALW48-N50 | available upon request | KSM185R-ALW48-N50: 18.5" TFT WXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM190P-ALD24-E40 | available upon request | KSM190P-ALD24-E40: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM190P-ALD24-E40 | available upon request | KSM190P-ALD24-E40: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM190P-ALD24-N50 | available upon request | KSM190P-ALD24-N50: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM190P-ALD24-N50 | available upon request | KSM190P-ALD24-N50: 19" TFT SXGA HD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM190P-ALW48-E40 | available upon request | KSM190P-ALD24-E40: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM190P-ALW48-E40 | available upon request | KSM190P-ALW48-E40: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM190P-ALW48-N50 | available upon request | KSM190P-ALW48-N50: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM190P-ALW48-N50 | available upon request | KSM190P-ALW48-N50: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM215P-ALD24-E40 | available upon request | KSM215P-ALD24-E40: 21.5" TFT FHD Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM215P-ALD24-N50 | available upon request | KSM215P-ALD24-N50: 21.5" TFT FHD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM215P-ALW48-E40 | available upon request | KSM215P-ALW48-E40: 21.5" TFT FHD Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM215P-ALW48-N50 | available upon request | KSM215P-ALW48-N50: 21.5" TFT FHD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM215R-ALD24-E40 | available upon request | KSM215R-ALD24-E40: 21.5" TFT FHD Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM215R-ALD24-N50 | available upon request | KSM215R-ALD24-N50: 21.5" TFT FHD Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS |
| KSM215R-ALW48-E40 | available upon request | KSM215R-ALW48-E40: 21.5" TFT FHD Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| KSM215R-ALW48-N50 | available upon request | KSM215R-ALW48-N50: 21.5" TFT FHD Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| HDD | 785-H25500G 785-H25320G 785-S25512G 785-S25256G 785-S25128G 785-S25064G 785-S25032G | 2.5" SATA HDD, 500GB, RoHS 2.5" SATA HDD, 320GB, RoHS 2.5" SATA SSD, 512GB MLC, RoHS 2.5" SATA SSD, 256GB MLC, RoHS 2.5" SATA SSD, 128GB MLC, RoHS 2.5" SATA SSD, 64GB MLC, RoHS 2.5" SATA SSD, 32GB MLC, RoHS |
| mSATA | 785-MS128GMF 785-MS64GMF 785-MS32GMF 785-MS16GMF | mSATA mini, 128GB MLC, RoHS mSATA mini, 64GB MLC, RoHS mSATA Card, 32GB MLC, RoHS mSATA Card, 16GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi Kit, RoHS |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106013-000G 671-112005-100G | 60W: 12VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS 120W: 24VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS |
| Panel Mount Kit | 761-KS0701-000G 761-P15002-000G 761-P19003-000G available upon request 761-KS2150-000G | KSM070-AL / KSM101-AL / KSM121-AL Panel Mount Kit RoHS Panel Mount Kit for PMKSM150 RoHS KSM170-AL / KSM190-AL Panel Mount Kit RoHS KSM185 Panel Mount Kit RoHS KSM215-AL Panel Mount Kit RoHS |
