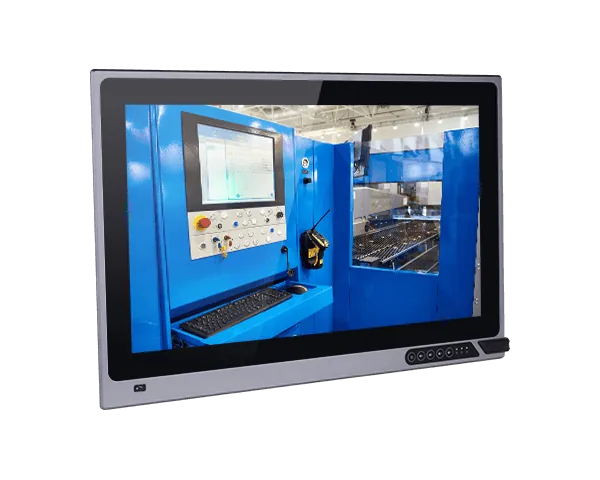

KSM-SD Series
KSM-SD, Fanless Touch Panel PC with 6th Gen Intel® i3/i5/i7, designed with modular design which is ideal for automation/transportation/HMI applications
- Support Adaptive Display Platform

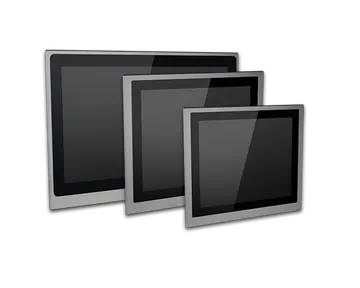

- Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
- Supports 9~36V Power Input
- Fanless Design Intel Core Processor with fanless design
- Front OSD & Accessible 2.5" SATA Drive Bay
- 15-Year CPU Life Cycle Support Until Q4' 30 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Plug & Play
#IoT
#Intel
#HMI
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#1G Ethernet
#Windows
#Linux
#HDMI
#DVI-D
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Support Adaptive Display Platform
- Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
- Supports 9~36V Power Input
- Fanless Design Intel Core Processor with fanless design
- Front OSD & Accessible 2.5" SATA Drive Bay
- 15-Year CPU Life Cycle Support Until Q4' 30 (Based on Intel IOTG Roadmap)
System
- Processor
- 6th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
- Chipset
- Intel® H110 Chipset
- Memory
- Two 260-pin SODIMM up to 32GB Dual Channel DDR4 1866/2133MHz
- BIOS
- Insyde SPI 128Mbit
Display and Touch Screen
- Display
- [KSM150-SD]15" TFT LCD Panel [KSM156-SD]15.6" TFT LCD Panel [KSM170-SD]17" TFT LCD Pane [KSM185-SD]18.5" TFT LCD Panel [KSM190-SD]19" TFT LCD Panel [KSM215-SD]21.5" TFT LCD Panel
- Brightness
- [KSM150-SD]300 (cd/m²) [KSM156-SD]400 (cd/m²) [KSM170-SD]350 (cd/m²) [KSM185-SD]450 (cd/m²) [KSM190-SD]350 (cd/m²) [KSM215-SD]300 (cd/m²)
- Backlight Lifetime
- [KSM150-SD]70,000 hours [KSM156-SD]50,000 hours [KSM170-SD]30,000 hours [KSM185-SD]50,000 hours [KSM190-SD]70,000 hours [KSM215-SD]50,000 hours
- Max. Resolution
- [KSM150-SD]1024 x 768 [KSM156-SD]1366 x 768 [KSM170-SD]1280 x 1024 [KSM185-SD]1366 x 768 [KSM190-SD]1280 x 1024 [KSM215-SD]1920 x1080
- Touch Type
- Projected Capacitive / 5-wire Resistive
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DVI (DVI-D signal) 1 x HDMI/DP (DP available upon request) VGA: resolution up to 1920x1200 @ 60Hz DVI: resolution up to 2560x1600 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz DP: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + DVI (DVI-D signal) + HDMI VGA + DVI (DVI-D signal) + DP
Storage
- External/Internal
- 1 x 2.5" SATA 3.0 Drive Bay
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB) 1 x Half-size Mini PCIe (USB/mSATA)
Ethernet
- Controller
- 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

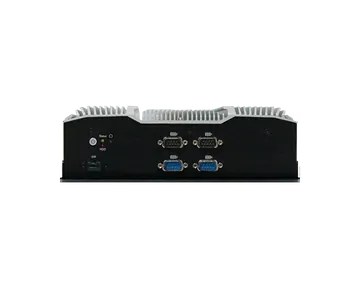

Front I/O
- Serial
- 2 x RS-232/422/485 (DB-9) (RS-232 with power) 2 x RS-232/422/485 (DB-9)
- USB
- 1 x USB 2.0
- Buttons
- 1 x Power Button 1 x Reset Button
- OSD Keypad
- Backlight On-Off / Brightness Up / Brightness Down / Audio Up / Audio Down
- LED Indicators
- Power LED / HDD LED / Alarm LED

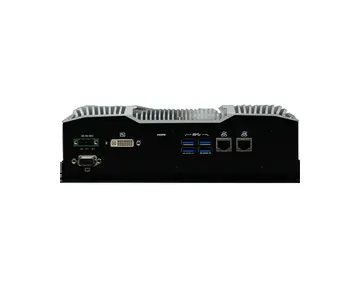

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 4 x USB 3.0 (type A)
- Display
- 1 x DVI (DVI-D signal) 1 x HDMI/DP (DP available upon request)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 9~36 VDC Input 12 VDC Input (available upon request)
- Connector
- 3-pole Terminal Block
OS Support
- OS Support
- Windows 7 (32/64-bit) Windows 10 IoT LTSB RS1 Enterprise (64bit) Linux
Environment
- Temperature
- [KSM150-SD]-20 to 70°C [KSM156-SD]0 to 60°C [KSM170-SD]0 to 50°C [KSM185-SD]0 to 60°C [KSM190-SD]-20 to 70°C [KSM215-SD]0 to 60°C
- Storage Temperature
- [KSM150-SD]-30 to 70°C [KSM156-SD]-20 to 60°C [KSM170-SD]-20 to 60°C [KSM185-SD]-20 to 60°C [KSM190-SD]-30 to 85°C [KSM215-SD]-20 to 60°C
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Dimensions
- [KSM150-SD]387 x 320 x 118 mm [KSM156-SD]407.3 x 277.3 x 97.92 mm [KSM170-SD]404 x 363.8 x 102.8 mm [KSM185-SD]472.06 x 314.15 x 102.8 mm [KSM190-SD]467 x 400 x 118 mm [KSM215-SD]544.2 x 360.6 x 118 mm
- Construction
- Aluminum + SGCC
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Panel/VESA Mount 100 x 100 mm
- Weight
- [KSM150-SD]7.7 kg [KSM156-SD]6.6 kg [KSM170-SD]8.1 kg [KSM185-SD]8.1 kg [KSM190-SD]10 kg [KSM215-SD]9.4 kg
Standards and Certifications
- Shock
- Half sine wave 3G, 11ms, 3 shock per axis
- Vibration
- IEC68-2-64
- Certifications
- CE, FCC Class A, RoHS
Packing List
- Packing List
- 1 Single Box 1 3 pin Terminal Block Connector 2 Mini PCIe Screw 1 SATA Screw 8 Panel Mount Note: Please choose "KSM-SD Series product page > Download button" to download the Driver and Manual. 1 Single Box 1 3 pin Terminal Block Connector 2 Mini PCIe Screw 1 SATA Screw
Patent
- Patent No. (Taiwan)
- I711917
Others
- Auto Dimming
- Light Sensor
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KSM150P-SDW36 | 750-K15002-100G | 15" TFT XGA Fanless Panel PC with Projected Capacitive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM150R-SDW36 | 750-K15002-200G | 15" TFT XGA Fanless Panel PC with Resistive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM150P-SDW36-KLU | 750-K15002-300G | 15" TFT XGA Fanless Panel PC with Projected Capacitive Touch, OSD, Light Sensor, USB, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM156P-SDW36 | 750-K15602-100G | 15.6" TFT XGA Fanless Panel PC with Projected Capacitive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM156R-SDW36 | 750-K15602-200G | 15.6" TFT XGA Fanless Panel PC with Resistive Touch, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM156P-SDW36-KLU | 750-K15602-300G | 15.6" TFT XGA Fanless Panel PC with Projected Capacitive Touch, OSD, Light Sensor, USB, Intel® 6th Core Processor, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| CPU | 143-102402-500G 143-102303-500G 143-102701-500G 143-102401-500G | Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz);35W Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz);35W Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz;35W Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W |
| Memory | 138-540002-100G 138-580002-100G 138-5G0161-100G | 4GB DDR4 SODIMM RAM 8GB DDR4 SODIMM RAM 16GB DDR4 SODIMM RAM |
| HDD/SSD | 635-550092-050G 635-500100-200G 635-610002-110G 635-605122-110G 635-602562-120G 635-601282-190G 635-600642-150G | 2.5” SATA HDD, 500GB, RoHS 2.5” SATA HDD, 1TB, RoHS 2.5" SATA SSD, 1TB MLC, RoHS 2.5" SATA SSD, 512GB MLC, RoHS 2.5" SATA SSD, 256GB MLC, RoHS 2.5" SATA SSD, 128GB MLC, RoHS 2.5" SATA SSD, 064GB MLC, RoHS |
| mSATA | 638-712803-100G 638-706405-110G 638-703206-100G 638-701605-130G 638-700805-120G 638-712803-100G 638-706405-110G 638-703206-100G | mSATA Card, 128GB MLC, RoHS mSATA Card, 64GB MLC, RoHS mSATA Card, 32GB MLC, RoHS mSATA Card, 16GB MLC, RoHS mSATA Card, 8GB MLC, RoHS mSATA Card, 128GB MLC, RoHS (wide temperature) mSATA Card, 64GB MLC, RoHS (wide temperature) mSATA Card, 32GB MLC, RoHS (wide temperature) |
| Wi-Fi | 761-110091-000G 612-110050-300G | Wi-Fi Kit, SparKLAN, WPEA-121N, w/IPX cable & antenna Wi-Fi module, SparKLAN, WPEA-252NI |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106013-000G 671-112005-100G | 60W: 12VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS 120W: 24VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS |
| Panel Mount Kits | 761-P15002-000G 761-P19003-000G 761-P15002-000G 761-P19003-000G 761-KS1851-000G 761-KS2150-000G | Panel Mount Kit for PMKS150 RoHS Panel Mount Kit for PMKS190 RoHS KSM150 Panel Mount Kit RoHS KSM170-AL / KSM190-AL Panel Mount Kit RoHS KSM185 Panel Mount Kit RoHS KSM215-AL Panel Mount Kit RoHS |
