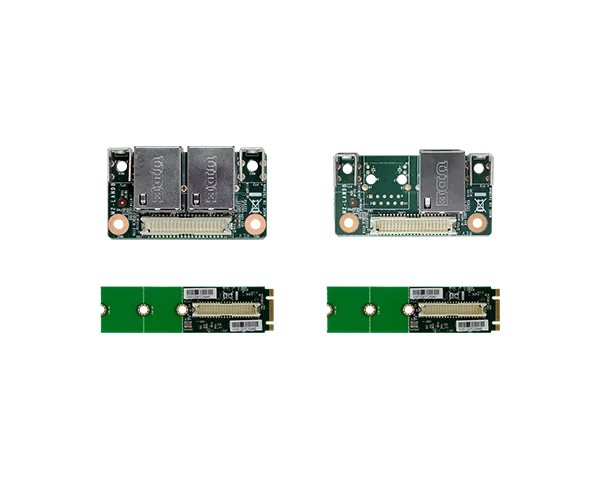

M.2-1LAN/2LAN
M.2-LAN Port Modules
- Port: 1 RJ45/2 RJ45
- Interface: PCIe x1
- Form Factor: M.2 B-M key 22mm x 80mm
Tanúsítványok
#M.2
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Port: 1 RJ45/2 RJ45
- Interface: PCIe x1
- Form Factor: M.2 B-M key 22mm x 80mm
Packing List
- Packing List
- • 1 M.2-LAN module • 1 M.2 LANDB module • 1 cable (Length: 250mm): A81-009348-016G
Specifications
- Features

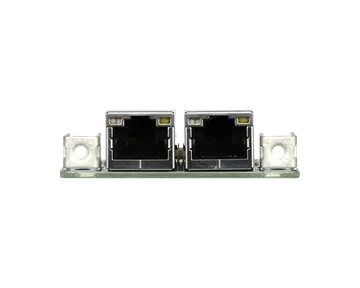

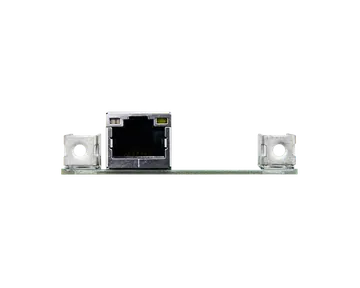

- ◆ I/O CONNECTORS • M.2-1LAN: 1 connector for 1 external LAN port • M.2-2LAN: 2 connectors for 2 external LAN ports ◆ Mounting • Terminal (Default) • Bracket (Optional) ◆ APPLIED MODELS: All DFI systems and boards with M.2 interface. ◆ TEMPERATURE: • Operating: 0°C to 70°C • Storage: -40oC to 85oC ◆ HUMIDITY: 5% to 90% ◆ DIMENSIONS: M.2 B-M key 22mm x 80mm
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M.2-1LAN | 770-M21LN2-100G | M.2-1LAN w/ I210-AT RJ45 Single Port M.2 MODULE CARD |
| M.2-2LAN | 770-M22LN2-100G | M.2-2LAN w/ I210-AT RJ45 Dual Port M.2 MODULE CARD |
| Item Name | Part Number | Description |
|---|---|---|
| BRACKET IO SLOT | A31-028957-000G |
