M2-CAN2

A hardware module that provides secure CAN2 device monitoring and management functions over the connected edge system.

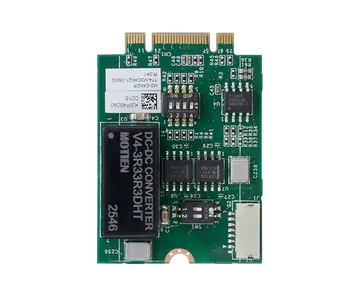

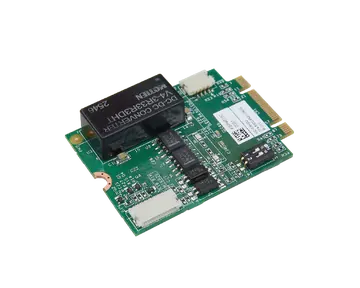

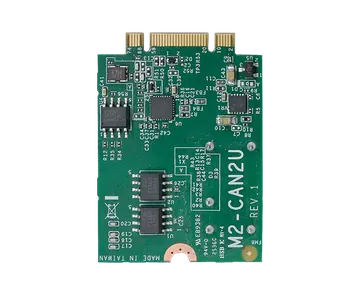

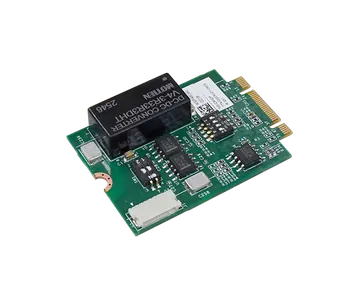

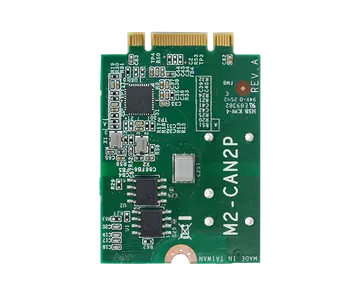

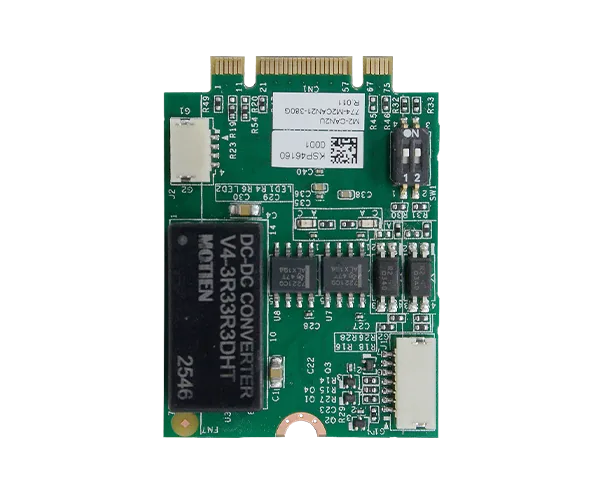

Dual Isolated CAN FD Module
Supports CAN Bus 2.0A/2.0B/FD (Arbitration bit rate up to 1Mbit/s, Data bit rate up to 5Mbit/s)
Form Factor: M.2 B+M Key 30mm x 42mm
Input Interface: PCIe or USB 2.0 (by different sku)
Termination resistor enabled/disabled by switch
Compliant with ISO 11898-1:2015 (CAN FD), IEC 62368-1:2020/A11:2020 1KV HiPOT protection, EN61000-4-2 (ESD) Air-15KV, Contact-8KV
Support 1KV isolation of each channel
Operation Temperature -40°C to 85°C

KaphatóLaunched

RoHS Certification

CE Certification

FCC Certification

#RoHS Certification #CE Certification #FCC Certification

Főbb jellemzőkKey features

Dual Isolated CAN FD Module
Supports CAN Bus 2.0A/2.0B/FD (Arbitration bit rate up to 1Mbit/s, Data bit rate up to 5Mbit/s)
Form Factor: M.2 B+M Key 30mm x 42mm
Input Interface: PCIe or USB 2.0 (by different sku)
Termination resistor enabled/disabled by switch
Compliant with ISO 11898-1:2015 (CAN FD), IEC 62368-1:2020/A11:2020 1KV HiPOT protection, EN61000-4-2 (ESD) Air-15KV, Contact-8KV
Support 1KV isolation of each channel
Operation Temperature -40°C to 85°C

Ordering Information
Model Name	Part Number	Description
M2-CAN2P	770-M2CAN21-000G	M.2 B-M Key 3042 Dual CAN FD module , PCIe 1.1, Protocol J1939
M2-CAN2U	770-M2CAN21-100G	M.2 B-M Key 3042 Dual CAN FD module , USB 2.0, Protocol J1939
M2-CAN2P	770-M2CAN21-200G	M.2 B-M Key 3042 Dual CAN FD module , PCIe 1.1, Protocol CANopen
M2-CAN2U	770-M2CAN21-300G	M.2 B-M Key 3042 Dual CAN FD module , USB 2.0, Protocol CANopen
