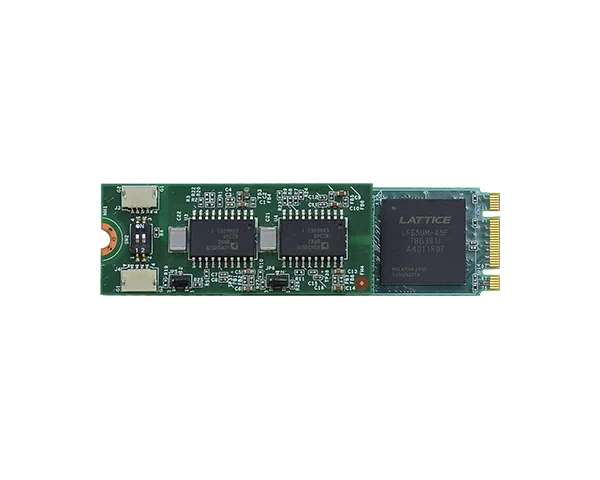

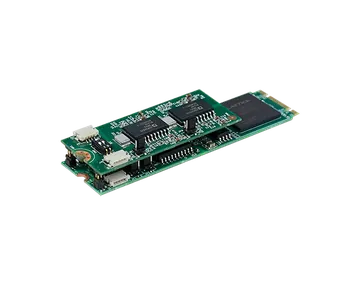

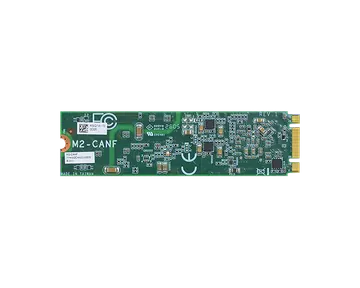

M2-CANF
Module board, Peripheral, CAN FD Module, CAN Bus 2.0A/2.0B/FD, M.2 B+M Key 2280, PCIe, ISO 11898-1: 2015, 1KV isolation, -40°C to 85°C
- Quad Isolated CAN FD Module
- Supports CAN Bus 2.0A/2.0B/FD
- Form Factor: M.2 B+M Key 2280
- Input Interface: PCIe
- Compliant with ISO 11898-1: 2015 (CAN FD)
- Support 1KV isolation of each channel
- Operation Temperature -40°C to 85°C
Főbb jellemzők
Tanúsítványok
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Quad Isolated CAN FD Module
- Supports CAN Bus 2.0A/2.0B/FD
- Form Factor: M.2 B+M Key 2280
- Input Interface: PCIe
- Compliant with ISO 11898-1: 2015 (CAN FD)
- Support 1KV isolation of each channel
- Operation Temperature -40°C to 85°C
Packing List
- Packing List
- • 1 x M2-CAN2F module • 2 x CAN cable (Length: 210mm), A81-009281-018G - • 1 x M2-CAN4F module • 4 x CAN cable (Length: 210mm), A81-009281-018G
Basic Function
- Basic Function
- ◆ Model name: M2-CANF ◆ Board Form Factor: M.2 2280 B+M Key ◆ Input: PCIe ◆ Output: Dual port by DB9 ◆ Physical: • CAN 2.0A, CAN 2.0B, CAN FD • Arbitration bit rate up to 1Mbit/s • Data bit rate up to 12Mbit/s ◆ Protocol: SAE J1939, CANopen ◆ Dimension: 22 x 80 mm ◆ Temperature: • Op. temp: -40 to 85℃ • Storage temp.: -40 to 85℃ ◆ Certifications: • 1.5 KV isolation of each channel • Complies with IEC 62368-1:2020/A11:2020, HiPOT, 1 kV • Complies with EN 61000-4-2, ESD, Air-15kV, Contact-8kV • Complies with EN 61000-4-5, Surge, 2.5KV
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M2-CAN2F | 770-M2CAN22-000G | M2-CAN2F, M.2 B+M Key 2280, PCIe, Dual CAN Bus Module Card |
| M2-CAN4F | 770-M2CAN41-000G | M2-CAN4F, M.2 B+M Key 2280, PCIe, Quad CAN Bus Module Card |
