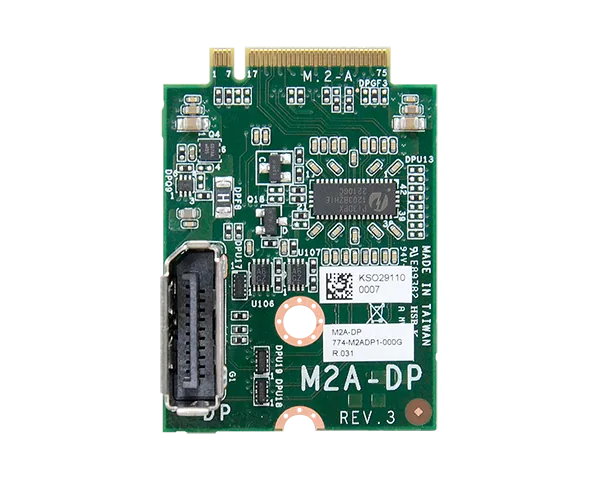

M2A-DP
DFI M.2 A key DP-to-Internal DP Module Boards
- CHIP: N/A
- PORT: M.2 A Key
- INTERFACE: DP++
- DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
- Module Boards
- ONLY FOR DFI MiniITX
#M.2
#DP
Főbb jellemzőkKey features
- CHIP: N/A
- PORT: M.2 A Key
- INTERFACE: DP++
- DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
- Module Boards
- ONLY FOR DFI MiniITX
Specifications
- Features
- • CHIP: N/A • FEATURES: DP++: Resolution up to 4096x2304 @ 60Hz • I/O PORTS: 1 DP++ port • APPLIED MODEL: - RPP171/RPP173 - RPS100 - ADN171/ADN173 • TEMPERATURE: - Operating: -40°C to 85°C - Storage: -40°C to 85°C • HUMIDITY: 5% to 90% • DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M2A-DP | 770-M2ADP1-000G | M2A-DP: DFI M.2 A key DP-to-Internal DP Module |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
