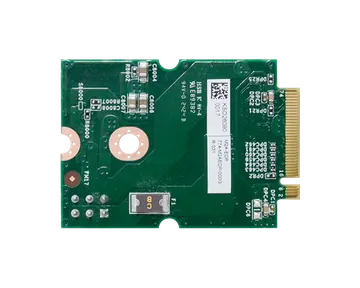

M2A-eDP/LVDS
DFI M.2 A key DP-to-eDP/LVDS Display Module Boards
- CHIP: PTN3460
- PORT: M.2 A Key
- INTERFACE: eDP/LVDS
- DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
- Module Boards
- ONLY FOR DFI MiniITX
#LVDS
#eDP
#M.2
Főbb jellemzőkKey features
- CHIP: PTN3460
- PORT: M.2 A Key
- INTERFACE: eDP/LVDS
- DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
- Module Boards
- ONLY FOR DFI MiniITX
Specifications
- Features
- • CHIP: PTN3460 • FEATURES: - LVDS: Resolution up to 1920x1200 @ 60Hz - eDP: Resolution up to 4096x2160 @ 60Hz • I/O PORTS: 1 eDP/LVDS port • APPLIED MODEL: - RPP171/RPP173 - RPS100 - ADN171/ADN173 - ASL171/ASL173 - HPT171/HPT173 - ARH171/ARH173 • TEMPERATURE: - Operating: -40°C to 85°C - Storage: -40°C to 85°C • HUMIDITY: 5% to 90% • DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|

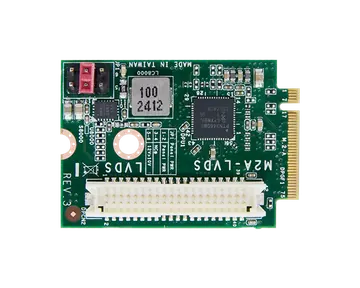

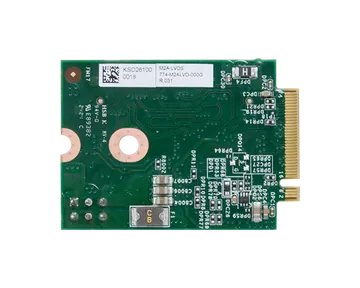

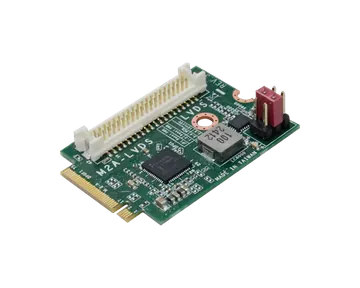

| M2A-LVDS | 770-M2ALVD-000G | DFI M.2 A key DP-to-LVDS Display Module |

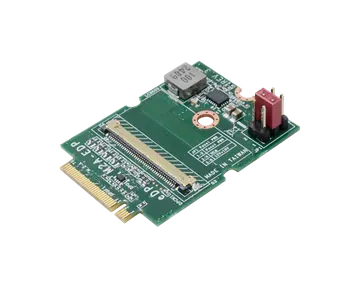

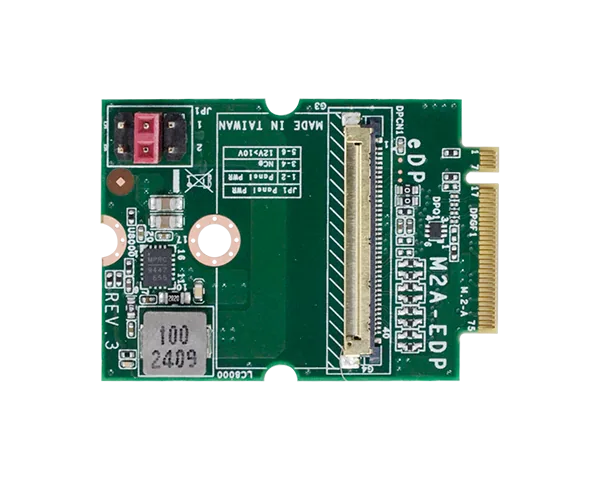

| M2A-EDP | 770-M2AEDP-000G | DFI M.2 A key DP-to-EDP Display Module |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
