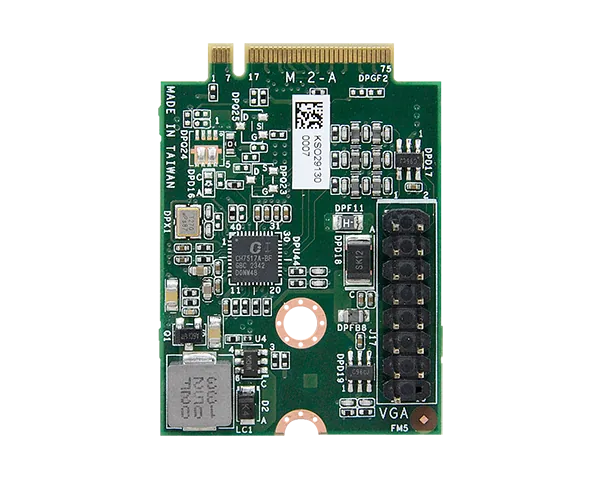

M2A-VGA
DFI M.2 A key DP-to-VGA Internal Module Boards
- CHIP: CH7517
- PORT: M.2 A Key
- INTERFACE: VGA
- DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
- Module Boards
- ONLY FOR DFI MiniITX
#M.2
#VGA
Főbb jellemzőkKey features
- CHIP: CH7517
- PORT: M.2 A Key
- INTERFACE: VGA
- DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
- Module Boards
- ONLY FOR DFI MiniITX
Specifications
- Features
- • CHIP: CH7517 • FEATURES: VGA: Resolution up to 1920x1080 @ 60Hz • I/O PORTS: 1 VGA port • APPLIED MODEL: - RPP171/RPP173 - RPS100 - ADN171/ADN173 • TEMPERATURE: - Operating: -40°C to 85°C - Storage: -40°C to 85°C • HUMIDITY: 5% to 90% • DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M2A-VGA | 774-M2AVGA-000G | M2A-VGA: DFI M.2 A key DP-to-VGA Internal Module |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
