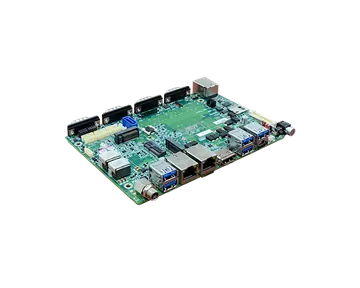

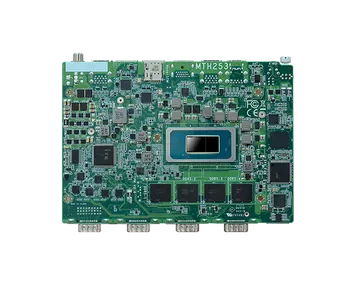

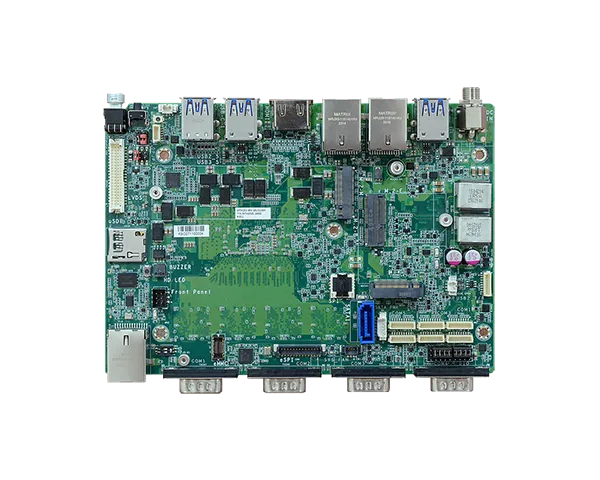

MTH253
4" SBC, Intel® Core™ Ultra Processor, LPDDR5 memory down, 1 HDMI, 1 LVDS, 1 USB-C DP Alt. mode, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 2 2.5GbE, 1 GbE, 4 USB 3.2, 1 USB-C, 5 COM, 1 COM/DIO, -5 to 65°C
- Intel® Core™ Ultra Processor
- On Board OOB built-in (Opt.)
- LPDDR5x-6400 memory down
- Triple Displays: 1 HDMI, 1 dual channel LVDS, 1 Type-C DP Alt. Mode
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 2 Intel 2.5GbE, 1 Intel GbE, 4 USB 3.2, 1 USB Type-C, 5 COM, 1 COM/DIO
- Support OOB
Főbb jellemzők
Tanúsítványok
#Windows 10
#9~36V DC-in
#LVDS
#Edge AI Computing
#USB Type-C DP
#LPDDR5
#M.2
#OOB
#Out-Of-Band (OOB)
#Intel® Core™ Ultra processors
#IoT
#Windows 11
#Intel
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ Ultra Processor
- On Board OOB built-in (Opt.)
- LPDDR5x-6400 memory down
- Triple Displays: 1 HDMI, 1 dual channel LVDS, 1 Type-C DP Alt. Mode
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 2 Intel 2.5GbE, 1 Intel GbE, 4 USB 3.2, 1 USB Type-C, 5 COM, 1 COM/DIO
- Support OOB
System
- Processor
- Intel® Core™ Ultra 7/5 Processors, TDP up to 28W Intel® Core™ Ultra 7 165H, 16C, 24M Cache, 1.4GHz (5.0GHz) Intel® Core™ Ultra 5 135H, 14C, 18M Cache, 1.7GHz (4.6GHz) Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.8GHz) Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz)
- Memory
- Dual Channel LPDDR5/x 6400MHz memory down Up to 32GB
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® Arc™ Graphics
- Feature
- OpenGL 4.6, Direct X 12.2, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9,AV1, AVC
- Display
- 1 x HDMI 1.4b 1 x LVDS 1 x USB-C DP Alt. mode HDMI: resolution up to 4096x2160@24Hz LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz DP: resolution up to 4096x2304@60Hz
- Triple Displays
- HDMI + LVDS + USB-C DP Alt. mode
Expansion
- Interface
- 1 x M.2 M key 2280 (PCIe Gen4 x4) 1 x M.2 B key 3052 (USB 3.0/2.0, PCIe x1, SATA), 1 x SIM slot for 4G/5G 1 x M.2 E key 2230 (USB 2.0/PCIe x1)
Audio
- Audio Codec
- N/A
Ethernet
- Controller
- 2 x Intel® I226V (10/100/1000/2500Mbps)

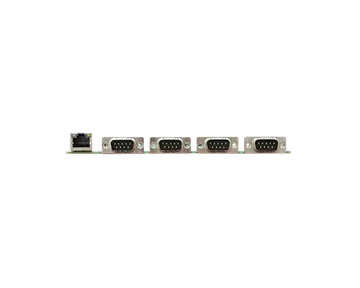

Front I/O
- Ethernet
- 1 x GbE (RJ-45), Intel® i210AT (10/100/1000Mbps) (support OOB)
- Serial
- COM 1: RS-232/422/485 COM 2/3: RS-232 COM 4: RS-232/422/485 or 8-bit DIO by jumper setting

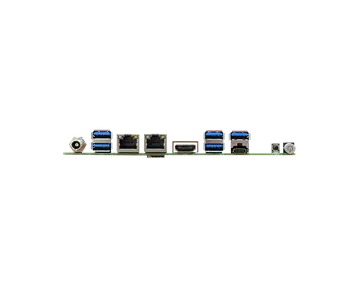

Rear I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- USB
- 5 x USB 3.2 or 4 x USB 3.2 + 1 x USB 2.0 (by BIOS setting) 1 x USB Type C
- Display
- 1 x HDMI 1 x USB-C DP Alt. Mode
- Buttons
- 1 x Power Button 1 x Reset Button
Internal I/O
- Serial
- 2 x RS-232 (1.0mm pitch)
- USB
- 1 x USB 2.0 (1.0mm pitch)
- SATA
- 1 x SATA 3.0
- Fan
- 1 x Smart FAN
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- 9~36V DC
- Connector
- Right Angle Connector (4-pin) DC-in Jack (available upon request)
- RTC Battery
- CR2032 Coin Cell (Cable type)
OS Support
- Microsoft
- Windows 11 & 10 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- 4" SBC Form Factor 165mm (6.49") x 115mm (4.53")
- Height
- PCB: 1.6mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA
Packing List
- Packing List
- • 1 MTH253 board • 1 Heatsink for 15W CPU or 1 Cooler for 28W CPU, TBD
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| MTH253-BN-32U7165H | 770-MTH2531-000G | Intel® Core™ Ultra 7 165H, 16 cores, 28W, 32GB memory down, HDMI + LVDS + USB-C DP, 2 2.5GbE, 1 GbE, 6 COM, 5 USB 3.2, 9~36 VDC, -5~65°C |
| MTH253-BN-16U5155U | 770-MTH2531-100G | Intel® Core™ Ultra 7 155U, 12 cores, 15W, 16GB memory down, HDMI + LVDS + USB-C DP, 2 2.5GbE, 1 GbE, 6 COM, 5 USB 3.2, 9~36 VDC, -5~65°C |
| MTH253-BN-16U5135H | 770-MTH2531-200G | Intel® Core™ Ultra 5 135H, 14 cores, 28W, 16GB memory down, HDMI + LVDS + USB-C DP, 2 2.5GbE, 1 GbE, 6 COM, 5 USB 3.2, 9~36 VDC, -5~65°C |
| MTH253-BN-16U5125U | 770-MTH2531-300G | Intel® Core™ Ultra 5 125U, 12 cores, 15W, 16GB memory down, HDMI + LVDS + USB-C DP, 2 2.5GbE, 1 GbE, 6 COM, 5 USB 3.2, 9~36 VDC, -5~65°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat spreader | TBD |
