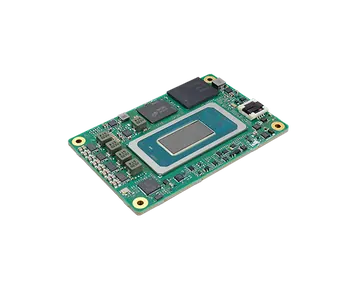

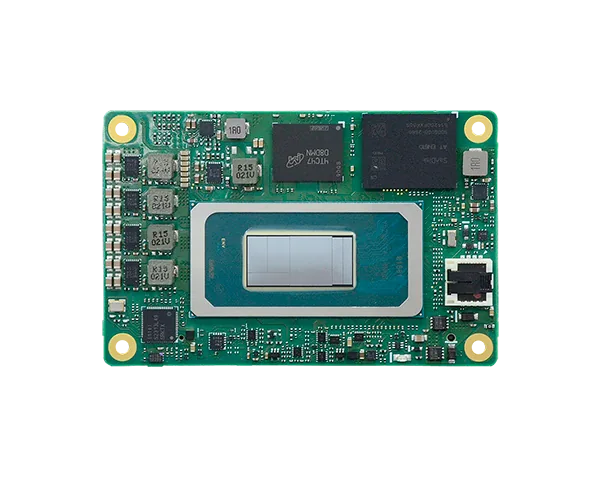

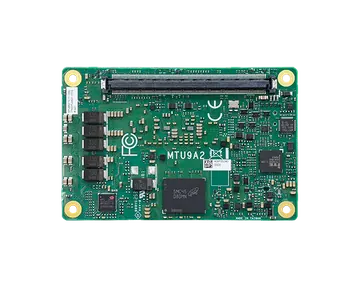

MTU9A2
COM Express Type 10, Intel Core Ultra Processors, LPDDR5, 1 DDI, 1 eDP, 4 PCIe x1, 1 I2C, 1 SMBus, 1 eSPI, 2 UART, 1 Intel 2.5GbE, 2 USB 3.2, 8 USB 2.0, 2 SATA 3.0, -40 to 85°C
- Intel® Core™ Ultra Processor (Meteor Lake: U-series)
- Single Channel LPDDR5 7467MHz memory down up to 32GB
- Dual Displays: 1 DDI + 1 eDP
- Supports 4K / 2K resolution
- Multiple Expansion: 4 PCIe x1, 1 I2C, 1 SMBus, 1 eSPI, 2 UART
- Rich I/O: 1 Intel 2.5GbE, 2 USB 3.2, 8 USB 2.0, 2 SATA 3.0
Főbb jellemzők
Tanúsítványok
#Windows 10
#Edge AI Computing
#eDP
#LPDDR5
#SMBus
#I2C
#Slim Bootloader
#Fast Resume & Low Power Standby
#Intel® Core™ Ultra processors
#Windows 11
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ Ultra Processor (Meteor Lake: U-series)
- Single Channel LPDDR5 7467MHz memory down up to 32GB
- Dual Displays: 1 DDI + 1 eDP
- Supports 4K / 2K resolution
- Multiple Expansion: 4 PCIe x1, 1 I2C, 1 SMBus, 1 eSPI, 2 UART
- Rich I/O: 1 Intel 2.5GbE, 2 USB 3.2, 8 USB 2.0, 2 SATA 3.0
System
- Processor
- Intel Core Ultra U-series processors (Code Name : Meteor Lake U) Intel Core Ultra 7 Processor 165U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12MB cache,15W) Intel Core Ultra 7 Processor 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12MB cache,15W) Intel Core Ultra 5 Processor 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12MB cache,15W)
- Memory
- LPDDR5 up to 32GB Dual Channel LPDDR5 7467MHz 8GB supported by project basis. In-band ECC (IBECC) Supported by Ubuntu
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD
- Feature
- DX12, Open GL 4.6, Vulkan 1.2 (Windows) Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux) HW Decode : 4K60 8b 4:2:0 AVC HW Encode : 4K60 10b 4:4:4 HEVC/VP9/SCC 4K60 8b 4:2:0 AVC
- Display
- 1 x DDI 1 x eDP eDP: resolution up to 4096x2160 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2160 @ 60Hz, 3840x2160 @60Hz
- Dual Displays
- DDI + eDP
Expansion
- Interface
- 4 x PCIe x1 (Gen 3) 1 x I2C 1 x SMBus 1 x eSPI 1 x GSPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I226-IT (10/100/1000Mbps/2.5Gbps)
I/O
- USB
- 2 x USB 3.2 Gen2 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO
- NVMe SSD
- 1 x 128GB/256GB/512GB/1024GB onboard NVME SSD (available upon request)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- 8.5V~20V, 5VSB, VCC_RTC (ATX mode) 8.5V~20V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit Windows 11 Linux
Environment
- Temperature
- Operating: -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.3") x 55mm (2.16")
- Compliance
- PICMG COM Express® R3.1, Type 10
Standards and Certifications
- Certifications
- CE, FCC, UKCA, RoHS
Packing List
- Packing List
- · Cooler, A71-108310-A00G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| MTU9A2-TC30-165U | 770-MTU9A21-000G | Intel® Core Ultra 7 Processor 165U, 10 Cores, 15W, 32GB LPDDR5, eDP, TPM 2.0, Thermal Cooler, Operating Temp.: -40~85°C |
| MTU9A2-TC10-155U | 770-MTU9A21-100G | Intel® Core Ultra 7 Processor 155U, 10 Cores, 15W, 16GB LPDDR5, eDP, TPM 2.0, Thermal Cooler, Operating Temp.: -40~85°C |
| MTU9A2-TC10-125U | 770-MTU9A21-300G | Intel® Core Ultra 5 Processor 125U, 10 Cores, 15W, 16GB LPDDR5, eDP, TPM 2.0, Thermal Cooler, Operating Temp.: -40~85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heatspreader | TBD | |
| COM335 Carrier Board Kit | 770-CM3351-000G |
