PCSF51

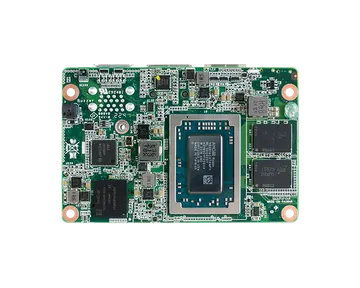

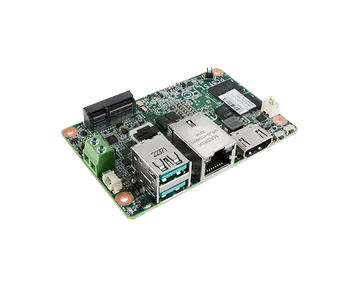

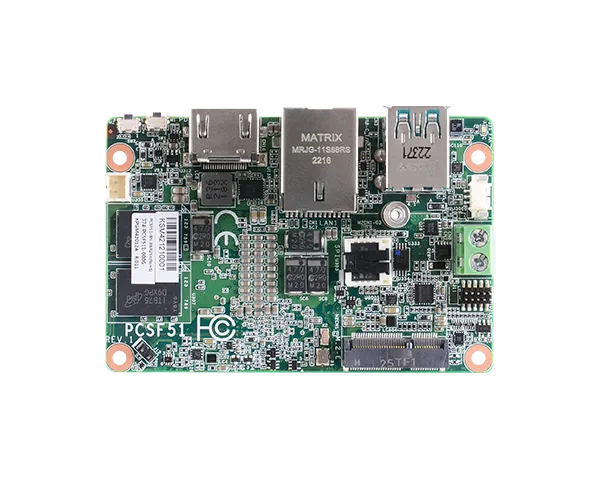

We offer Ryzen™ SBC (single board computer) PCSF51, a 1.8” industrial Raspberry pi powered by AMD® R2000 Picasso series for your small motherboard demands.
- AMD Ryzen™ Embedded R2000 Series - Picasso
- Small form factor 1.8" SBC for space-limited applications
- Single Channel DDR4 Memory Down up to 4GB/8GB
- HDMI 1.4 resolution supports up to 4096 x 2160 @ 24Hz
- Storage up to 128GB: eMMC 32GB/ 64GB/ 128GB
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#AMD Ryzen™ Embedded R2000 Series
#IoT
#AMD
#Industrial Specialized Pi
#Fanless Design
#Compact Size
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#12V DC-in
#DDR4
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- AMD Ryzen™ Embedded R2000 Series - Picasso
- Small form factor 1.8" SBC for space-limited applications
- Single Channel DDR4 Memory Down up to 4GB/8GB
- HDMI 1.4 resolution supports up to 4096 x 2160 @ 24Hz
- Storage up to 128GB: eMMC 32GB/ 64GB/ 128GB
System
- Processor
- AMD® Ryzen™ Embedded R2514, Quad Core, 2MB Cache, 8 CU, 2.1GHz AMD® Ryzen™ Embedded R2314, Quad Core, 2MB Cache, 6 CU, 2.1GHz AMD® Ryzen™ Embedded R2312, Dual Core, 1MB Cache 3 CU, 2.7GHz 12W support
- Memory
- DDR4 Memory Down up to 4GB/8GB Single Channel DDR4-2667 (R2312 with DDR4-2400)
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- AMD Vega GPU with up to 8 computing units
- Feature
- H.265 decode/encode support, VP9 decode
- Display
- 1 x HDMI HDMI 1.4: resolution up to 4096x2160 @ 24Hz
Storage
- eMMC
- eMMC 5.0 : 1 x 32GB/64GB/128GB eMMC
Expansion
- Interface
- 1 x M.2 E key (PCIe x1 / USB 2)
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps)

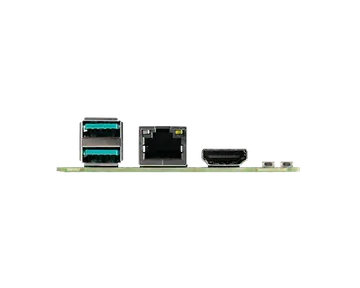

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- USB
- 2 x Type A USB 3.1 Gen 2
- Display
- 1 x HDMI (HDMI 1.4)
Internal I/O
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- Software Reset, Programmable via Software from 1 to 655,535 Seconds
Security
- TPM
- fTPM 2.0
Power
- Type
- Single 12V +/-5% DC
- Connector
- 2-pin Terminal Block
- Consumption
- Typical: 12V @ 0.78A (9.36Watt) Max.: 12V @ 1.62A (19.44Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit
- Linux
- Linux (Kernel 5.4) Ubuntu 20.04 LTS
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 841,810 hrs @ 25°C; 642,344 hrs @ 45°C; 482,909 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 1.8" SBC Form Factor 84mm (3.31") x 55mm (2.17")
- Height
- PCB: 1.60mm Top Side: TBD, Bottom Side: TBD
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 PCSF51 board 1 Heat spreader (Height: 7 mm) A71-808349-000G 1 Screw of M.2 card
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| PCSF51-BN-86R254 | 770-PCSF511-000G | AMD® Ryzen™ Embedded R2514, DDR4 8 GB on board, eMMC 64GB, 1 HDMI, 1 LAN, 2 USB 3.1 Gen2, 12 VDC, Fanless, 0 to 60°C |
| PCSF51-BN-86R234 | 770-PCSF511-100G | AMD® Ryzen™ Embedded R2314, DDR4 8 GB on board, eMMC 64GB, 1 HDMI, 1 LAN, 2 USB 3.1 Gen2, 12 VDC, Fanless, 0 to 60°C |
| PCSF51-BN-46R232 | 770-PCSF511-200G | AMD® Ryzen™ Embedded R2312, DDR4 4 GB on board, eMMC 64GB, 1 HDMI, 1 LAN, 2 USB 3.1 Gen2, 12 VDC, Fanless, 0 to 60°C |
| PCSF51-EN-46R232 | 770-PCSF511-400G | AMD® Ryzen™ Embedded R2312, DDR4 4 GB on board, eMMC 64GB, 1 HDMI, 1 LAN, 2 USB 3.1 Gen2, 12 VDC, Fanless, -20 to 70°C |
| Item Name | Part Number | Description |
|---|---|---|
| 2-pole terminal to DC Jack cable | A81-004013-000G | |
| Power adapter | 671-106012-000G | 60W, 12V, DC jack |
| DIO cable | A81-009203-018G | |
| Heat sink for 0~60°C | A71-008179-000G |
