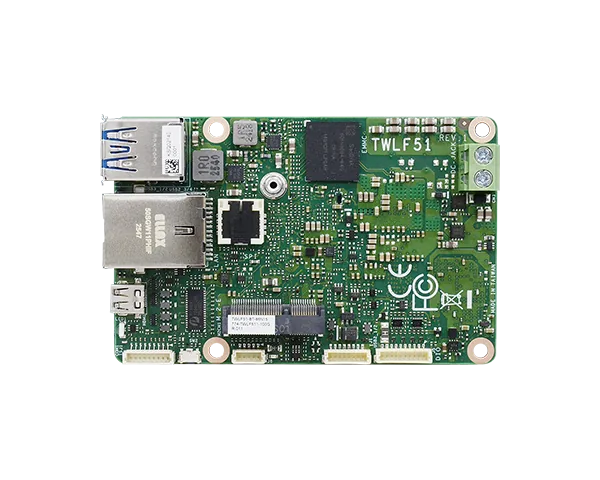

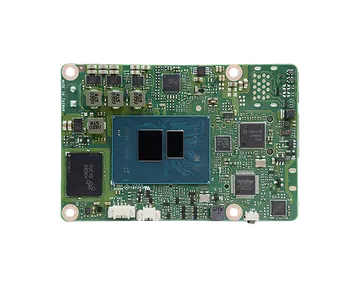

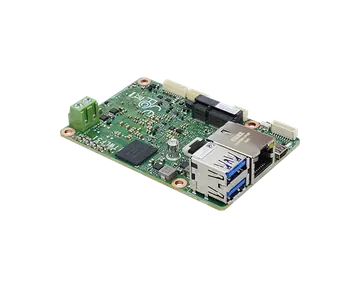

TWLF51
1.8" SBC, Intel® Processor N Series, Intel® Atom® Processor X Series, (Amston Lake/Twin Lake), LPDDR5, 1 M.2 E key, 1 I2C/SMBus, 1 Intel GbE, 1 COM, 2 USB 3.2 Gen2, 2 USB 2.0, 1 Micro HDMI, 1 DIO
- Intel® Atom® Processor X Series / N Series (Code Name : Amston Lake/Twin Lake/Alder Lake-N)
- Small form factor 1.8" SBC for space-limited applications
- Single Channel LPDDR5 memory down up to 8GB
- HDMI 2.0 resolution supports up to 4096x2160 @ 60Hz
- Expansions: 1 M.2 E key, 1 I2C/SMBus (Opt.)
- Rich I/O: 1 Intel GbE, 1 COM, 2 USB 3.2 Gen 2, 2 USB 2.0, 1 Micro HDMI, 1 DIO
Főbb jellemzők
Tanúsítványok
#Intel® Atom® Alder Lake-N Processors
#LPDDR5
#SMBus
#I2C
#M.2
#eMMC
#Intel Atom® Twin Lake Processors
#Intel Atom® Amston Lake Processors
#Windows 11
#Intel
#1G Ethernet
#Windows
#Linux
#HDMI
#12V DC-in
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® Processor X Series / N Series (Code Name : Amston Lake/Twin Lake/Alder Lake-N)
- Small form factor 1.8" SBC for space-limited applications
- Single Channel LPDDR5 memory down up to 8GB
- HDMI 2.0 resolution supports up to 4096x2160 @ 60Hz
- Expansions: 1 M.2 E key, 1 I2C/SMBus (Opt.)
- Rich I/O: 1 Intel GbE, 1 COM, 2 USB 3.2 Gen 2, 2 USB 2.0, 1 Micro HDMI, 1 DIO
System
- Processor
- Intel® Processor N series (Code Name: Twin Lake, Alder Lake-N) Intel® Core™ 3 Processor N355, 8 Cores, 1.8~3.9 GHz, 15W Intel® Processor N150, 4 Cores, 1.0~3.6 GHz, 6W Intel® Processor N100, 4 Cores, up to 3.40 GHz, 6W Intel Atom® Processor X Series (Code Name: Amston Lake) Intel Atom® Processor x7835RE, 8 Cores, 1.3~3.6 GHz, 12W Intel Atom® Processor x7433RE, 4 Cores, 1.5~3.4 GHz, 9W Intel Atom® Processor x7213RE, 2 Cores, 2.0~3.4 GHz, 9W Intel Atom® Processor x7211RE, 2 Cores, 1.0~3.2 GHz, 6W
- Memory
- LPDDR5 memory down up to 8GB Single-channel LPDDR5 4800MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- OpenGL 4.6, Direct X 12.1, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9, AVC
- Display
- 1 x Micro HDMI HDMI 2.0: resolution up to 4096x2160 @ 60Hz
Storage
- eMMC
- Default 64GB, up to 128GB
Expansion
- Interface
- 1 x M.2 E key 2230 (PCIe Gen3 x1/USB 2.0)
Ethernet
- Controller
- 1 x Intel® i210IT(10/100/1000Mbps)

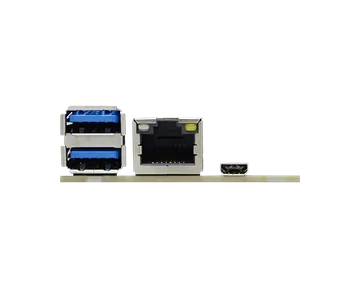

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- USB
- 2 x USB 3.2 Gen2, 10Gbps (Type-A)
- Display
- 1 x Micro HDMI (HDMI 2.0)
Internal I/O
- DIO
- 1 x 8-bit DIO
- I2C
- I2C/SMBus (Opt.)
Watchdog Timer
- Output & Interval
- Software Reset, Programmable via Software from 1 to 655,535 Seconds
Security
- TPM
- dTPM 2.0
Power
- Type
- Single 12V +/-5% DC
- Connector
- 2-pin Terminal Block
- Consumption
- Typical: x7835RE (w/Cooler), 12V @ 0.39A (4.68W) Max: x7835RE (w/Cooler), 12V @ 3.33A (39.96W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 11 IoT Enterprise
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C / -20 to 70°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- Model: TWLF51-ET-86X78 MTBF (hrs): 693,447 hrs @ 25°C; 510,973 hrs @ 45°C; 372,643 hrs @ 60°C; 291,272 hrs @70°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 1.8" SBC Form Factor 84mm (3.31") x 55mm (2.17
- Height
- PCB: 1.60mm Top Side: 16.35mm Bottom Side: 4.00mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • 1 TWLF51 board • Heat spreader (Height: 7.5mm), A71-808378-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| TWLF51-BT-86N35 | 770-TWLF511-000G | Intel® Core™ 3 N355, 8C, 15W, 8 GB LPDDR5, 64GB eMMC, Micro HDMI, 1 GbE, 1 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12V DC, Fanless, -5~65°C |
| TWLF51-BT-86N15 | 770-TWLF511-100G | Intel® N150, 4C, 6W, 8 GB LPDDR5, 64GB eMMC, Micro HDMI, 1 GbE, 1 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12V DC, Fanless, -5~65°C |
| TWLF51-EC-86X78 | 770-TWLF511-200G | Intel Atom® x7835RE, 8C, 12W, 8 GB LPDDR5, 64GB eMMC, Micro HDMI, 1 GbE, 1 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12V DC, Fanless, -20~70°C |
| TWLF51-EC-86X74 | 770-TWLF511-300G | Intel Atom® x7433RE, 4C, 9W, 8 GB LPDDR5, 64GB eMMC, Micro HDMI, 1 GbE, 1 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12V DC, Fanless, -20~70°C |
| TWLF51-EC-86X72 | 770-TWLF511-400G | Intel Atom® x7211RE, 2C, 6W, 8 GB LPDDR5, 64GB eMMC, Micro HDMI, 1 GbE, 1 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12V DC, Fanless, -20~70°C |
| TWLF51-EC-86X72(13RE) | 770-TWLF511-500G | Intel Atom® x7213RE, 2C, 9W, 8 GB LPDDR5, 64GB eMMC, Micro HDMI, 1 GbE, 1 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12V DC, Fanless, -20~70°C |
| TWLF51-BT-86N10 | 770-TWLF511-600G | Intel® N100, 4C, 6W, 8 GB LPDDR5, 64GB eMMC, Micro HDMI, 1 GbE, 1 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12V DC, Fanless, -5~65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 cable | A81-001201-018G | Length: 200mm, 2 ports |
| COM Port cable | A81-015130-018G | Length: 250mm, 1 port |
| DIO cable | A81-009715-018G | Length: 200mm |
| SMBus cable | A81-009716-018G | Length: 200mm |
| Power adapter | 671-106012-000G | 60W, 12V, DC jack |
| 2-pole terminal to DC Jack cable | A81-004013-000G | |
| Cooler | A71-108317-000G | (-20 to 70°C), (Height: 22mm) |
| Heatsink | A71-008376-000G | (-5 to 65°C), (Height: 29.36mm) |
