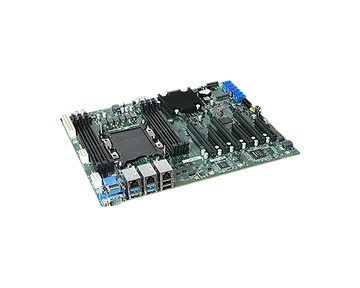

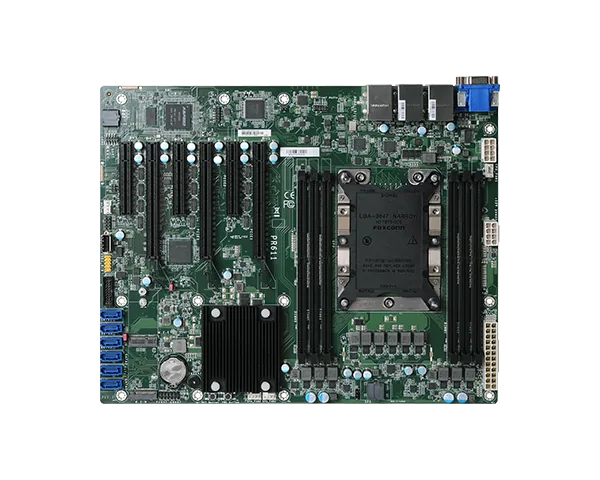

PR611-C621
ATX, 1st/2nd Gen Intel® Xeon® Scalable Family, 3 PCIe x16, 3 PCIe x8 (share w/ PCIe x16), 2 M.2, 2 Intel GbE, 1 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
- 1st/2nd Gen Intel® Xeon® Scalable Family
- 6 DDR4 ECC-RDIMM up to 384GB
- Multiple expansion: 3 PCIe x16, 3 PCIe x8 (shared w/ PCIe x16), 2 M.2
- Rich I/O: 2 Intel GbE, 1 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
- 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Server Boards
#IoT
#Intel
#PCIe x16
#Windows
#Linux
#VGA
#Multiple Expansion
#DDR4
#RoHS Certification
Főbb jellemzőkKey features
- 1st/2nd Gen Intel® Xeon® Scalable Family
- 6 DDR4 ECC-RDIMM up to 384GB
- Multiple expansion: 3 PCIe x16, 3 PCIe x8 (shared w/ PCIe x16), 2 M.2
- Rich I/O: 2 Intel GbE, 1 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
- 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)
System
- Processor
- 1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W: Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W 2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W: Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W
- Chipset
- Intel® C621 Chipset
- Memory
- 6 x 288-pin ECC-RDIMM up to 384GB Single Channel DDR4 up to 2933 MHZ Support Optane DC persistent memory module(DCPMM) in DIMM3 and DIMM6 (2nd Gen Xeon Scalable (62xx/52xx/ 4215) processors only)
- BIOS
- Insyde SPI 128Mbit
Graphics
- Display
- 1 x VGA (opt.)
- Single Display
- VGA (opt.)
Expansion
- Interface
- 3 x PCIe x16 (Gen 3) 3 x PCIe x8 (Gen 3)(share w/ PCIe x16) 1 x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe) 1 x M.2 E key 2230 (USB 2.0/PCIe Gen3 x2) *Note: PCIe x8 slot is OPEN edge.
Audio
- Audio Codec
- ALC887
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps) IPMI: RTL8211F (opt.)
Rear I/O
- Ethernet
- 2 x GbE (RJ-45) 1 x dedicated IPMI LAN (opt.)
- Serial
- 1 x RS-232 (DB-9)
- USB
- 4x USB 3.1 Gen1 2x USB 2.0 stack (opt.w/ RJ45+USB2.0 stack)
- Display
- 1 x VGA (opt.)
Internal I/O
- USB
- 2x USB 2.0 header (2x USB 2.0) 1x USB 2.0 vertical Type A 1x USB 3.1 Gen1 header (2x USB 3.1 Gen1)
- SATA
- 6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 sec/Min
Security
- TPM
- TPM 2.0 (opt.)
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Idle: Xeon Gold 5218 - 3.3V @ 0.06A (0.198Watt); 5V @ 1.75A (8.75Watt); 12V @ 1.67A (20.04Watt) Max.: Xeon Gold 5218 - 3.3V @ 0.08A (0.264Watt); 5V @ 2.94A (14.7Watt); 12V @ 11.53A (138.36Watt) Idle: Xeon Platinum 8276M - 3.3V @ 0.03A (0.099Watt); 5V @ 1.65A (8.25Watt); 12V @ 1.63A (19.56Watt) Max.: Xeon Platinum 8276M - 3.3V @ 0.05A (0.165Watt); 5V @ 2.65A (13.25Watt); 12V @ 18.43A (221.16Watt)
- Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Windows 10 IoT Enterprise LTSB RS5(64-bit) Windows Server 2019 Windows Server 2016 Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH, Non-condensing Storage: 5 to 90% RH, Non-condensing
- MTBF
- PR611-C621: 558,025 hrs @ 25°C; 339,879 hrs @ 45°C ; 224,136 hrs @ 60°C PR611-C621 w/ IPMI-Mgnt: 510,709 hrs @ 25°C; 306,113 hrs @ 45°C ; 200,130 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 37.34mm
Packing List
- Packing List
- 1 PR611-C621 motherboard 1 I/O shield A49-PR6110-020G 2 M.2 screw A32-112016-041G 1 CPU Clip 348-436471-100G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| PR611-C621DRI | 770-PR6111-000G | 2 LAN, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 1 VGA, 1 IPMI-Mgnt, -5 to 65°C |
| PR611-C621DR | 770-PR6111-100G | 2 LAN, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, -5 to 65°C |
| PR611-C621DRI | 770-PR6111-200G | 2 LAN, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 1 VGA, 1 IPMI-Mgnt, 1 TPM 2.0, -5 to 65°C |
| PR611-C621DR | 770-PR6111-300G | 2 LAN, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 1 TPM 2.0, -5 to 65°C |
| PR611-C621DR | 770-PR6111-400G | 2 LAN, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 1 VGA, 1 TPM 2.0, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350mm |
| Cooler | A71-101400-000G | Narrow ILM LGA 3647 |
| USB 3.1 Gen1 cable | A81-001052-023G | Length: 320mm |
| Serial ATA data cable | 332-553001-005G | Length: 500mm |
