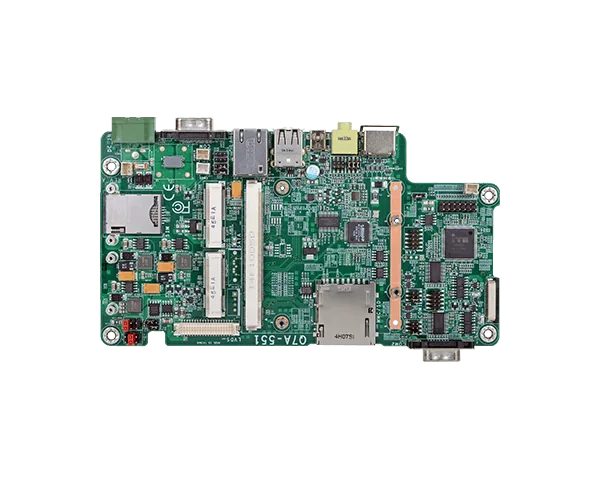

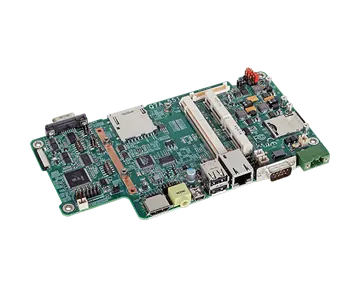

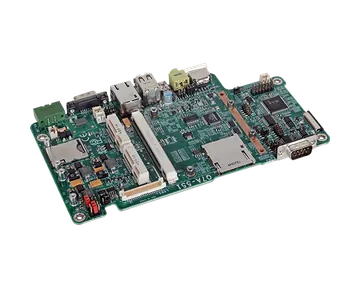

Q7A-551
Q7A-551, Carrier Board , designed with CAN-bus connector and 9~36V wide-voltage DC-in jack which is ideal for automotive/Mail Order Fulfillment/Ecommerce Packaging Machine applications
- Qseven R1.2
- Supports Qseven modules
- Multiple displays: 1 LVDS, 1 HDMI
- Rich I/O: 1 GbE, 2 USB 2.0, 3 COM
- 190 x 102mm (7.48" x 4.02")
#MXM
#Mini PCIe
#HDMI
Főbb jellemzőkKey features
- Qseven R1.2
- Supports Qseven modules
- Multiple displays: 1 LVDS, 1 HDMI
- Rich I/O: 1 GbE, 2 USB 2.0, 3 COM
- 190 x 102mm (7.48" x 4.02")
Graphics
- Display
- 1 x HDMI 1 x LVDS
Expansion
- Interface
- 1 x Mini PCIe 1 x SIM Card Socket
Audio
- Interface
- I2S Audio

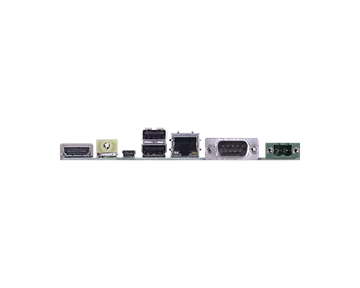

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- Serial
- 2 x RS232 Serial
- USB
- 2 x USB 2.0 1 x USB Client
- Display
- 1 HDMI
- Audio
- 1 x Line-out/Mic-in jack
Internal I/O
- Serial
- 1 x MXM Connector 1 x RS232/422/485 serial 1 x FlexCAN Connector
- Display
- 1 x LVDS LCD Panel Connector
- Audio
- 2 x 1W audio amplifier connectors (left and right sides)
- DIO
- 1 x 12Bit DIO
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Supply
- 12~36V DC-in jack
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 667310 hrs @ 25°C; 395912 hrs @ 45°C; 254015 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 190mm (7.48") x 102mm (4.02")
Packing List
- Packing List
- 1 Q7A-551 board 1 Power switch with cable: A81-006006-001G 1 Speaker 1.5W with cable: 293-120012-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| COM port cable | 332-753040-000G | |
| Power adapter (60W, 19V, Level6) | 671-106011-000G |
