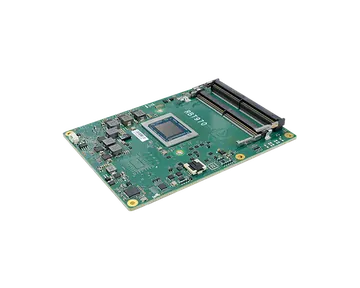

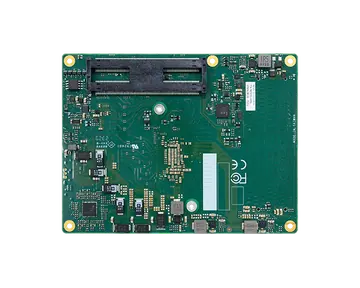

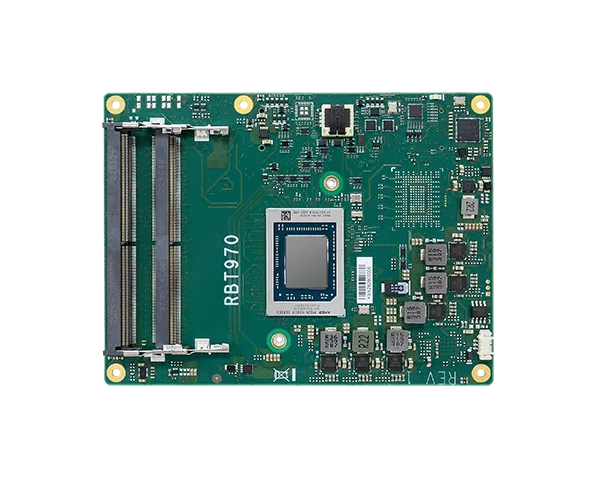

RBT970
COM Express Type 7, AMD Ryzen™ Embedded V3000 Series, DDR5, 1 PCIe x14, 1 SMBus, 1 I2C, 1 LPC, UART, 4 USB 3.2, 4 USB 2.0, 2 SATA 3.0, 2 10GBASE-KR, 1 2.5GbE
- AMD Ryzen™ Embedded V3000 Series processors
- Dual DDR5 SODIMM 4800MHz up to 64GB
- Support extended operating temperature: -40 to 85°C
- Support 2 x 10G Ethernet and 1 x 2.5G Ethernet
- Multiple Expansion: 1 PCIe x14 (Gen 4), 1 SMBus, 1 I2C, 1 LPC, UART
- Rich I/O: 4 USB 3.2, 4 USB 2.0, 2 SATA 3.0
Főbb jellemzők
Tanúsítványok
#DDR5
#AMD Ryzen™ Embedded V3000 Series
#SMBus
#I2C
#LPC
#UART
#Fanless Design
#10G Ethernet
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- AMD Ryzen™ Embedded V3000 Series processors
- Dual DDR5 SODIMM 4800MHz up to 64GB
- Support extended operating temperature: -40 to 85°C
- Support 2 x 10G Ethernet and 1 x 2.5G Ethernet
- Multiple Expansion: 1 PCIe x14 (Gen 4), 1 SMBus, 1 I2C, 1 LPC, UART
- Rich I/O: 4 USB 3.2, 4 USB 2.0, 2 SATA 3.0
System
- Processor
- AMD® Embedded Ryzen™ V3000 CPU Family V3C48, 45W, 8C/16T, Base Freq, 3.3GHz V3C44, 45W, 4C/8T, Base Freq, 3.5GHz V3C18, 15W, 8C/16T, Base Freq, 1.9GHz V3C16, 15W, 6C/12T, Base Freq, 2.0GHz V3C14, 15W, 4C/8T, Base Freq, 2.3GHz V3C18I, 15W, 8C/16T, Base Freq, 1.9GHz, Industrial Temp
- Memory
- Two 262-Pin SODIMM up to 64GB Dual Channel DDR5 4800MHz (Memory max speed depends on CPU SKU)
- BIOS
- AMI SPI 256Mbit
Expansion
- Interface
- 1 x SPI 1 x I2C 1 x SMBus 2 x UART (TX/RX)
- PCIe
- Default: B1 : 1 PCIe x4 or 2 PCIe x2 or 4 PCIe x1 B2 : 1 PCIe x2 B3 : 1 PCIe x8 or 2 PCIe x4
Ethernet
- Controller
- Supports 2 x 10GBASE-KR Supports 1 x 2.5GbE and 1000/100/10 Mbit/s Ethernet connection
I/O
- USB
- 4 x USB 3.2 4 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO (4 in, 4 out)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 15 to 255 Seconds
Security
- TPM
- Available upon request
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- Linux
- Ubuntu 22.04.1 Kernel 6.1.
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM Express® Basic 95mm (3.74") x 125mm (4.9")
- Compliance
- PICMG COM Express® R3.1, Type 7
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- ‧ 1 RB970 board ‧ 1 Cooler (Height: 47.80 mm) －TBD (0 to 60°C) －TBD (-40 to 85°C)
Country of Origin
- Country of Origin
- Taiwan
