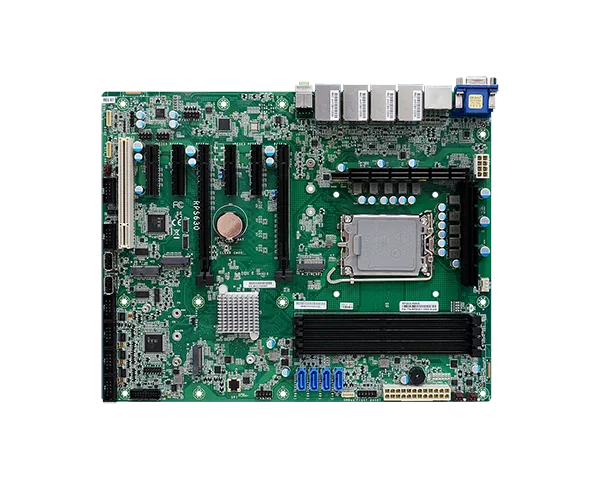

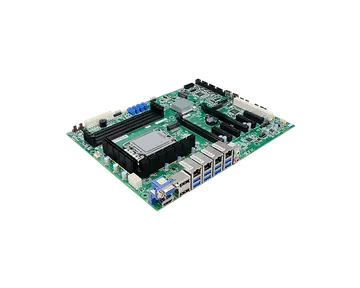

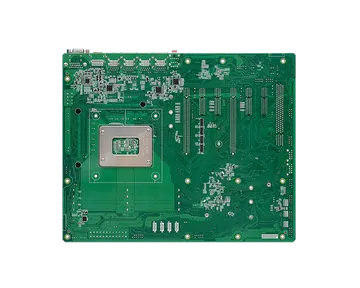

RPS630-R680E/Q670E
ATX, BTL-S/14th/13th/12th Gen Intel® Core™, 4 DDR5 UDIMM, 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key, 1 M.2 A Key, 1 VGA, 1 HDMI, 2 DP++, 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
- BTL-S/14th/13th/12th Gen Intel® Core Processors
- 4 DDR5 UDIMM up to 192GB
- Quad Displays: VGA, 2 DP++, HDMI
- Supports 4K resolution
- Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key, 1 M.2 A Key
- Rich I/O: 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
- Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
- Support M2A-OOB
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#DDR5
#13th Gen Intel® Core™ Processor
#Windows 10
#Edge AI Computing
#M2A-OOB
#Intel® Bartlett Lake-S Processors
#14th Gen Intel® Core™ Processor
#Windows 11
#Intel
#4K2K Display
#1G Ethernet
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#RoHS Certification
#UL Certification
#KC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- BTL-S/14th/13th/12th Gen Intel® Core Processors
- 4 DDR5 UDIMM up to 192GB
- Quad Displays: VGA, 2 DP++, HDMI
- Supports 4K resolution
- Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key, 1 M.2 A Key
- Rich I/O: 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
- Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
- Support M2A-OOB
System
- Processor
- Intel® Bartlett Lake-S P-Core Only LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ 9 273PQE (12 Cores, 36M Cache, up to 5.9 GHz); 125W Intel® Core™ 9 273PE (12 Cores, 36M Cache, up to 5.7 GHz); 65W Intel® Core™ 9 273PTE (12 Cores, 36M Cache, up to 5.5 GHz); 45W Intel® Core™ 7 253PQE (10 Cores, 33M Cache, up to 5.7 GHz); 125W Intel® Core™ 7 253PE (10 Cores, 33M Cache, up to 5.5 GHz); 65W Intel® Core™ 7 253PTE (10 Cores, 33M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 223PQE (8 Cores, 24M Cache, up to 5.5 GHz); 125W Intel® Core™ 5 223PE (8 Cores, 24M Cache, up to 5.4 GHz); 65W Intel® Core™ 5 223PTE (8 Cores, 24M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 213PE (8 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 213PTE (8 Cores, 24M Cache, up to 5.2 GHz); 45W Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W 14th Generation P-Core Only Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ i9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ i9-14901TE (8 Cores, 36M Cache, up to 5.5 GHz); 45W Intel® Core™ i7-14701E (8 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ i7-14701TE (8 Cores, 33M Cache, up to 5.2 GHz); 45W Intel® Core™ i5-14501E (6 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ i5-14501TE (6 Cores, 24M Cache, up to 5.1 GHz); 45W Intel® Core™ i5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W Intel® Core™ i5-14401TE (6 Cores, 24M Cache, up to 4.5 GHz); 45W 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 60W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- [RPS630-R680E] Intel® R680E Chipset [RPS630-Q670E] Intel® Q670E Chipset
- Memory
- [RPS630-R680E] Four 288-pin UDIMM up to 192GB (ECC/Non-ECC) [RPS630-R680E] Dual Channel DDR5 up to 4400 MHz [RPS630-R680E] *Speed support list follow User’s Manual [RPS630-Q670E] Four 288-pin UDIMM up to 192GB (Non-ECC) [RPS630-Q670E] Dual Channel DDR5 up to 4400 MHz [RPS630-Q670E] *Speed support list follow User’s Manual
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 2 x DP++ 1 x HDMI 2.0a VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @60Hz HDMI: resolution up to 4096x2160 @ 24Hz
- Quad Displays
- VGA + 2 x DP++ + HDMI
Expansion
- Interface
- 2 x PCIe x16 (Gen 4, 16 or 8+8) －Support PCIE1/PCIE4 : single at x16(PCIE1) －Support PCIE1/PCIE4 : dual at x8(PCIE1)/x8(PCIE4) －Support PCIE1 : Riser card x16 or x8/x8 selected by BOM change 3 x PCIe x4 (Gen 4, open edge) 1 x PCIe x4 (Gen 3, open edge, opt. share M.2-M2, function selected by BIOS.) 1 x PCI
- M.2
- [RPS630-R680E]1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wifi 6E) [RPS630-R680E]1 x M.2 A key for M2-OOB [RPS630-R680E]1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe, SATA) [RPS630-R680E]1 x M.2 2242/2260/2280 M key (default, PCIe x4 Gen3 NVMe share PCIe#6, function selected by BIOS.) [RPS630-Q670E]1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wifi 6E) [RPS630-Q670E]1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe, SATA) [RPS630-Q670E]1 x M.2 2242/2260/2280 M key (default, PCIe x4 Gen3 NVMe share PCIe#6, function selected by BIOS.)
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- [RPS630-R680E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) [RPS630-R680E] 1 x Intel® I210-AT (co-lay I226-V) [RPS630-R680E] 2 x Intel® I226-V [RPS630-Q670E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) [RPS630-Q670E] 1 x Intel® I226-V

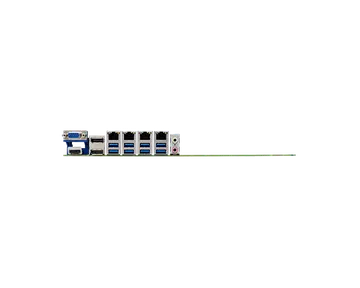

Rear I/O
- Ethernet
- [RPS630-R680E] 3 x 2.5GbE (RJ-45) [RPS630-R680E] 1 x 1GbE (RJ-45, opt. 2.5GbE) [RPS630-Q670E] 2 x 2.5GbE (RJ-45)
- USB
- 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1
- Display
- 1 x VGA 2 x DP++ 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt.)
Internal I/O
- Serial
- 2 x RS-232/422/485 4 x RS-232
- USB
- [RPS630-R680E] 2 x USB 3.2 Gen1 [RPS630-R680E] 2 x USB 2.0 Vertical Type A [RPS630-Q670E] 2 x USB 3.2 Gen1 [RPS630-Q670E] 1 x USB 2.0 Vertical Type A [RPS630-Q670E] 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
- Audio
- 1 x Front Audio 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- DIO
- 4-IN / 8-OUT DIO
- SMBus
- 1 x SMBus
- Other I/O
- 1 x eSPI
- PS/2
- 1 x PS/2 (2.54mm pitch)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM2.0
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i9-14900K: 3.3V @ 0.69A (2.28W); 5V @ 0.95A (4.75W); 12V @ 1.26A (15.12W) Max.: i9-14900K: 3.3V @ 1.2A (3.96W); 5V @ 3.6A (18W); 12V @ 29.02A (348.24W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 LTSC
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -20 to 70°C with RTC Battery; -40 to 85°C without RTC Battery
- Humidity
- Operating: 5 to 95% RH Storage: 5 to 95% RH
- MTBF
- [RPS630-R680E] 225,192 hrs @ 25°C; 146,216 hrs @ 40°C; 83,182 hrs @ 60°C; 63,337 hrs @ 70°C [RPS630-R680E] Calculation Model: Telcordia Issue 2 [RPS630-R680E] Environment: GB, GC - Ground Benign, Controlled [RPS630-Q670E] 208,538 hrs @ 25°C; 135,107 hrs @ 40°C; 76,715 hrs @ 60°C; 58,368 hrs @ 70°C [RPS630-Q670E] Calculation Model: Telcordia Issue 2 [RPS630-Q670E] Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 33.3mm, Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA, KC, UL
Packing List
- Packing List
- 1 RPS630 motherboard 1 COM port cables (Length: 300mm, 2 x COM ports) 1 Serial ATA data cable (Length: 500mm) 1 I/O shield 1 M.2 screw/standoff
Country of Origin
- Country of Origin
- Thailand
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RPS630-Q670E | 770-RPS6301-000G | 4 DDR5 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| RPS630-R680E | 770-RPS6301-100G | 4 DDR5 UDIMM, 3 2.5GbE, 1 1GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 2 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350/398mm |
| USB 3.2 Gen1 port cable | A81-001196-023G | Length: 320mm |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G | Length: 500mm, W/LOCK |
| Serial ATA data cable | A81-002128-017G | Length: 500mm, W/LOCK, 90D |
| Thermal solution | A71-101136-000G A71-101137-000G A71-101145-000G | For 35W, Height: 29.39mm For 65W, Height: 46mm For 95W/125W, Height: 110mm |
| DP to HDMI Dongle | 612-D2H13M-000G | |
| M.2-COM4 | 770-M2COM1-000G | M.2 serial port module |
| M.2-2LAN | 770-M22LN2-000G | M.2 LAN port module |
| M.2-2PSE | 770-M22PS2-000G | M.2 PSE module |
