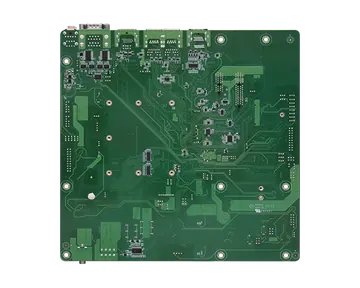

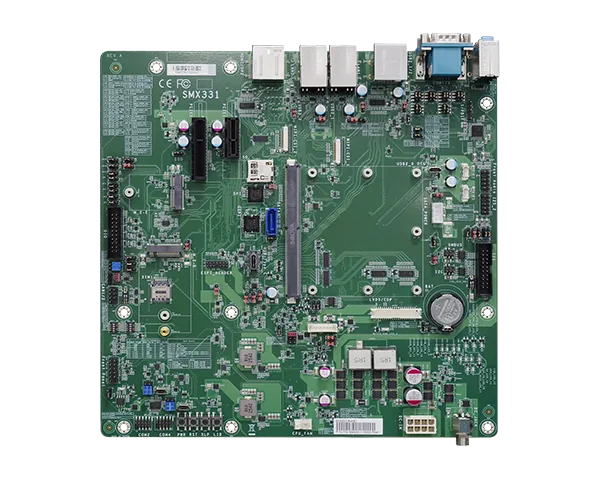

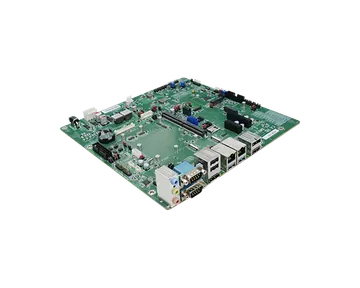

SMX331
microATX, SMARC® V2.2, HDMI, LVDS, DP, eDP, 1 PCIe x4, 1 PCex1, 1 M.2 E Key 2230, 1 M.2 B key 3042/52, 2 2.5 GbE, 2 USB 3.2 (Gen1), 2 USB 2.0
- SMARC® V2.2 Carrier Board, microATX Form Factor
- Multiple Expansion: 1 PCIe x4, 1 PCex1, 1 M.2 E Key 2230, 1 M.2 B key 3042/52
- Rich I/O: 2 2.5 GbE, 2 USB 3.2 (Gen1), 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#LVDS
#eDP
#PCIe
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- SMARC® V2.2 Carrier Board, microATX Form Factor
- Multiple Expansion: 1 PCIe x4, 1 PCex1, 1 M.2 E Key 2230, 1 M.2 B key 3042/52
- Rich I/O: 2 2.5 GbE, 2 USB 3.2 (Gen1), 2 USB 2.0
Graphics
- Display
- 1 x HDMI 1 x LVDS/eDP (eDP available upon request) 2 x DP
Expansion
- Interface
- 1 x PCIe x4 1 x PCIe x1 1 x M.2 E Key 2230 1 x M.2 B Key 3042/3052 1 x micro SD card
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR

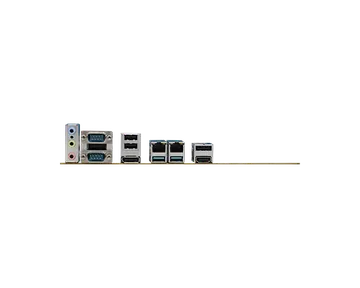

I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- Serial
- 2 x RS232
- USB
- 2 x USB 3.2 (Gen1) 2 x USB 2.0
- Display
- 2 x DP
- Audio
- 1 x Line-in 1 x Line-out 1 x Mic-in
Internal I/O
- Serial
- 2 x Serial Interface Connector (TX/RX)
- USB
- 2 x USB 2.0 (M.2 B Key & M.2 E Key support)
- Display
- 1 x eDP/LVDS LCD Connector 1 x LCD/Inverter Power
- Audio
- 1 x Audio (Line-out/Mic-in) 1 x S/PDIF
- SATA
- 1 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 14-bit DIO
- SMBus
- 1 x SMBus
- CANBus
- 2 x CAN bus
- I2C
- 1 x I2C
- Other I/O
- MIPI-CSI: 1 x 4-lanes MIPI-CSI + 1 x 2-lanes MIPI-CSI
- eSPI
- 1 x eSPI
- SPI
- 1 x SPI
Power
- Type
- 1 x 8-pin ATX power connector (12V DC_In) 9V-36V DC-in jack
- Connector
- 1 x 8-pin ATX power connector 1 x DC-in jack
- RTC Battery
- CR2032 Coin Cell
Environment
- Temperature
- Operating: -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- microATX Form Factor 244mm (9.6") x 244mm (9.6")
- Compliance
- SMARC V2.2
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- • 1 SMX331 board
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| SMX331 | 770-SMX3311-000G | 2 2.5GbE, 2 USB 3.2, 2 USB 2.0, ATX/AT Power, -40 to 85°C |
