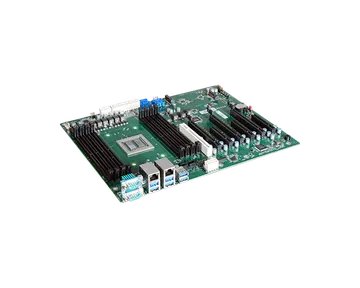

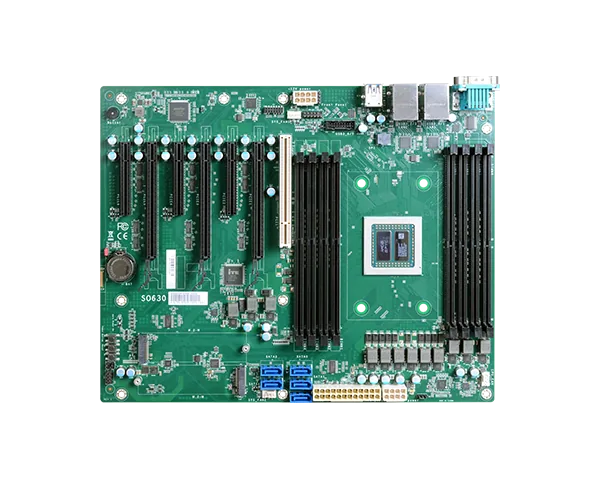

SO630
DFI's SO630 is ATX powered by AMD EPYC 3451/3351 Processors, support the Server-grade AI, Multiple Expansion for Graphic card. It brings flexible perfect for Automated Optical Inspection (AOI), Highprecision Measuring Machine, Highend Medical Imaging, and more. DFI SO630 support ATX, AMD® EPYC 3000 Series, 8 DDR4 RDIMM/UDIMM, 3 PCIe x16 (up to 6 PCIe x8), 1 PCI, 1 M.2 M Key (PCIe x4 NVMe), 1 M.2 M Key (SATA/PCIe x2 NVMe).
- Rich I/O: 2 COM, 8 USB 3.1 Gen1
- 8 DDR4 RDIMM/UDIMM up to 256GB
- Expansion: 3 PCIe x16 (up to 6 PCIe x8), 1 PCI, 1 M.2 M Key (PCIe x4 NVMe), 1 M.2 M Key (SATA/PCIe x2 NVMe)
- 10-Year CPU Life Cycle Support Until Q1' 31 (Based on AMD Roadmap)
Főbb jellemzők
#Server Boards
#AMD
#PCIe x16
#Windows
#Linux
#Multiple Expansion
#DDR4
#Legacy ISA/PCI Expansion Port
Főbb jellemzőkKey features
- Rich I/O: 2 COM, 8 USB 3.1 Gen1
- 8 DDR4 RDIMM/UDIMM up to 256GB
- Expansion: 3 PCIe x16 (up to 6 PCIe x8), 1 PCI, 1 M.2 M Key (PCIe x4 NVMe), 1 M.2 M Key (SATA/PCIe x2 NVMe)
- 10-Year CPU Life Cycle Support Until Q1' 31 (Based on AMD Roadmap)
System
- Processor
- AMD® EPYC™ Embedded 3451, 16 Core, 32 Threads, 2.14GHz (3GHz), 80-100W AMD® EPYC™ Embedded 3351, 12 Core, 24 Threads, 1.9GHz (3GHz), 60-80W
- Memory
- 8 DDR4 RDIMM/UDIMM up to 256GB
- BIOS
- Insyde
Expansion
- Interface
- 3 x PCIe x16 (up to 6 PCIe x8) 1 x PCI 1 x M.2 M Key (PCIe x4 NVMe) 1 x M.2 M Key (SATA/PCIe x2 NVMe)
Ethernet
- Controller
- 2 x Intel i210AT

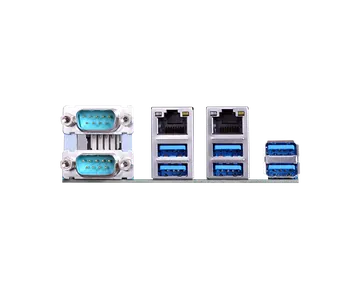

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9)
- USB
- 6 x USB 3.1 Gen1
Internal I/O
- USB
- 2 x USB 3.1 Gen1
- SATA
- 3 x SATA 3.0 2 x SATA 3.0 support RAID 0/1
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM2.0 (opt.)
Power
- Type
- ATX power input
- Consumption
- TBD
- Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 Windows Server 2019
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- ATX Form Factor 305mm x 244mm
Packing List
- Packing List
- 1 SO630 motherboard 1 I/O shield TBD 1 Cooler TBD
Country of Origin
- Country of Origin
- Taiwan
