SU551

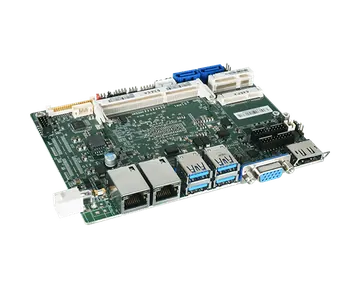

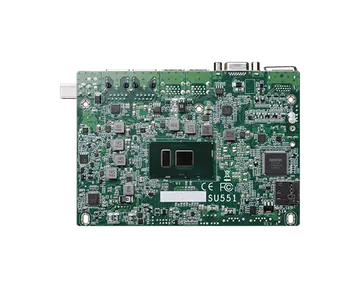

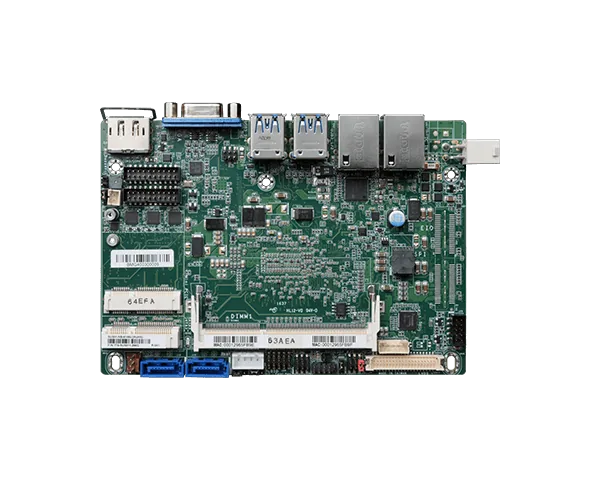

SU551, 3.5" SBC with 6th/7th Gen Intel® i3/i5/i7 or Celeron®, designed with low power, rich I/O which is ideal for industrial control/patient monitor/broadcasting system/ultrasound medical imaging applications
- 7th/6th Gen Intel® Core™ 3.5" SBC
- Wireless communication: Mini PCIe
- Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 1, 2 USB 2.0
- 1 DDR3L SODIMM up to 8GB
- Three independent displays: VGA + LVDS + DP++
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#4K2K Display
#Windows
#Linux
#VGA
#DP
#DDR3L
#RoHS Certification
#FCC Certification
#AGV
#Service Robot
Főbb jellemzőkKey features
- 7th/6th Gen Intel® Core™ 3.5" SBC
- Wireless communication: Mini PCIe
- Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 1, 2 USB 2.0
- 1 DDR3L SODIMM up to 8GB
- Three independent displays: VGA + LVDS + DP++
System
- Processor
- 6th Generation Intel® Core™ Processors, BGA 1356 Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W 7th Generation Intel® Core™ Processors, BGA 1356 Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W Intel® Core™ i3-7100U Processor,Dual Core, 3M Cache, 2.4GHz , 15W Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W
- Memory
- One 204-pin SODIMM up to 8GB Single Channel DDR3L 1600MHz
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics GT Series
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x LVDS 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + LVDS + DP++
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB/SATA, SATA by default) 1 x Half-size Mini PCIe (PCIe/USB, PCIe by default) 1 x SIM (supported by half-size Mini PCIe) (available upon request)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
Rear I/O
- Ethernet

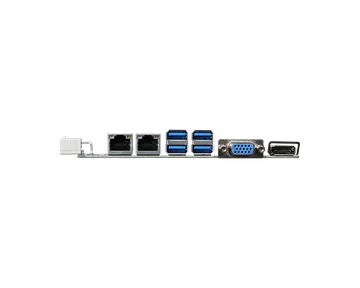

- 2 x GbE (RJ-45)
- USB
- 4 x USB 3.1 Gen 1
- Display
- 1 x VGA 1 x DP++
Internal I/O
- Serial
- 2 x RS-232/422/485 (2.0mm pitch) 2 x RS-232 (2.0mm pitch)
- USB
- 2 x USB 2.0 (2.0mm pitch)
- Display
- 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 2 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Single 12V +/-10% DC
- Connector
- Right Angle Connector (4-pin) DC Jack (available upon request) Vertical Type Connector (4-pin) (available upon request)
- Consumption
- Typical: 6300U:12V @ 0.40A (4.80Watt) Max.: 6300U:12V @ 2.08A (24.96Watt)
- Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 7 (/WES7) 32/64-bit Windows 8.1 (64-bit) Windows 10 IoT Enterprise 64-bit
- Linux
- Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Linux
Environment
- Temperature
- Operating: 0 to 60°C (Opt. -20 to 70°C) Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- SU551 : 430,978 hrs @ 25°C; 253,129 hrs @ 45°C ; 157,798 hrs @ 60°C
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 15.5mm Bottom Side: 4.0mm
Standards and Certifications
- Certifications
- CE Certification FCC Certification RoHS Certification
Packing List
- Packing List
- 1 SU551 board 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 Serial ATA data cable (Length: 300mm) 332-553001-205G 1 Serial ATA power cable (Length: 250mm) A81-004041-016G 1 Heat sink 0 to 60°C (Height: 20.85mm) A71-011084-000G, wide temp (Height: 30.85mm) A71-011083-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| SU551-NB-6300U | 770-SU5511-000G | Fanless, Intel® Core™ i5-6300U, 1 DDR3L SODIMM, 2 LAN, 4 COM, 6 USB, 0 to 60°C |
| SU551-NB-3955U | 770-SU5511-100G | Fanless, Intel® Core™ 3955U, 1 DDR3L SODIMM, 2 LAN, 4 COM, 6 USB, 0 to 60°C |
| SU551-NB-6100U | 770-SU5511-200G | Fanless, Intel® Core™ i3-6100U, 1 DDR3L SODIMM, 2 LAN, 4 COM, 6 USB, 0 to 60°C |
| SU551-NB-6600U | 770-SU5511-300G | Fanless, Intel® Core™ i7-6600U, 1 DDR3L SODIMM, 2 LAN, 4 COM, 6 USB, 0 to 60°C |
| SU551-NE-6600U | 770-SU5511-400G | Fanless, Intel® Core™ i7-6600U, 1 DDR3L SODIMM, 2 LAN, 4 COM, 6 USB, -20 to 70°C |
| SU551-NE-6300U | 770-SU5511-500G | Fanless, Intel® Core™ i5-6300U, 1 DDR3L SODIMM, 2 LAN, 4 COM, 6 USB, -20 to 70°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106002-102G | 60W, 12V |
| USB port cable | A81-001032-016G | Length: 200mm |
| Heat spreader | A71-011078-000G | Height: 11mm |
| 1 Audio cable | A81-022007-016G | Length: 160mm |
| 4 pin to DC jack cable | A81-004051-016G | Length: 100mm |
