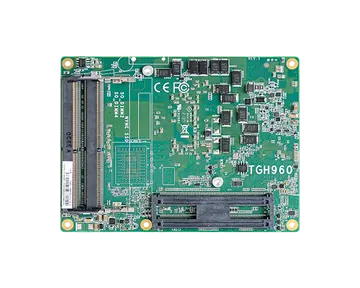

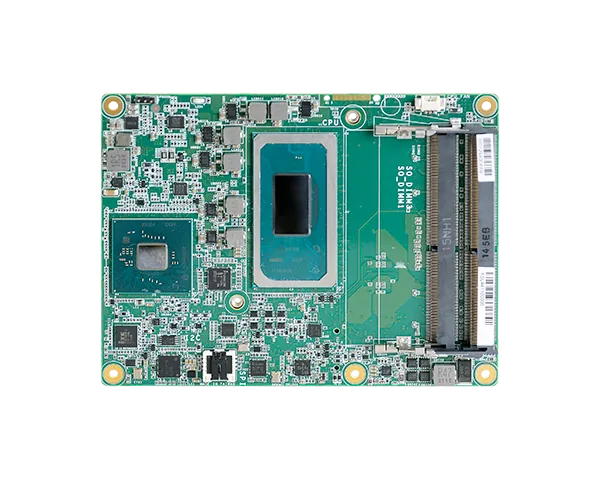

TGH960
COM Express Type 6, 11th Gen Intel® CPU, DDR4, 1 PCIe x16, 4 SATA 3.0, 8 USB 2.0, 4 USB 3.2, 1 VGA, 1 LVDS/eDP, 3 DDI
- 11th Generation Intel® Processor COM Express® Basic
- DDR4 3200MHz SO-DIMM up to 96GB, up to 128GB by request.
- VGA + LVDS*/eDP + 3 DDI
- DP++ supports 4K resolution
- Multiple expansion: 1 PCIe x16, 8 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
- Rich I/O: 1 Intel 2.5GbE, 4 USB 3.2 Gen2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2' 36 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Slim Bootloader
#IoT
#4K2K Display
#PCIe x16
#Windows
#HDMI
#VGA
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#11th Gen Intel® Tiger Lake Processor
#UKCA Certification
Főbb jellemzőkKey features
- 11th Generation Intel® Processor COM Express® Basic
- DDR4 3200MHz SO-DIMM up to 96GB, up to 128GB by request.
- VGA + LVDS*/eDP + 3 DDI
- DP++ supports 4K resolution
- Multiple expansion: 1 PCIe x16, 8 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
- Rich I/O: 1 Intel 2.5GbE, 4 USB 3.2 Gen2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2' 36 (Based on Intel IOTG Roadmap)
System
- Processor
- 11th Gen Intel® Core™ Processors, BGA 1787 Intel® Xeon® W-11865MRE, 8 Cores, 24M Cache, 2.6GHz (4.7GHz), 45W (RM590E) Intel® Xeon® W-11865MLE, 8 Cores, 24M Cache, 1.5GHz (4.5GHz), 25W (RM590E) Intel® Core™ i7-11850HE, 8 Cores, 24M Cache, 2.6GHz (4.7GHz), 45W (RM590E/QM580E) Intel® Xeon® W-11555MRE, 6 Cores, 12M Cache, 2.6GHz (4.5GHz), 45W (RM590E) Intel® Xeon® W-11555MLE, 6 Cores, 12M Cache, 1.9GHz (4.4Hz), 25W (RM590E) Intel® Core™ i5-11500HE, 6 Cores, 12M Cache, 2.6GHz (4.5GHz), 45W (RM590E/QM580E) Intel® Xeon® W-11155MRE, 4 Cores, 8M Cache, 2.4GHz (4.4GHz), 45W (RM590E) Intel® Xeon® W-11155MLE, 4 Cores, 8M Cache, 1.8GHz (3.1GHz), 25W (RM590E) Intel® Core™ i3-11100HE, 4 Cores, 8M Cache, 2.4GHz (4.4GHz), 45W (RM590E/QM580E/HM570E) Intel® Celeron® 6600HE, 2 Cores, 8M Cache, 2.6GHz, 35W (RM590E/QM580E/HM570E)
- Chipset
- Intel® RM590E/QM580E/HM570E Chipset
- Memory
- 3pcs DDR4 3200MHz SO-DIMM up to 96GB, 4th DIMM by request. Dual Channel DDR4 3200MHz ECC support by request
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics for 11th Gen Intel® Processors
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: MPEG2, WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1 HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
- Display
- 1 x VGA 1 x LVDS/eDP (eDP available upon request) 3 x DDI (HDMI/DP++)
- Multiple Displays
- VGA + LVDS + 2 DDI or VGA + 3 DDI or LVDS + 3 DDI
Storage
- SSD
- (Option) NVMe SSD: PCIe x4 Gen4, 64GB~1TB SSD and 2nd DDR4 SO-DIMM(DIMM2) is alternative function.
Expansion
- Interface
- 1 x PCIe x16 (Gen 4) 8 x PCIe x1 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX)
Audio
- Audio Codec
- HD Audio
Ethernet
- PHY
- 1 x Intel® i226 series (10/100/1000Mbps/2.5G)
I/O
- USB
- 4 x USB 3.2 Gen2 8 x USB 2.0
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) support RAID 0/1/5/10
- DIO
- 1 x 8-bit DIO (Default 4 inputs and 4 outputs)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM2.0 (Available Upon Request)
Power
- Type
- 8.5V~20V, 5VSB, VCC_RTC (ATX mode) 8.5V~20V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit
- Linux
- Ubuntu 20.04
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM Express® Basic 95mm (3.74") x 125mm (4.9")
- Compliance
- PICMG COM Express® R3.0, Type 6
Standards and Certifications
- Certifications
- CE, FCC, UKCA, RoHS
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| TGH960-QM580E-BS0-11850HE | 770-TGH9601-000G | I7-11850HE, QM580E, LVDS, 4 USB3.2 Gen2, 8 USB2.0, Cooler, 0~60°C |
| TGH960-RM590E-BS0-11865MLE | 770-TGH9601-100G | W-11865MLE, RM590E, eDP, 4 USB3.2 Gen2, 8 USB2.0, Cooler, 0~60°C |
| TGH960-RM590E-TS0-11865MRE | 770-TGH9601-200G | W-11865MRE, RM590E, LVDS, 4 USB3.2 Gen2, 8 USB2.0, Cooler, -40~85°C |
| TGH960-HM570E-BS0-6600HE | 770-TGH9601-300G | Celeron 6600HE, HM570E, LVDS, 4 USB3.2 Gen2, 8 USB2.0, Cooler, 0~60°C |
| TGH960-RM590E-TS0-11865MRE | 770-TGH9601-400G | W-11865MRE, RM590E, LVDS, 4 USB3.2 Gen2, 8 USB2.0, TPM2.0, Cooler, -40~85°C |
| TGH960-QM580-BS0-11100HE | 770-TGH9601-500G | i3-11100HE, QM580E, LVDS, 4 USB3.2 Gen2, 8 USB 2.0, Cooler, 0~60°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM335 carrier board kit | 770-CM3351-000G |
