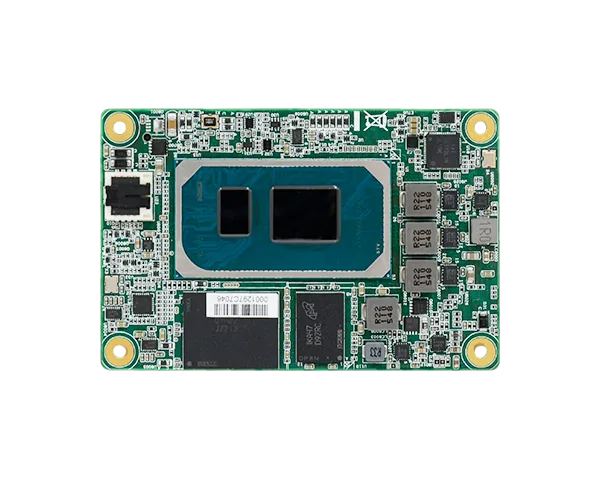

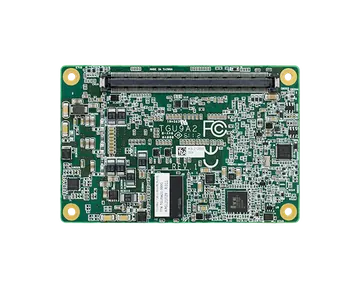

TGU9A2
COM Express Type 10, 11th Gen Intel® CPU, DDR4, 2 SATA 3.0, 8 USB 2.0, 1 VGA, 1 DDI
- 11th Generation Intel® Processor COM Express® Mini
- Single Channel LPDDR4X 4266MHz；Memory Down up to 16GB
- 1 eDP, 1 DDI (HDMI/DVI/DP++) , Dual Display：DDI + eDP
- DP++ supports 4K x 2K resolution
- Multiple expansion: 1 PCIe x4, 2 I2C, 1 SMBus
- Rich I/O: 1 Intel 2.5GbE, 2 USB 3.2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Slim Bootloader
#Fast Resume & Low Power Standby
#IoT
#Intel
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#11th Gen Intel® Tiger Lake Processor
#UKCA Certification
Főbb jellemzőkKey features
- 11th Generation Intel® Processor COM Express® Mini
- Single Channel LPDDR4X 4266MHz；Memory Down up to 16GB
- 1 eDP, 1 DDI (HDMI/DVI/DP++) , Dual Display：DDI + eDP
- DP++ supports 4K x 2K resolution
- Multiple expansion: 1 PCIe x4, 2 I2C, 1 SMBus
- Rich I/O: 1 Intel 2.5GbE, 2 USB 3.2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Core™ i7-1185G7E Processor (Core 4; Max speed 2.8 GHz; TDP 15-28W) Intel® Core™ i7-1185GRE Processor (Core 4; Max speed 2.8 GHz; TDP 15-28W) Intel® Core™ i5-1145G7E Processor (Core 4; Max speed 2.6 GHz; TDP 15-28W) Intel® Core™ i5-1145GRE Processor (Core 4; Max speed 2.6 GHz; TDP 15-28W) Intel® Core™ i3-1115G4E Processor (Core 2; Max speed 3.0 GHz; TDP 15-28W) Intel® Core™ i3-1115GRE Processor (Core 2; Max speed 3.0 GHz; TDP 15-28W) Intel® Celeron® 6305RE Processor (Core 2; Max speed 1.8 GHz; TDP 15W)
- Memory
- Memory Down up to 16GB Single Channel LPDDR4X 4266MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® Iris® Xe graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1 HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
- Display
- 1 x DDI (HDMI/DVI/DP++) 1 x eDP HDMI: resolution up to 3840x2160 @ 30 Hz DP++: resolution up to 4096x2160 @ 60Hz eDP: resolution up to 3840x2160 @ 60Hz
- Dual Displays
- DDI + eDP
Expansion
- Interface
- 1 x PCIe x4 (Gen 3) 1 x I2C 1 x SMBus 2 x SPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® Ethernet I225IT (10M/100M/1000M/2.5Gbps)
I/O
- USB
- 2 x USB 3.2 Gen.2 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- SSD
- 1 x 128GB/256GB/512GB/1024GB on board SSD (available upon request)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- FTPM
- BIOS default support FTPM, TPM2.0 by request
Power
- Type
- 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode)
OS Support
- OS Support
- Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: -5 to 65°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- 1,230,760 hrs @ 25°C ; 845,813 hrs @ 45°C ; 598,810 hrs @ 60°C 464,366 hrs @ 70°C ; 309,043 hrs @ 85°C Calculation Model : Telcordia Issue 4 Environment : GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.3") x 55mm (2.16")
- Compliance
- PICMG COM Express® R3.0, Type 10
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • CPU Cooler (i7 & i5 Series) A71-108139-000G • CPU Cooler (i3 & Celeron Series) A71-108139-010G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| TGU9A2-T16-1185GRE | 770-TGU9A22-000G | I7 1185GRE, 16 GB, eDP, DIO, TPM 2.0, SSD 128 GB, Operating temp. -40-85°C |
| TGU9A2-T86-1185GRE | 770-TGU9A22-100G | I7 1185GRE, 8 GB, eDP, DIO, TPM 2.0, SSD 128 GB, Operating temp. -40-85°C |
| TGU9A2-T16-1145GRE | 770-TGU9A22-200G | I5 1145GRE, 16 GB, eDP, DIO, TPM 2.0, SSD 128 GB, Operating temp. -40-85°C |
| TGU9A2-B86-1115G4E | 770-TGU9A22-300G | I3 1115G4E, 8 GB, eDP, DIO, TPM 2.0, SSD 128 GB, Operating temp. -5-65°C |
| TGU9A2-B86-6305E | 770-TGU9A22-400G | Celeron 6305E, 8 GB, eDP, DIO, TPM 2.0, SSD 128 GB, Operating temp. -5-65°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat Spreader | A71-808338-000G | |
| COM100-B Carrier Board Kit | 770-COM104-000G | |
| COM335 Carrier Board Kit | 770-CM3351-000G |
