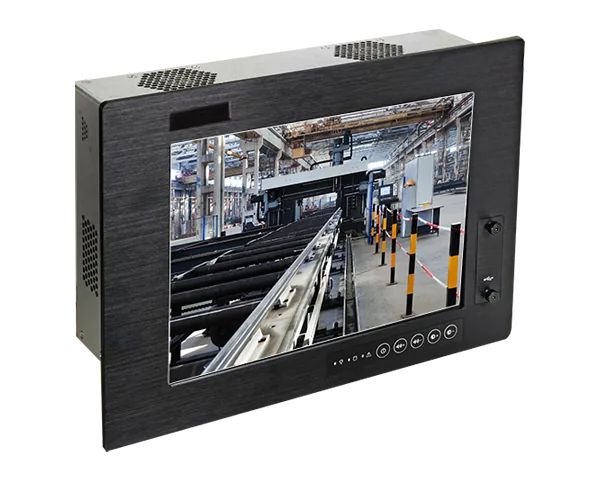

TPC150
15" Heavy Industrial Touch Panel PC, 3rd/2nd Gen Intel® Core™, DDR3, 2 Expansion Slots, 1 HDMI, 1 DVI
TPC121
12.1" Heavy Industrial Panel PC, 3rd/2nd Gen Intel® Core™, DDR3, 2 Expansion Slots, 1 HDMI, 1 DVI
- 12.1" 1024x768 TFT LCD Panel with Touch Screen
- 3rd/2nd Gen Intel® Core™ with Intel® H61
- 2 USB 2.0 at the front panel for easy access
- 5 function keys at the front panel
- Built-in antenna for optional Wi-Fi
- 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#TPC
#Intel
#Mini PCIe
#IP65 Front Panel Protection
#Windows
#Linux
#HDMI
#DVI-I
#Multiple Expansion
#DDR3
#RoHS Certification
#CE Certification
#FCC Certification
#High-Performance
Főbb jellemzőkKey features
- 12.1" 1024x768 TFT LCD Panel with Touch Screen
- 3rd/2nd Gen Intel® Core™ with Intel® H61
- 2 USB 2.0 at the front panel for easy access
- 5 function keys at the front panel
- Built-in antenna for optional Wi-Fi
- 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)
System
- Processor
- 3rd generation Intel® Core™ processors 2nd generation Intel® Core™ processors
- Chipset
- Intel H61® Express Chipset
- Memory
- Two SODIMM up to 16GB DDR3 1333/1600MHz (3rd gen processors) DDR3 1066/1333MHz (2nd gen processors)
Display and Touch Screen
- Display
- 12.1" 1024x768 TFT LCD Panel with 5-wire Resistive Touch Screen
- Brightness
- 500 cd/m²
- Backlight Lifetime
- 30,000 MTBF LED Backlight
Graphics
- Controller
- Intel® HD Graphics
- Display
- 1 x HDMI 1 x DVI-I HDMI, DVI-I: resolution up to 1920x1200
Storage
- External/Internal
- 1 x 2.5" SATA 2.0 Drive Bay 1 x Optical Drive Bay (available upon request)
Expansion
- Interface
- 1 x PCIe x1 and 1 x PCI (X100-3PE2) 2 x PCI (X100-2P1M) 2 x Mini PCIe - Supports half size Mini PCIe card (PCIe/USB on board) - Supports full size Mini PCIe card (PCIe on X100-3PE2)
Audio
- Audio Codec
- Realtek ALC886 5.1-channel 2 x 3W Speaker (left and right sides)
Ethernet
- Controller
- 1 x Intel® W82579LM PCIe (10/100/1000Mbps) 1 x Intel® W82574L PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED 1 x Alarm LED
Front I/O
- USB
- 2 x USB 2.0
- Buttons
- 5 x Function Keys (power, volume, and brightness)
- Wi-Fi Antenna
- 1 x Wi-Fi Module Antenna Hole

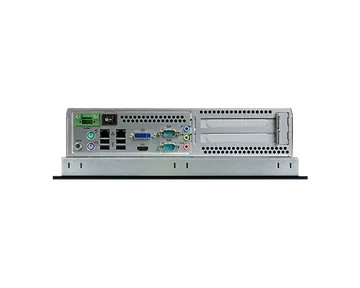

Bottom I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9)
- USB
- 4 x USB 2.0
- Display
- 1 x DVI-I 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in
- PS/2
- 1 x PS/2 (keyboard) 1 x PS/2 (mouse)
- Buttons
- 1 x Power Switch
Cooling
- Fan
- Smart Fan System Control (suitable for quiet environments)
Power
- Type
- Standard: 19~24V DC-in Jack Option: 24V DC-in 3-pole Terminal Block
OS Support
- OS Support
- Windows XP, WES 2009, POSReady 2009, Windows 7, WES 7 Linux (Distribution available upon request)
Environment
- Operating Temperature
- -10°C ~ 50°C
- Storage Temperature
- -20°C ~ 60°C
- Relative Humidity
- 90% RH at 50°C, 1 week
Mechanism
- Construction
- Aluminum Front Bezel Rear Panel: Sheet Metal
- IP Rating
- IP65 Front Panel Protection
- Mounting
- VESA Mount (75x75 and 100x100) Wall Mount Bracket Panel Mount (mounting clamp)
- Dimensions (W x H x D)
- 345mm x 265mm x 103mm (W x H x D)
- Weight
- 6.5 kg
Standards and Certifications
- Shock
- Operating: 3G Peak Acceleration (11 msec. duration) Non-operating: 10G Peak Acceleration (11 msec. duration) IEC 68-2-27 Compliant
- Vibration
- Operating: 1G, 5~500Hz Non-operating: 1.5G, 5~25Hz IEC 68-2-64 Compliant
- Certifications
- CE, FCC Class A, RoHS
Packing List
- Packing List
- 1 TPC121 Touch Panel PC 1 120W power adapter (only for TPC-1212TR-SBDCR-R10, TPC1212TR-SBDCR-R11) 1 Quick Installation Guide Note: Please choose "TPC121 product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| TPC1212TR-SBDCMR-R11 | 750-TPC121-610G | 12.1" Industrial Panel PC, H61 chipset, Aluminum Front Bezel, Resistive Touch, terminal block DC input, 2 PCI, 2 Mini PCIe |
| TPC1212TR-SBDCR-R11 | 750-TPC121-600G | 12.1" Panel PC, H61 chipset, Aluminum Front Bezel, Resistive Touch, DC input, 2 PCI, 2 Mini PCIe |
| TPC1212TR-SBDCMR-R10 | 750-TPC121-010G | 12.1" Industrial Panel PC, H61 chipset, Aluminum Front Bezel, Resistive Touch, terminal block DC input, 1 PCIe x1, 1 PCI, 2 Mini PCIe |
| TPC1212TR-SBDCR-R10 | 750-TPC121-000G | 12.1" Industrial Panel PC, H61 chipset, Aluminum Front Bezel, Resistive Touch, DC input, 1 PCIe x1, 1 PCI, 2 Mini PCIe |
| Item Name | Part Number | Description |
|---|---|---|
| CPU | 785-CP1155DL | CPU, LGA 1155, Long-term support, RoHS |
| CD-RW ROM | 785-STCDRW | Slim Type SATA CD-RW/DVD ROM |
| Panel Mount | 785-121PMK | 12.1" Panel PC Panel Mount kit |
| Wall Mount | 785-PPCWMK | Standard Panel PC Wall Mount kit |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi kit, RoHS |
| 320GB HDD | 785-H25320G | 2.5” SATA HDD, 320GB, RoHS |
| 500GB HDD | 785-H25500G | 2.5” SATA HDD, 500GB, RoHS |
| 1GB DDR3 | 785-RSOD31G | SODIMM, DDR3 Module, 1GB, RoHS |
| 2GB DDR3L | 785-RSOD32G-L | SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 2GB, RoHS |
| 4GB DDR3L | 785-RSOD34G-L | SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 4GB, RoHS |
| 8GB DDR3L | 785-RSOD38G-L | SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 8GB, RoHS |
| DVD-ROM | 785-STDDRW | Slim Type SATA DVD-RW/DVD ROM |
