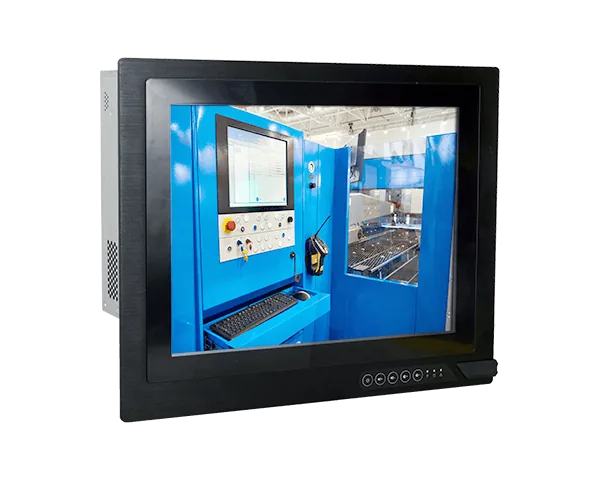

TPC170-SD
17" Heavy Industrial Touch Panel PC, 7th/6th Gen Intel® Core™, DDR4, 1 Mini PCIe, 1 VGA, 1 DVI, 1 DP
- VESA/Panel Mount
- 1 USB 2.0 at the front panel for easy access
- 2 x 2.5" SATA drive bays
- 17" 1280x1024 TFT LCD Panel with Touch Screen
- 5 function keys at the front panel
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#TPC
#Intel
#Mini PCIe
#IP65 Front Panel Protection
#DVI-I
#DVI-D
#VGA
#DDR4
#CE Certification
#FCC Certification
#High-Performance
Főbb jellemzőkKey features
- VESA/Panel Mount
- 1 USB 2.0 at the front panel for easy access
- 2 x 2.5" SATA drive bays
- 17" 1280x1024 TFT LCD Panel with Touch Screen
- 5 function keys at the front panel
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- 7th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W 6th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W
- Memory
- Two 260-pin SODIMM up to 32GB Dual Channel DDR4 1866/2133MHz
Display and Touch Screen
- Display
- 17" 1280x1024 TFT LCD Panel with Projected Capacitive Touch and Resistive Touch Screen
- Brightness
- 350 cd/m²
- View Angle
- 170 (H) / 160 (V)
- Backlight Lifetime
- 30,000 MTBF LED Backlight
Expansion
- Interface
- 1 x Full-size mSATA (PCIe/USB) 2 x PCIe x8 or 2 x PCI + 1 x Mini PCIe
Ethernet
- Controller
- 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219V PCIe (10/100/1000Mbps)
Front I/O
- USB
- 1 x USB 2.0

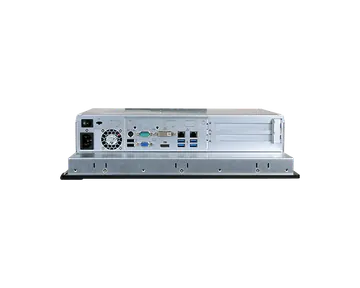

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232 (DB-9) 1 x RS-232 (DB-9) (available upon request) 1 x RS-232/422/485 (available upon request)
- USB
- 4 x USB 3.0 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++
- Audio
- 1 x Line-out (available upon request)
Power
- Type
- 100-240VAC
- Connector
- C14 Connector
- Consumption
- 145W
Environment
- Operating Temperature
- 0 to 50°C
- Storage Temperature
- -30 to 70°C
- Relative Humidity
- 10% to 90% @ 40°C (non-condensing)
Mechanism
- Dimensions
- 404 x 363.8 x 98.9 mm
- Construction
- Sheet Metal
- IP Rating
- IP65 front bezel
- Mounting
- Panel/VESA (75x75/100x100) Mount
- Weight
- 9.6W
Standards and Certifications
- Certifications
- CE, FCC Class A
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| TPC170R-SDAC-2PCI | 750-TPC171-000G | 17" Panel PC ; SD100, Q170 chipset, AC input, 5-wire Resistive Touch, 2 x PCI, F/G SYSTEM, RoHs |
| TPC170P-SDAC-2PCI | 750-TPC171-100G | 17" Panel PC ; SD100, Q170 chipset, AC input, capacitive touch, 2 x PCI, F/G SYSTEM, RoHs |
| TPC170R-SDAC-2PCIE | 750-TPC171-200G | 17" Panel PC ; SD100, Q170 chipset, AC input, 5-wire Resistive Touch, 2 x PCIe x8, F/G SYSTEM, RoHs |
| TPC170P-SDAC-2PCIE | 750-TPC171-300G | 17" Panel PC ; SD100, Q170 chipset, AC input, capacitive touch, 2 x PCIe x8, F/G SYSTEM, RoHs |
| Item Name | Part Number | Description |
|---|---|---|
| HDD | 785-H25500G 785-H25320G | 2.5” SATA HDD, 500GB, RoHS 2.5” SATA HDD, 320GB, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| VESA Mount | 761-TPC000-000G | ACCESSORY VESA MOUNT KITS TPC Series/KS2xx RoHS |
| Panel Mount | 761-TPC171-000G | TPC170-SD Panel PC Panel Mount Kit RoHS |
