VC230-BT
VC230-BT, In-Vehicle/Railway System with Intel Atom®, designed with rich I/O interfaces and anti-vibration which is ideal for harsh environments/fleet management applications
VC230-AL

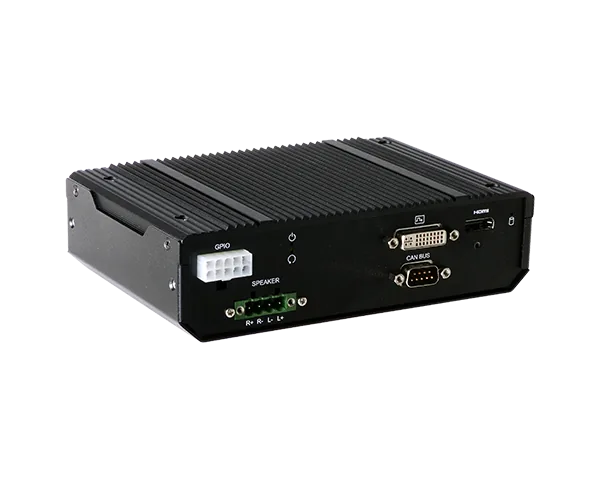

VC230-AL, In-Vehicle/Railway System with Intel Atom®, designed with Support Dual SIM cards and built-in GNSS which is ideal for vehicle dispatch/fleet management/IoT edge computing applications
- Anti-vibration and fanless in-vehicle computer
- Supports ignition delay on/off function
- 1 mSATA, eMMC storage options
- Support GNSS by default
- Dual SIM support for cellular
- Supports Wi-Fi, LTE, and CAN bus communication
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#CAN-Bus
#Mini PCIe
#Fanless Design
#Windows
#Linux
#HDMI
#DVI-I
#DDR3L
#E-Mark (E13) Certification
#RoHS Certification
#FCC Certification
#In-Vehicle
Főbb jellemzőkKey features
- Anti-vibration and fanless in-vehicle computer
- Supports ignition delay on/off function
- 1 mSATA, eMMC storage options
- Support GNSS by default
- Dual SIM support for cellular
- Supports Wi-Fi, LTE, and CAN bus communication
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.6GHz), 6.5W
- Memory
- 1 DDR3L 1600/1866MHz SODIMM memory support up to 8GB
- BIOS
- Insyde SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Display
- 1 x HDMI 1 x DVI-I HDMI: resolution up to 3840x2160 @ 60Hz DVI-I: resolution up to 2560x1600 @ 60Hz
- Dual Displays
- HDMI + DVI-I
Storage
- Internal
- 32GB/64GB eMMC onboard 1 x mSATA slot
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB/Dual micro SIM) 1 x Full-size Mini PCIe (PCIe/USB/micro SIM) 1 x Half-size Mini PCIe (share with 1 x mSATA slot)
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps)
- Interface
- 2 x RJ45 GbE ports
GNSS
- GNSS
- Support GPS, Gallileo, GLONASS, BeiDou by u-blox NEO-M8N Dead reckoning support upon request
LED
- Indicators
- 1 x Power LED 1 x Storage LED

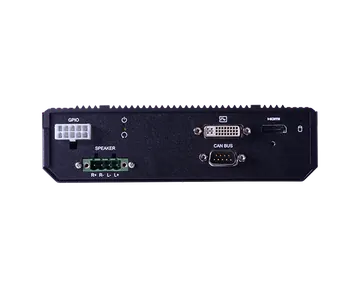

Front I/O
- Display
- 1 x HDMI 1 x DVI-I
- Audio
- 1 x 4pins 5.00mm terminal block connector
- DIO
- Isolated 8 bits DIO via 2 x 5pin 4.2mm power connector Input voltage: 0 to 30VDC, Output current: 50mA pre pin and Max. 200mA total. On-state voltage: 12VDC nominal, open collector to 30VDC.
- Buttons
- 1 x Reset button
- CANBus
- Supports dual Can bus via 1 x DB9 port by DFI MPE-CAN2 Mini PCIe module (optional)
- Antenna
- 3 x SMA antenna holes

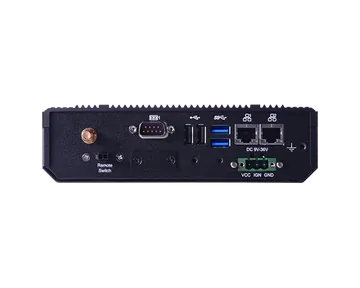

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (DB9-M)
- USB
- 2 x USB 2.0 (type A) 2 x USB 3.0
- Antenna
- 1 x SMA antenna hole 1 x FME antenna hole
Watchdog Timer
- Output & Interval
- System reset, programmable via software from 1 to 255 seconds
Power
- Type
- Wide range 9~36V with ignition control
- Connector
- 3-pin terminal block (VCC/ACC/GND)
OS Support
- OS Support
- Windows 10 64-bit Linux CentOS 7
Environment
- Operating Temperature
- -40 to 70°C
- Storage Temperature
- -40 to 85°C
Mechanism
- Construction
- Aluminum + SPGC Metal
- Mounting
- Wall/VESA mount
- Dimensions (W x H x D)
- 180mm x 50mm x 121.2mm (W x H x D)
- Weight
- 1 kg including CPU and memory
Standards and Certifications
- Shock
- MIL-STD-810G 516.6
- Vibration
- MIL-STD 810G 514.6C-3
- Certifications
- CE/FCC Class B/E-mark (E13)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| VC230-AL-E3950 | 750-VC2301-000G | Fanless, Intel Atom X7-E3950, 4GB DDR3L-1866, 32GB eMMC, 2 LAN, 1 HDMI, 1 DVI-I, 1 COM, 4 USB, F/G RoHS |
| VC230-AL-E3940 | 750-VC2301-200G | Fanless, Intel Atom X5-E3940, 4GB DDR3L-1866, 32GB eMMC, 2 LAN, 1 HDMI, 1 DVI-I, 1 COM, 4 USB, F/G RoHS |
| VC230-AL-E3930 | 750-VC2301-300G | Fanless, Intel Atom X5-E3930, 4GB DDR3L-1866, 32GB eMMC, 2 LAN, 1 HDMI, 1 DVI-I, 1 COM, 4 USB, F/G RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| mSATA | 785-MS64GMF 785-MS32GMF 785-MS16GMF | mSATA Card, 64GB MLC, RoHS mSATA Card, 32GB MLC, RoHS mSATA Card, 16GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | WiFi kit, Wireless module, w/Antenna cable*2, 200mm, WPEA-121N a/b/g/n (Sparklan), RoHS |
| 4G LTE | 761-EC5002-000G | 4G LTE kit with Quectel EG25G-E 4G Mini PCIe module, Antenna*3, SMA cables*3 |
| Wall Mount | 761-EC7000-000G | EC700 Wall mount kit, RoHS |
| VESA Mount | 761-EC7000-100G | VC230-BT VESA mount kit, RoHS |
| Switch Cable | A81-006065-016G | Power adaptor cable with power ignition switch and Terminal Block 1*3P/5.0mm to system unit, and DC Jack to power adaptor, L=100mm |
