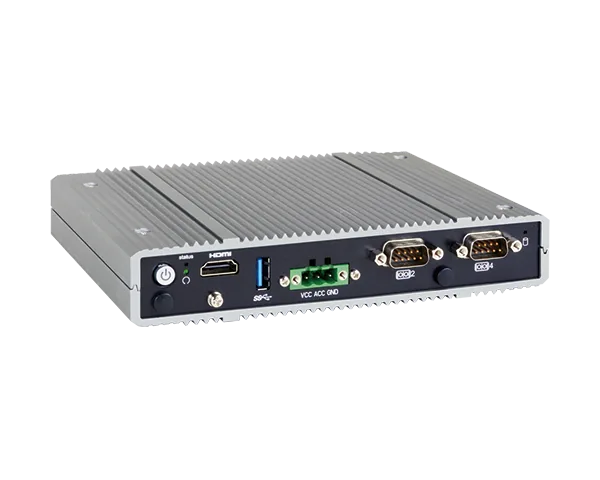

VC230-BT
VC230-BT, In-Vehicle/Railway System with Intel Atom®, designed with rich I/O interfaces and anti-vibration which is ideal for harsh environments/fleet management applications
- Anti-vibration and fanless In-Vehicle computer
- Supports ignition delay on/off function
- 1 mSATA, eMMC (optional), microSD (optional)
- Supports Wi-Fi, 3G, and GPRS application
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#CAN-Bus
#Mini PCIe
#Fanless Design
#Windows
#Linux
#HDMI
#VGA
#DDR3L
#E-Mark (E13) Certification
#RoHS Certification
#CE Certification
#FCC Certification
#In-Vehicle
Főbb jellemzőkKey features
- Anti-vibration and fanless In-Vehicle computer
- Supports ignition delay on/off function
- 1 mSATA, eMMC (optional), microSD (optional)
- Supports Wi-Fi, 3G, and GPRS application
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3800 Series, BGA 1170 Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
- Memory
- 4GB/2GB ECC Memory Onboard Single Channel DDR3L 1333MHz (-E45) Single Channel DDR3L 1066MHz (-E25)
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Display
- 1 x VGA 1 x HDMI HDMI: resolution up to 1920x1080 @ 60Hz VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
- Dual Displays
- VGA + HDMI
Storage
- External/Internal
- 4GB/8GB/16GB/32GB eMMC Onboard (available upon request)
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS/CAN-Bus) 1 x Full-size Mini PCIe (SATA) 1 x Half-size Mini PCIe (PCIe/USB/LPC) 1 x SIM 1 x microSD (available upon request)
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Status LED 1 x HDD LED

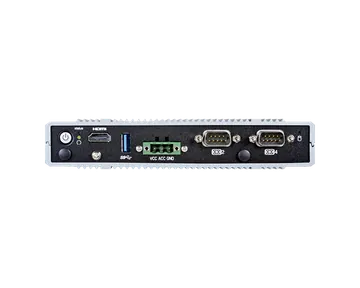

Front I/O
- Serial
- 2 x RS-232/422/485 (DB-9) (one supports 8-bit DIO or CAN-Bus)
- USB
- 1 x USB 3.0 (type A)
- Display
- 1 x HDMI
- Buttons
- 1 x Power Button 1 x Reset Button
- Wi-Fi Antenna
- 2 x Wi-Fi Module Antenna Hole

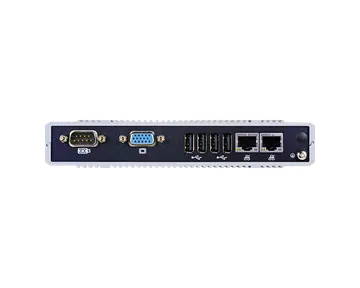

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (DB-9)
- USB
- 4 x USB 2.0 (type A)
- Display
- 1 x VGA
- Audio
- 1 x Line-out (available upon request)
- Wi-Fi Antenna
- 1 x Wi-Fi Module Antenna Hole
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Wide Range 9~36V In-Vehicle Power Management Includes Ignition On/Off and System On/Off Delay Time Control
- Connector
- 3-pin Terminal Block (VCC/IGN/GND)
OS Support
- OS Support
- Windows 7, WES 7, Windows 8, WES 8, Windows 8.1 Linux (Distribution available upon request) Note: Windows 10 will be available upon request. Please contact DFI for more information.
Environment
- Operating Temperature
- -20 to 60°C
- Storage Temperature
- -40 to 85°C
Mechanism
- Construction
- Aluminum + Metal Aluminum
- Mounting
- Wall/VESA/DIN Rail Mount (available upon request)
- Dimensions (W x H x D)
- 180mm x 33mm x 121.2mm (W x H x D)
- Weight
- 800g
Standards and Certifications
- Shock
- Half Sine Wave 15G, 11ms, 3 Shock Per Axis
- Vibration
- MIL-STD 810G 514.5C-II
- Certifications
- CE, FCC Class A, RoHS, E-Mark (E13)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| VC230-BT3051-252 | 750-EC7000-E00G | Fanless, Intel Atom E3825, 2 LAN, 1 HDMI, 1 VGA, 3 COM, 5 USB, 2GB DDR3L memory down, RoHS |
| VC230-BT3051-454 | 750-EC7000-F00G | Fanless, Intel Atom E3845, 2 LAN, 1 HDMI, 1 VGA, 3 COM, 5 USB, 4GB DDR3L memory down, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| 64GB mSATA | 785-MS64GMF | mSATA Card, 64GB MLC, RoHS |
| 32GB mSATA | 785-MS32GMF | mSATA Card, 32GB MLC, RoHS |
| 16GB mSATA | 785-MS16GMF | mSATA Card, 16GB MLC, RoHS |
| 8GB mSATA | 785-MS08GMF | mSATA Card, 8GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| 60W Power Adapter | 671-106002-102G 671-106009-000G | 60W, 12V/5A 60W, 19V/3.15A |
| Wall Mount | 761-EC7000-000G | VC230-BT Wall Mount Kit, RoHS |
| VESA Mount | 761-EC7000-100G | VC230-BT VESA Mount Kit, RoHS |
| Switch Cable | A81-006065-016G | Power adaptor cable with power ignition switch and Terminal Block 1*3P/5.0mm to system unit, and DC Jack to power adaptor, L=100mm |
