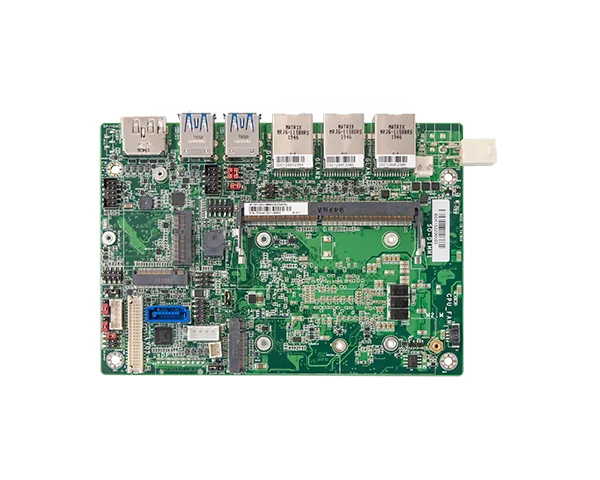

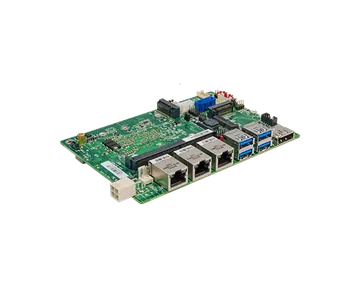

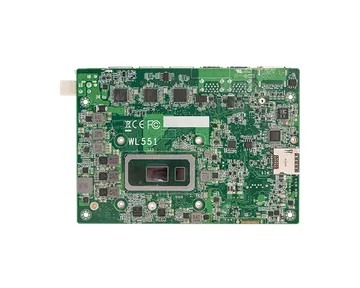

WL551
3.5" SBC, 8th Gen Intel® Core™, 1 DDR4, 1 M.2 M key, 1 M.2 B key, 1 M.2 E key, 1 DP++, 1 LVDS or eDP (opt.)
- 8th Gen Intel® Core™ Processor 3.5" SBC
- Dual independent displays: 1 DP++, 1 LVDS or eDP (opt.)
- 4K High Resolution: Supports 4K/2K resolution
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O 1: 3 Intel GbE, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#8th Gen Intel® Core™ Processor
#IoT
#Intel
#4K2K Display
#Windows
#Linux
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#ULT
#UKCA Certification
Főbb jellemzőkKey features
- 8th Gen Intel® Core™ Processor 3.5" SBC
- Dual independent displays: 1 DP++, 1 LVDS or eDP (opt.)
- 4K High Resolution: Supports 4K/2K resolution
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O 1: 3 Intel GbE, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0
System
- Processor
- 8th Generation Intel® Core™ Processors, BGA 1528 Intel® Core™ i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W Intel® Core™ i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W Intel® Core™ i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W Intel® Core™ Celeron® 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W
- Memory
- One 260-pin SODIMM up to 32GB Single Channel DDR4 up to 2400MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® UHD Graphics 620/ Intel® UHD Graphics 610 (for Celeron 4305UE)
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x DP++ 1 x LVDS or 1 x eDP (opt.) DP++: resolution up to 4096x2160@60Hz LVDS: resolution up to 1920x1200 @60Hz eDP: resolution up to 3840x2160 @ 60Hz
- Dual Displays
- 1x DP++ + 1 x LVDS 1x DP++ + 1 x eDP (opt.)
Expansion
- Interface
- 1 x M.2 M key 2280/2242 (PCIe x4/SATA 3.0) 1 x M.2 B key 3042/2242 (USB 3.1 Gen1/USB 2.0/SATA 3.0 or PCIe x1) Support Nano SIM slot (opt.) 1 x M.2 E key 2230 (PCIe x2/USB 2.0) Support Innodisk InnoAGE™ SSD
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 3 x Intel® I211AT PCIe (10/100/1000Mbps) or 3 x Intel® I210IT PCIe (10/100/1000Mbps)

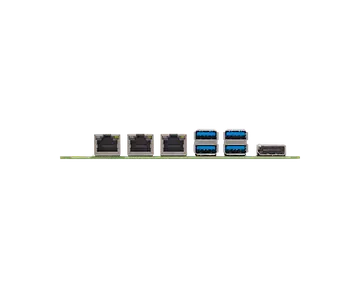

Rear I/O
- Ethernet
- 3 x GbE (RJ-45)
- USB
- 4 x USB 3.1 Gen 2
- Display
- 1 x DP++
Internal I/O
- Serial
- 1 x RS-232/422/485 (2.00mm pitch) RS485 support auto flow control
- USB
- 2 x USB 2.0 (2.00mm pitch)
- Display
- 1 x LVDS LCD Panel connector or 1 x eDP LCD panel connector 1 x LCD/Intverter Power
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM2.0 (default) dTPM2.0 (opt.)
Power
- Type
- Single 12V +/-10% DC
- Connector
- 4-pin Right Angle Type Connector (default) DC Jack (available upon request) 4-pin Vertical Type Connector (available upon request)
- Consumption
- Typical: 8665UE, 12V @ 0.64A (7.68W) Max: 8665UE, 12V @ 2.5A (30W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Windows 10 IoT Enterprise (64-bit) Linux
Environment
- Temperature
- Operating: -5 to 65°C, -20 to 80°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 495,295 hrs @ 25°C; 326,059 hrs @ 45°C; 223,300 hrs @ 60°C; 128,660 hrs @ 80°C
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 15mm Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA, KC
Packing List
- Packing List
- 1 WL551 board 1 SATA cable (Length: 300mm) 332-553001-205G 1 SATA power cable (Length: 250mm) A81-004041-016G 1 COM cable (Length: 250mm) 332-753040-000G 1 Heatsink -5~65°C/ -20 to 80°C (Height: 35.5mm) A71-008152-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WL551-BCI-8665UE | 770-WL5512-000G | i7-8665UE, 1 SODIMM, 3 GbE, DP++ + LVDS, 4 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C |
| WL551-BCI-8365UE | 770-WL5512-100G | i5-8365UE, 1 SODIMM, 3 GbE, DP++ + LVDS, 4 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C |
| WL551-BCI-8145UE | 770-WL5512-200G | i3-8145UE, 1 SODIMM, 3 GbE, DP++ + LVDS, 4 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C |
| WL551-BCI-4305UE | 770-WL5512-300G | Celeron-4305UE , 1 SODIMM, 3 GbE, DP++ + LVDS, 4 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C |
| WL551-ECI-8665UE | 770-WL5512-400G | i7-8665UE, 1 SODIMM, 3 GbE, DP++ + LVDS, 4 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -20 to 80℃ |
| WL551-ECI-8365UE | 770-WL5512-500G | i5-8365UE, 1 SODIMM, 3 GbE, DP++ + LVDS, 4 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -20 to 80℃ |
| WL551-ECI-8145UE | 770-WL5512-600G | i3-8145UE, 1 SODIMM, 3 GbE, DP++ + LVDS, 4 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -20 to 80℃ |
| WL551-ECI-4305UE | 770-WL5512-700G | Celeron-4305UE, 1 SODIMM, 3 GbE, DP++ + LVDS, 4 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -20 to 80℃ |
| Item Name | Part Number | Description |
|---|---|---|
| 4-pin power to DC jack cable | A81-004051-016G | Length: 100mm |
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
| USB 2.0 cable | A81-001032-016G | Length: 200mm |
| Audio cable | A81-022007-016G | Length: 160mm |
| Heat spreader | A71-808333-000G | Height: 11mm |
