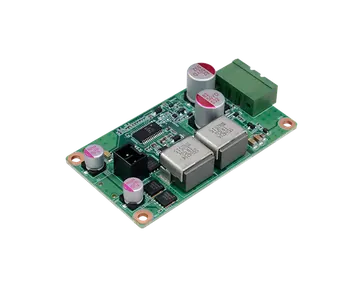

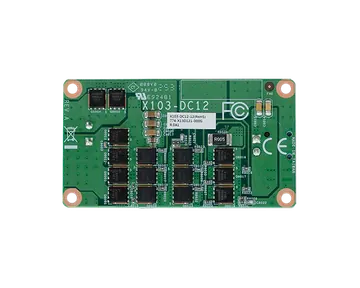

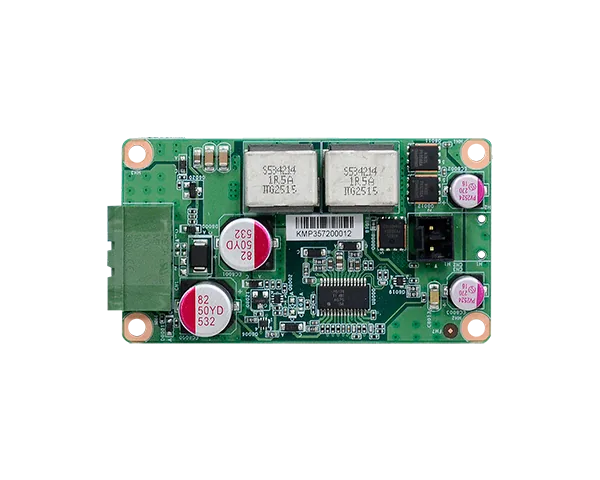

X103-DC12
9V - 36V DC to DC Converters
- 9V - 36V DC to DC Converters
- Input: 9V - 36V, Output: 12V/80W
- Dimensions: 72mm x 40mm
Főbb jellemzők
#9~36V DC-in
Főbb jellemzőkKey features
- 9V - 36V DC to DC Converters
- Input: 9V - 36V, Output: 12V/80W
- Dimensions: 72mm x 40mm
Packing List
- Packing List
- ·1 X103-DC12 power board ·1 power output cable, compatible with 2-pin terminal or 4-pin ATX connector (Length: 100mm).
Specifications
- Features
- · POWER INPUT: 9V ~ 36V · MECHANICAL DESIGN: 72mm x 40mm (2.83" × 1.57") · MAXIMUM OUTPUT: 80 watts (Peak: 120 watts) · CONNECTORS: －Input power connector: one 2-pin terminal block, ME050-50002(DECA) －Output power connector: > Default: one 2-pin wire-to-board connector, vertical, DF63M-2P-3.96DSA(01) > Option: one 2-pin wire-to-board connector, horizontal, DF63M-2P-3.96DS · OPERATING TEMPERATURE: -40~85°C / -40~185°F · RELATIVE HUMIDITY: Operating: 5% to 90% · OUTPUT VOLTAGE: 12V
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| X103- DC12-12 | 770-X13D121-000G | 9~36Vdc In, 12Vdc Out Power Board (compatible with 2-pin terminal) |
| X103- DC12-12 | 770-X13D121-100G | 9~36Vdc In, 12Vdc Out Power Board (compatible with 4-pin ATX) |
| Item Name | Part Number | Description |
|---|---|---|
| Power input cable, DC JACK to 2-pin terminal | A81-004464-016G | Length: 100mm |
| Power output cable, 2-pin HIROSE to 2-pin wafer | A81-004466-016G | ASL051, opt. Length: 100mm |
