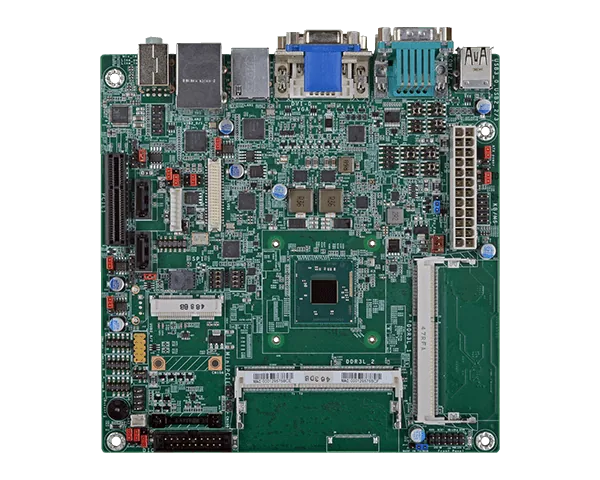

The BT100 uses the Intel®Atom™ processor E3800 product family providing low-power consumption while substantially faster and more capable than other chips available today. This unique equipment delivers excellent graphical capabilities, computing, and media.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BT100-TC-E45 | Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 6 COM, -40 to 85°C | |
| BT100-ED-E45 | Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 2 COM, -20 to 70°C | |
| BT100-BC-J00 | Fanless, Intel® Celeron® J1900, 2 DDR3L SODIMM, 6 COM, 0 to 60°C | |
| BT100-BC-E15 | Fanless, Intel® Atom™ E3815, 1 DDR3L SODIMM, 6 COM, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Serial ATA data cable | 332-553001-005G | |
| USB port cable | A81-001032-016G | 2.0mm |
| USB port cable | 332-253010-026G | 2.54mm |
| COM port cable | A81-015011-001G |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
