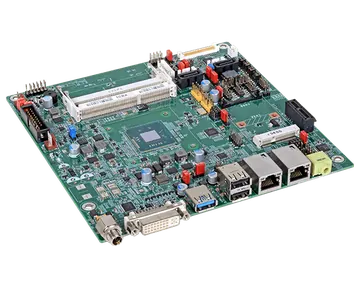

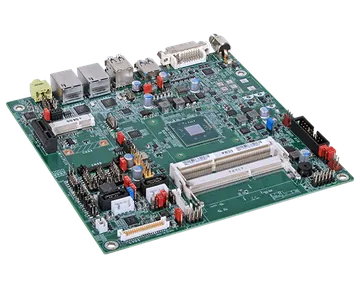

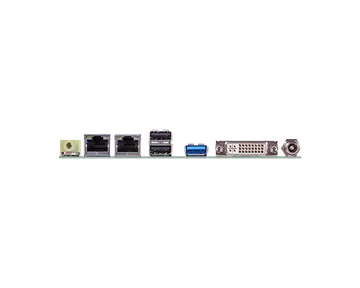

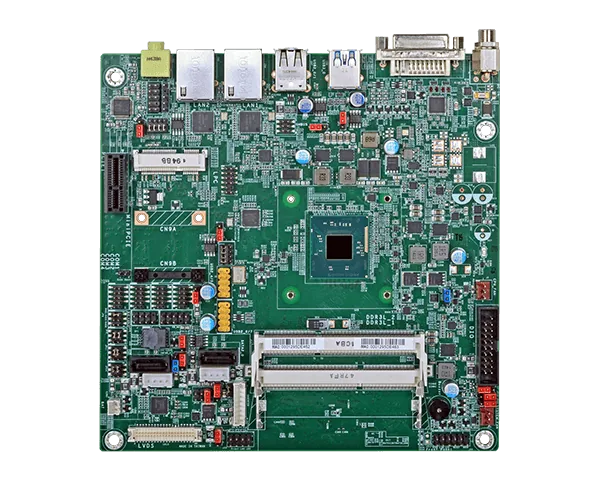

The BT101 and BT103 use the Intel® Atom™ processor E3800 product family providing low-power consumption while substantially faster and more capable than other chips available today. This unique equipment delivers excellent graphical capabilities, computing, and media as well as a built-in security engine – all on a sub-10-watt system-on-chip (SoC) making it suitable for a wide range of industrial designs. The Intel® Atom™ SoC features Intel® HD Graphics technology giving you smooth, immersive gaming and vivid visual entertainment, and offering triple the graphics capabilities of previous-generation Intel® Atom™ processors. The two Mini-ITX embedded motherboards are equipped with 3 display ports: 1 DVI-I (DVI-D signal) supports up to 1920 x 1080 pixels 60 Hz,1 LVDS supports up to 1920 x 1200 with dual channel, and 1 VGA supports up to 2560 x 1600 @ 60Hz. Furthermore, in order to provide more options to customers, the two models are packed with different power connectors: BT101 with 1 12V DC-in (default) or 1 4-pin power (optional), and BT103 with 19~24V DC-in.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BT101-TN-E45 | 770-BT1011-900G | Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 4 COM, -40 to 85°C |
| BT101-BN-E15 | 770-BT1011-A00G | Fanless, Intel® Atom™ E3815, 1 DDR3L SODIMM, 4 COM, 0 to 60°C |
| BT101-BN-J00 | 770-BT1011-C00G | Fanless, Intel® Celeron® J1900, 2 DDR3L SODIMM, 4 COM, 0 to 60°C |
| BT101-BN-E26 | 770-BT1011-D00G | Fanless, Intel® Atom™ E3826, 2 DDR3L SODIMM, 4 COM, 0 to 60°C |
| BT101-BN-E45 | 770-BT1011-F00G | Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 4 COM, 0 to 60°C |
| BT103-BN-J00 | 770-BT1031-900G | Fanless, Intel® Celeron® J1900, 2 DDR3L SODIMM, 4 COM, 0 to 60°C |
| BT103-BN-E15 | 770-BT1031-A00G | Fanless, Intel® Atom™ E3815, 1 DDR3L SODIMM, 4 COM, 0 to 60°C |
| BT103-TN-E45 | 770-BT1031-C00G | Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 4 COM, -40 to 85°C |
| BT103-BN-E45 | 770-BT1031-D00G | Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 4 COM, 0 to 60°C |
| BT103-BN-E25 | 770-BT1031-E00G | Fanless, Intel® Atom™ E3825, 2 DDR3L SODIMM, 4 COM, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| I/O Shield | A49-BT1011-000G | |
| Power adapter | 671-110002-100G 671-110003-100G | 100W, 12V, Level 6 (BT101) 120W, 19V, Level 6 (BT103) |
| Serial ATA data with power cable | A81-002013-000G | |
| COM port cable | A81-015011-001G | |
| USB port cable | 332-253010-026G |
