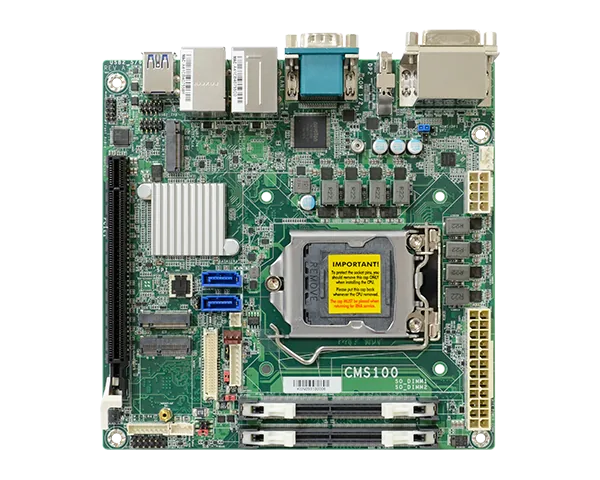

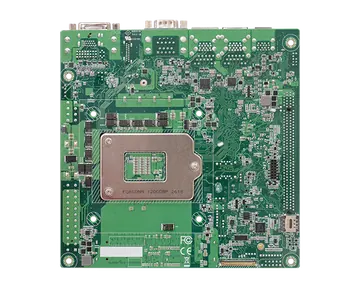

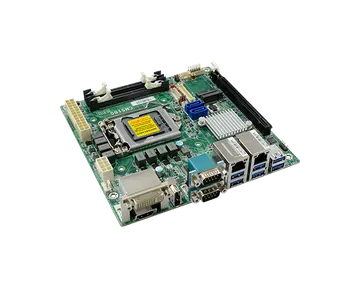

Mini-ITX, Comet Lake, 10th Gen Intel® Core™, 2 DDR4 SODIMM, 1 PCIe x16, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, DP++, HDMI, DVI-I, LVDS/eDP, 1 Intel 2.5GbE, 1 Intel GbE, 2 COM, up to 10 USB, 2 SATA 3.0
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|

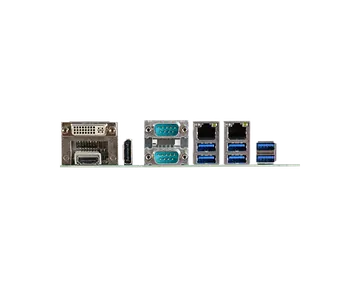

| CMS100-Q470IB | 770-CMS1001-000G | 2 DDR4, Rear I/O (1 DP++, 1 HDMI, 1 DVI, 1 2.5GbE LAN, 1 GbE LAN, 6 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 4 USB 2.0, W/O TPM), Power ATX 24+8-pin, -5 to 65°C |
| CMS100-Q470IB | 770-CMS1001-100G | 2 DDR4, Rear I/O (2 DP++, 1 DVI, 1 2.5GbE LAN, 1 GbE LAN, 6 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 4 USB 2.0, W/O TPM), Power ATX 24+8-pin, -5 to 65°C |
| CMS100-W480IB | 770-CMS1001-200G | 2 DDR4, Rear I/O (1 DP++, 1 HDMI, 1 DVI, 1 2.5GbE LAN, 1 GbE LAN, 6 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 4 USB 2.0, W/O TPM), Power ATX 24+8-pin, -5 to 65°C |
| CMS100-W480IB | 770-CMS1001-300G | 2 DDR4, Rear I/O (2 DP++, 1 DVI, 1 2.5GbE LAN, 1 GbE LAN, 6 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 4 USB 2.0, W/O TPM), Power ATX 24+8-pin, -5 to 65°C |
| CMS100-H420IB | 770-CMS1001-400G | 2 DDR4, Rear I/O (1 DP++, 1 HDMI, 1 DVI, 1 2.5GbE LAN, 1 GbE LAN, 5 USB 3.2 Gen1, 1 USB2.0), Internal I/O (M.2 M/B/E Key, 2 USB 2.0, W/O TPM), Power ATX 24+8-pin, -5 to 65°C |
| CMS100-H420IB | 770-CMS1001-500G | 2 DDR4, Rear I/O (2 DP++, 1 DVI, 1 2.5GbE LAN, 1 GbE LAN, 5 USB3 Gen2, 1 USB 2.0), Internal I/O (M.2 M/B/E Key, 2 USB 2.0, W/O TPM), Power ATX 24+8-pin, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM port cable | A81-015011-001G | Length: 250mm, 1 x COM ports |
| Thermal solution | A71-103004-000G A71-103005-000G A71-101143-000G | For 35W, Height: 29.5mm For 65W, Height: 45mm For 125W, Height: 76.6mm |
| DT122 Chassis | 761-DT1220-200G |
