DFI Networker Kft.

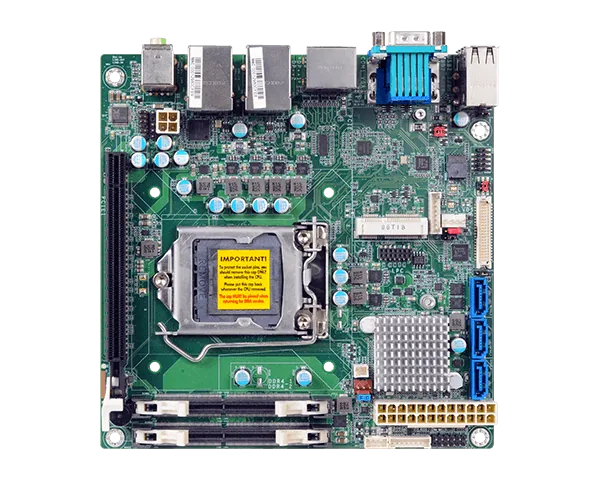

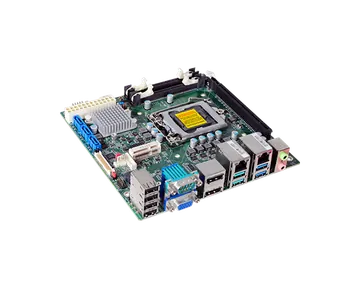

CS100

Mini-ITX, 9th/8th Gen Intel® Core™, 2 DDR4 SODIMM, 1 PCIe x16, 1 Full-size Mini PCIe, 1 LVDS, 1 VGA, 1 DP++

  • 9th/8th Gen Intel® Core™ with Intel® Q370/C246/H310
  • 2 DDR4 2400/2666MHz SODIMM up to 32GB
  • Three independent display: LVDS+VGA+DP++, LVDS+DP++ +DP++, VGA+ DP++ +DP++
  • Multiple Expansions: 1 PCIe x16 (Gen 3), 1 Full-size Mini PCIe (Q370/C246); 1 PCIe x16 (Gen 3), 1 mSATA (H310)

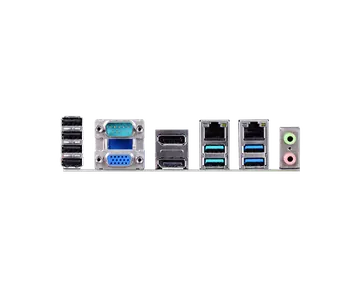

  • Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 4 USB 2.0 (Q370/C246); 2 Intel GbE, 2 COM, 4 USB 3.1 Gen 1, 4 USB 2.0 (H310)
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)
KaphatóLaunched Megvásárlás (US)Buy online (US)
COM ESD Protection: Air Gap ±15kv
Fanless Design
4K2K Display
Windows
DDR4
RoHS Certification
CE Certification
FCC Certification
KC Certification
UKCA Certification
#IoT #Intel #Mini PCIe #Fanless Design #4K2K Display #PCIe x16 #Windows #Linux #VGA #DP #DDR4 #RoHS Certification #CE Certification #FCC Certification #KC Certification #UKCA Certification

Főbb jellemzőkKey features

  • 9th/8th Gen Intel® Core™ with Intel® Q370/C246/H310
  • 2 DDR4 2400/2666MHz SODIMM up to 32GB
  • Three independent display: LVDS+VGA+DP++, LVDS+DP++ +DP++, VGA+ DP++ +DP++
  • Multiple Expansions: 1 PCIe x16 (Gen 3), 1 Full-size Mini PCIe (Q370/C246); 1 PCIe x16 (Gen 3), 1 mSATA (H310)
  • Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 4 USB 2.0 (Q370/C246); 2 Intel GbE, 2 COM, 4 USB 3.1 Gen 1, 4 USB 2.0 (H310)
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
