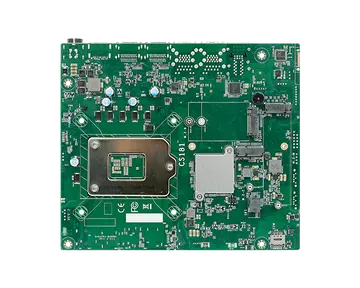

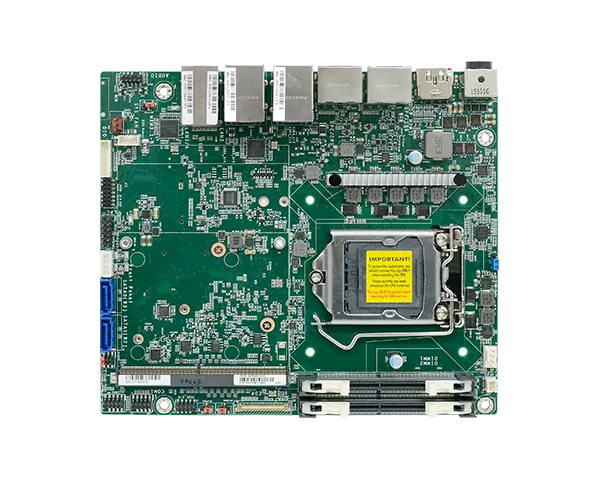

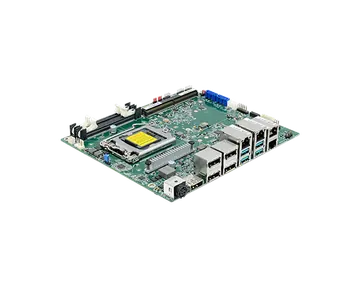

CS181-H310

CS181-H310, Mini-ITX with 8th/9th Gen Intel® i3/i5/i7 or Pentium®/Celeron®, designed with MXM 3.1 module which is ideal for traffic flow analysis/AOI/machine vision/vision guided robotics/medical imaging applications

  • 8th/9th Generation Intel® Core™ Processors
  • 2 DDR4 2400/2666MHz SODIMM up to 64GB
  • Multiple Displays: 1 eDP, 1 DP++, 4 DP (MXM)
  • Supports up to 4K/2K resolution
  • Multiple Expansions: 1 MXM Type-A/B/B+, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Storage: 2 SATA 3.0

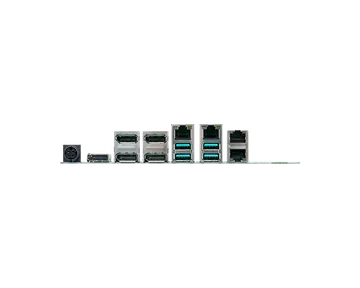

  • Rich I/O: 4 Intel GbE, 2 COM, 4 USB 3.2 Gen1, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 35 (Based on Intel IOTG Roadmap)
KaphatóLaunched Megvásárlás (US)Buy online (US)
4K2K Display
Multiple Expansion
DDR4
RoHS Certification
CE Certification
FCC Certification
#MXM #NVIDIA AI #IoT #Intel #4K2K Display #Windows #Linux #DP #Multiple Expansion #DDR4 #RoHS Certification #CE Certification #FCC Certification

Főbb jellemzőkKey features

  • 8th/9th Generation Intel® Core™ Processors
  • 2 DDR4 2400/2666MHz SODIMM up to 64GB
  • Multiple Displays: 1 eDP, 1 DP++, 4 DP (MXM)
  • Supports up to 4K/2K resolution
  • Multiple Expansions: 1 MXM Type-A/B/B+, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Storage: 2 SATA 3.0
  • Rich I/O: 4 Intel GbE, 2 COM, 4 USB 3.2 Gen1, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 35 (Based on Intel IOTG Roadmap)
