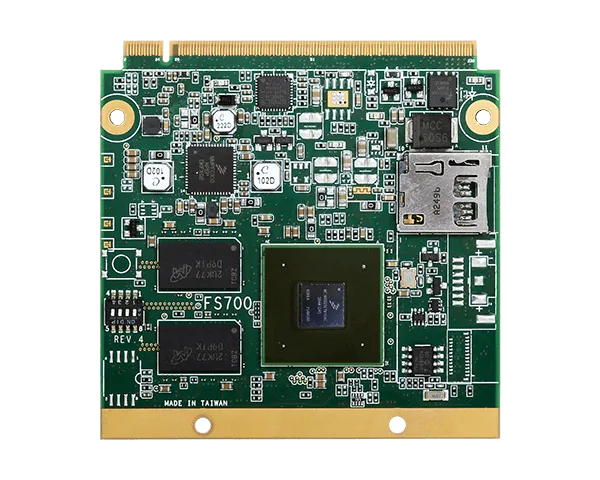

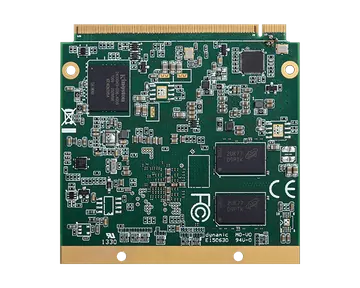

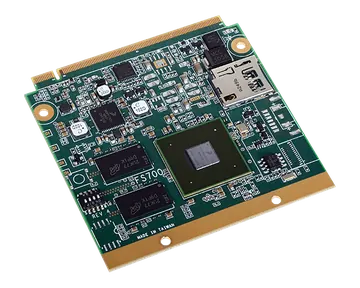

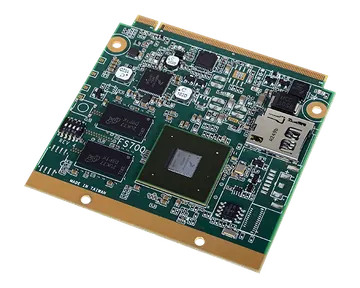

FS700
FS700, Qseven with NXP i.MX6, designed with single, dual and quad-core processors which is ideal for automotive/industrial control automation/medical equipment/gaming applications
- NXP i.MX 6 Series
- Rich I/O: 1 Intel GbE, 4 USB 2.0, 1 USB OTG
- Multiple expansions: 1 PCIe x1, 1 SATA 2.0, eMMC
- 1 HDMI, 2 LVDS
- 1GB/2GB DDR3 Single Channel Memory Down
- 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)
Főbb jellemzők
#CAN-Bus
#ARM
#Compact Size
#1G Ethernet
#Linux
#Android
#HDMI
#DDR3
Főbb jellemzőkKey features
- NXP i.MX 6 Series
- Rich I/O: 1 Intel GbE, 4 USB 2.0, 1 USB OTG
- Multiple expansions: 1 PCIe x1, 1 SATA 2.0, eMMC
- 1 HDMI, 2 LVDS
- 1GB/2GB DDR3 Single Channel Memory Down
- 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)
System
- Processor
- NXP i.MX 6 series processors i.MX6Q: i.MX 6Quad, up to 1.0GHz, Four Cortex-A9 cores i.MX6D: i.MX 6Dual, up to 1.0GHz, Two Cortex-A9 cores i.MX6L: i.MX 6DualLite, up to 1.0GHz, Two Cortex-A9 cores i.MX6S: i.MX 6Solo, up to 1.0GHz, One Cortex-A9 core
- Memory
- 1GB/2GB Single Channel DDR3 Memory Onboard
Graphics
- Feature
- OpenCL, OpenVG 1.1 and 1080p/720p decoder/encoder
- Display
- 1 x HDMI 2 x LVDS HDMI: HDMI v1.4, resolution up to 1920x1200 @ 60Hz LVDS: 18/24-bit - One port up to 165 Mpixels/sec (e.g. 2560x1600 @ 60Hz) - Two ports up to 85 Mpixels/sec (e.g. WUXGA+ @ 60Hz) each
Expansion
- Interface
- 1 x PCIe x1 2 x I2C 1 x Serial (RS232) 1 x SMBus 1 x CAN-Bus 1 x SDIO
Audio
- Interface
- I2S interface
Ethernet
- Controller
- 1 x Atheros AR8033 (10/100/1000Mbps)
I/O
- USB
- 4 x USB 2.0 Supports 1 USB OTG (Type B) interface
- SATA
- 1 x SATA 2.0 (Quad and Dual processors only)
- eMMC
- 1 x 4GB*/8GB/16GB eMMC
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Input: 5V
- Consumption
- Under 5W @ 5V
OS Support
- OS Support
- LTIB Linux 3.0.35 Android 4.3 (Default Preloaded) - Quad, Dual and DualLite processors only
Environment
- Temperature
- Operating: -20°C to 70°C Storage: -30°C to 80°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- 588,701 hrs @ 25°C; 480,691 hrs @ 45°C; 381,628 hrs @ 60°C Calculation model: Telcordia Issue 2 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- Qseven form factor 70mm (2.76") x 70mm (2.76")
- Compliance
- Qseven specification revision 1.2
Packing List
- Packing List
- 1 FS700 M60 Board 1 Heat spreader (for temperature -20°C to 70°C only)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| FS700-M60-6Q2081 | 770-FS7002-IF0G | Freescale, NXP i.MX 6Quad, 2GB DDR3 memory onboard, 8GB eMMC, 1 SATA 2.0, -40 to 85C |
| FS700-M60-6D2041 | 770-FS7002-600G | Freescale, NXP i.MX 6Dual, 2GB DDR3 memory onboard, 4GB eMMC, 1 SATA 2.0, 0 to 60C |
| FS700-M60-6L2041 | 770-FS7002-4B0G | Freescale, NXP i.MX 6DualLite, 2GB DDR3 memory onboard, 4GB eMMC, 1 SATA 2.0, 0 to 60C |
| FS700-M60-6S1041 | 770-FS7002-500G | Freescale, NXP i.MX 6Solo, 1GB DDR3 memory onboard, 4GB eMMC, 1 SATA 2.0, 0 to 60C |
| FS700-M60-6L2081 | 770-FS7002-1B0G | Freescale, NXP i.MX DualLite, 2GB DDR3 memory onboard, 8GB eMMC, 1 SATA 2.0, 0 to 60C |
| FS700-M60-6D2041 | 770-FS7002-6F0G | Freescale, NXP i.MX 6Dual, 2GB DDR3 memory onboard, 4GB eMMC, 1 SATA 2.0, 0 to 60C |
| FS700-M60-6Q2081 | 770-FS7002-700G | Freescale, NXP i.MX 6Quad, 2GB DDR3 memory onboard, 8GB eMMC, 1 SATA 2.0, 0 to 60C |
| FS700-M60-6L2041 | 770-FS7002-K00G | Freescale, NXP i.MX 6DualLite, 2GB DDR3 memory onboard, 4GB eMMC, 1 SATA 2.0, 0 to 60C |
| Item Name | Part Number | Description |
|---|---|---|
| UC20 Mini-PCIe UMTS/HSPA+ Module | 612-110040-600G | |
| Q7A-553 carrier board kit | 770-Q7A553-000G | |
| WM-240 WiFi kit | 761-110092-000G |
