RM310-RAP

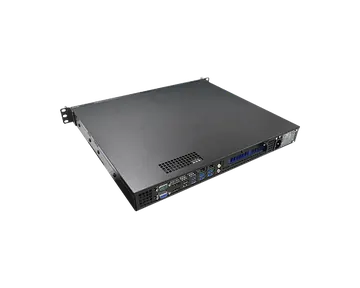

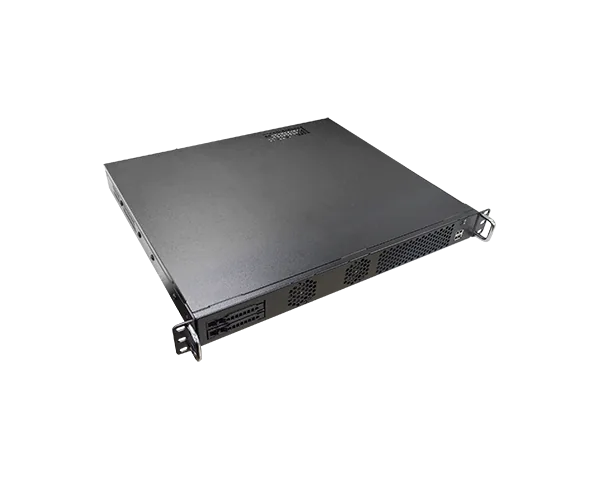

1U Rackmount Edge Computing System, AMD® Ryzen™ 9000/7000/EPYC 4005 Series, AMD B650 chipset, DDR5, 6 USB 3.2, 2 USB 2.0, 2 2.5GbE, 1 RS232, 1 VGA, 1 DP++, 1 HDMI, 1 Line-out, 1 Mic-in, 1 PCIe x16, 1 M.2 E key, 1 M.2 M key
- Equipped with AMD® Ryzen™ 9000/7000/EPYC 4005 Series and AMD B650 chipset
- Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities
- Features dual 2.5" swappable drive bays for reliable, high-availability storage
- Versatile I/O: 6 USB 3.2, 2 USB 2.0, 2 2.5GbE, 1 RS232, 1 VGA, 1 DP++, 1 HDMI, 1 Line-out, 1 Mic-in
- Triple displays: 1 VGA, 1 DP++, 1 HDMI
Főbb jellemzők
#DDR5
#Edge AI Computing
#AMD® Ryzen™ 7000 Series
#AMD® Ryzen™ 9000 Series
#AMD EPYC™ 4005 Series
#Windows 11
#PCIe x16
#Windows
#HDMI
#VGA
#DP
#Multiple Expansion
#2.5G Ethernet
Főbb jellemzőkKey features
- Equipped with AMD® Ryzen™ 9000/7000/EPYC 4005 Series and AMD B650 chipset
- Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities
- Features dual 2.5" swappable drive bays for reliable, high-availability storage
- Versatile I/O: 6 USB 3.2, 2 USB 2.0, 2 2.5GbE, 1 RS232, 1 VGA, 1 DP++, 1 HDMI, 1 Line-out, 1 Mic-in
- Triple displays: 1 VGA, 1 DP++, 1 HDMI
System
- Processor
- AMD® Ryzen™ 9000/7000/EPYC 4005 Series AM5 Socket Processors, TDP support up to 65W Ryzen™ 7 9700X (8 Cores, 32M Cache, up to 5.5 GHz); 65W (life cycle only to Q1' 29) Ryzen™ 5 9600X (6 Cores, 32M Cache, up to 5.4 GHz); 65W (life cycle only to Q1' 29) Ryzen™ 9 PRO 7945 (12 Cores, 64M Cache, up to 5.4 GHz); 65W Ryzen™ 7 PRO 7745 (8 Cores, 32M Cache, up to 5.3 GHz); 65W Ryzen™ 5 PRO 7645 (6 Cores, 32M Cache, up to 5.1 GHz); 65W EPYC™ 4545P (16 Cores, 64M Cache, up to 5.4 GHz); 65W EPYC™ 4465P (12 Cores, 64M Cache, up to 5.4 GHz); 65W EPYC™ 4345P (8 Cores, 32M Cache, up to 5.5 GHz); 65W EPYC™ 4245P (6 Cores, 32M Cache, up to 5.4 GHz); 65W
- Chipset
- AMD B650
- Memory
- Four 288-pin UDIMM up to 128GB (Non-ECC) Dual Channel DDR5 5200 MHz *Speed support list follow User’s Manual
- BIOS
- AMI SPI 256Mbit
Graphics
- Display
- 1 x VGA 1 x DP++ 1 x HDMI 2.0 VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 3840x2160 @ 60Hz HDMI: resolution up to 4096x2160 @ 60Hz
Storage
- External
- 2 x 2.5" SATA SSD (RAID 0/1/5/10)
- Internal
- 1 x M.2 2280 M key
Expansion
- Interface
- 1 x PCIe x16 1 x M.2 2230 E key 1 x M.2 2242/2260/2280 M key
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 2 x 2.5GbE (RJ-45)

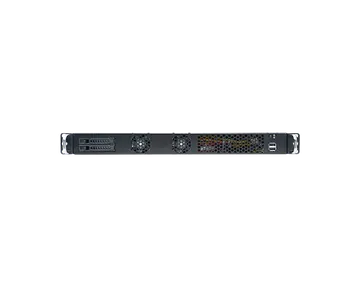

Front I/O
- Buttons
- 1 x Power Button
- LED Indicators
- 1 x Power LED 1 x HDD LED

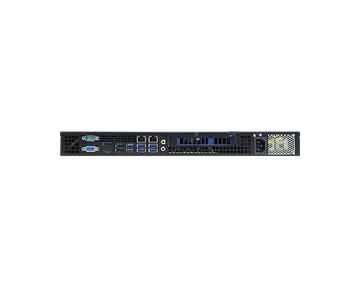

Rear I/O
- Ethernet
- 2 x 2.5GbE
- Serial
- 1 x RS232
- USB
- 6 x USB 3.2 2 x USB 2.0
- Display
- 1 x VGA 1 x DP++ 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in
Power
- Supply
- Single/Redundant Power
OS Support
- Microsoft
- Windows 11 Enterprise
Environment
- Operating Temperature
- 0°C to 40°C: CPU up to TBD W
Mechanism
- Dimensions
- 431.8(W)x 385(D)x 44(H)
- Construction
- Heavy Industrial Steel
- Mounting
- Rack mount kit
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Certifications
- TBD
Packing List
- Packing List
- • 1 RM310-RAP System Unit
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RM310-RAP System | TBD | TBD |
