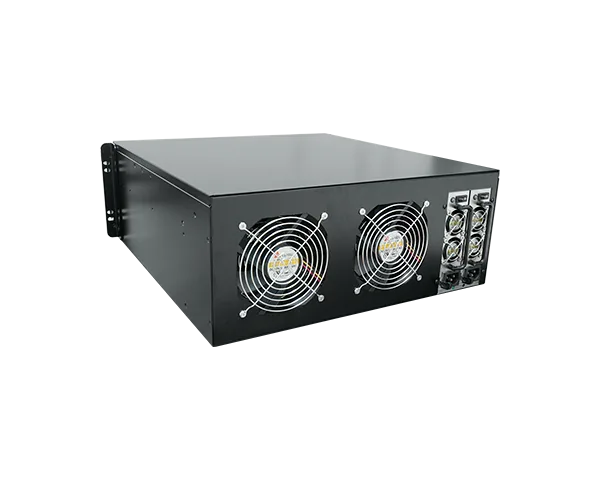

RM645
Rackmount Chassis, ATX form factor, 7 expansion slots, up to 8x 2.5" drive bays, redundant PSU
- 4U Short-Depth 19" Rackmount Standard for ATX MB
- up to 8 hot-swappable design available for 2.5” drive bays
- Multiple Expansion: Supports 7 expansion slots
- Reliable fix structure design for PCI/PCIe card: Optional support for redundant PSU request
- Eazy maintainance with front acess design
Főbb jellemzők
#Multiple Expansion
Főbb jellemzőkKey features
- 4U Short-Depth 19" Rackmount Standard for ATX MB
- up to 8 hot-swappable design available for 2.5” drive bays
- Multiple Expansion: Supports 7 expansion slots
- Reliable fix structure design for PCI/PCIe card: Optional support for redundant PSU request
- Eazy maintainance with front acess design
Storage
- External/Internal
- up to 8 x 2.5" drive bays
Expansion
- Interface
- 7 x Expansion Slot
Reserved I/O
- Front
- N/A
- Rear
- N/A
Panel Control / LED
- Buttons
- 1 x Power Switch 1 x Power LED 1 x HDD LED
Cooling
- Fan
- 2 x 120mm System Fan
Power
- Supply
- PS/2-ATX Mini-Redundant/1+1 Redundant PSU
Mechanism
- Dimensions (W x H x D)
- 481.5 x 175.6 x 470.8 mm
- Weight
- TBD
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
Rendelési információért vedd fel velünk a kapcsolatot.Please contact us for ordering information.
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
