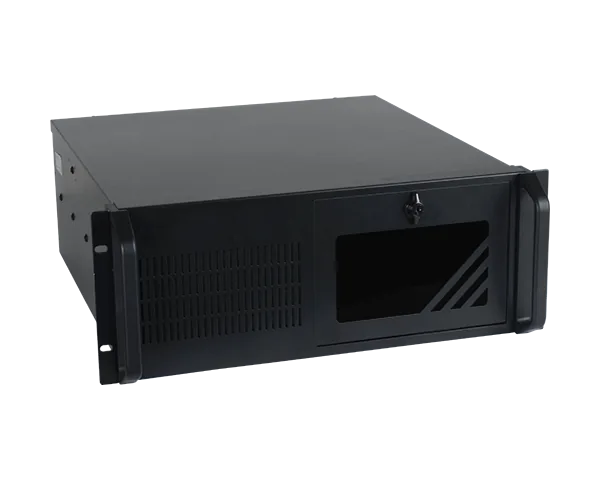

RM641-HD
Rackmount Box PC, 4th Gen Intel® Core™, DDR3, 1 PCIe x16, 1 PCIe x4, 4 PCI, 2 ISA, 1 VGA, 1 DVI
- 4th Intel® Core™ Rackmount 4U Box PC
- Up to 1x 3.5"/2.5" SATA drive bay and 3x optical drive bays
- Front-accessible system fan and USB interfaces
- Supports 7 expansion slots: 2 PCIe x16, 2 PCIe x4, 3 PCI
- Designed for industrial server application
- 7-Year CPU Life Cycle Support Until Q3' 19 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#1G Ethernet
#PCIe x16
#DVI-I
#DVI-D
#VGA
#Multiple Expansion
#DDR3
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 4th Intel® Core™ Rackmount 4U Box PC
- Up to 1x 3.5"/2.5" SATA drive bay and 3x optical drive bays
- Front-accessible system fan and USB interfaces
- Supports 7 expansion slots: 2 PCIe x16, 2 PCIe x4, 3 PCI
- Designed for industrial server application
- 7-Year CPU Life Cycle Support Until Q3' 19 (Based on Intel IOTG Roadmap)
System
- Processor
- LGA 1150 Socket 4th Generation Intel® Core™ Processors Intel® Core™ i7-4790S Processor (8M Cache, up to 4.0 GHz); 65W Intel® Core™ i7-4770S Processor (8M Cache, up to 3.9 GHz); 65W Intel® Core™ i7-4770TE Processor (8M Cache, up to 3.3 GHz); 45W Intel® Core™ i5-4590S Processor (6M Cache, up to 3.7 GHz); 65W Intel® Core™ i5-4590T Processor (6M Cache, up to 3.0 GHz); 35W Intel® Core™ i5-4570S Processor (6M Cache, up to 3.6 GHz); 65W Intel® Core™ i5-4570TE Processor (4M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-4360 Processor (4M Cache, 3.7 GHz); 54W Intel® Core™ i3-4350T Processor (4M Cache, 3.1 GHz); 35W Intel® Core™ i3-4340TE Processor (4M Cache, 2.6 GHz); 35W Intel® Core™ i3-4330 Processor (4M Cache, 3.5 GHz); 54W Intel® Core™ i3-4330TE Processor (4M Cache, 2.4 GHz); 35W Intel® Pentium® Processor G3420 (3M Cache, 3.2 GHz); 53W Intel® Pentium® Processor G3320TE (3M Cache, 2.3 GHz); 35W Intel® Celeron® Processor G1820 (2M Cache, 2.7 GHz); 53W Intel® Celeron® Processor G1820TE (2M Cache, 2.2 GHz); 35W
- Chipset
- Intel® H81 Chipset
- Memory
- Two 240-pin DIMM up to 16GB Dual Channel DDR3 1333/1600MHz
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- Direct X, Supports 6 Graphics Execution Units (EUs), Intel® Clear Video Technology
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) VGA, DVI: resolution up to 1920x1200 @ 60Hz
- Dual Displays
- VGA + DVI-I (DVI-D signal)
Storage
- External/Internal
- 3 x 5.25" Optical Drive Bays (Front Accessible) 1 x 3.5"/2.5" SATA 3.0 Drive Bay (Front Accessible)
Expansion
- Interface
- 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2) (x1 signal) 4 x PCI (PCI 2.3) (one shared with ISA slot) 2 x ISA
Audio
- Audio Codec
- Realtek ALC886
Ethernet
- Controller
- 1 x Intel® 82574 PCIe (10/100/1000Mbps) 1 x Intel® I217LM PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

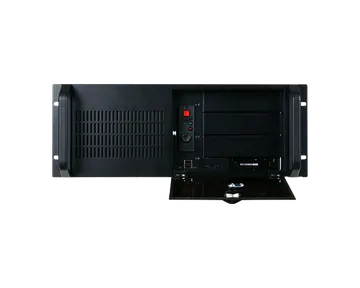

Front I/O
- USB
- 2 x USB 2.0 (available upon request)
- Buttons
- 1 x Power Switch 1 x Reset Switch
- Front Door
- 1 x Drive Panel Door With Keylock

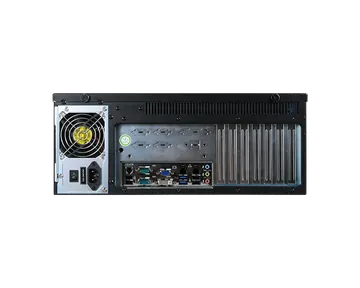

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 2 x RS-232/422/485 (DB-9)
- USB
- 2 x USB 3.0 4 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal)
- Audio
- 1 x Line-out 1 x Line-in 1 x Mic-in
- Buttons
- 1 x ATX Switch
Cooling
- Fan
- 2 x 92cm System Fan with Quick Access Filter
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Supply
- ATX PS/2 Power Supply 500W AC Power Input : 90~264V
OS Support
- OS Support
- WES 7
Environment
- Operating Temperature
- 0 to 45°C
- Storage Temperature
- -20 to 60°C
- Relative Humidity
- 0 to 90% RH (non-condensing)
Mechanism
- Construction
- SECC, Flexible Hold Down Bar
- Dimensions (W x H x D)
- 483mm x 177mm x 451mm
- Weight
- 21.7kg
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 10G
- Vibration
- Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC Class A, RoHS
Packing List
- Packing List
- 1 RM641-HD System Unit (including HD620-H81 MB, CPU cooler, ATX 500W PSU) 1 SATA Cable 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RM641-HD | 750-RM6411-200G | RM641-HD620, 4U Rackmount System, HD620-H81, 2 LAN, 2 COM, 6 USB, 7 Expansion Slots, ATX PS/2 500W, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| CPU | 785-1150DL | CPU, LGA1150, Long-Term Support, RoHS |
| 2.5" 500GB HDD | 785-H25500G | 2.5” SATA HDD, 500GB, RoHS |
| 3.5" 500GB HDD | 785-H35500G | 3.5” SATA HDD, 500GB, RoHS |
| 3.5" 1TB HDD | 785-H351T0B | 3.5” SATA HDD, 1TB, RoHS |
| 8GB DDR3L | 785-RLOD38G-L | DIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 8GB, RoHS |
| 4GB DDR3L | 785-RLOD34G-L | DIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 4GB, RoHS |
| 2GB DDR3 | 785-RLOD32G | DIMM, DDR3 Module, 2GB, RoHS |
| HDD Bracket | 622-050050-000G | 5.25" to 3.5" HDD Bracket |
| SSD Bracket | A31-028264-000G | 3.5" to 2.5" SSD Bracket |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| 300W Power Supply | 671-330005-000G | ATX PS/2, 300W, 24pin, RoHS |
| 500W Power Supply | 671-350001-000 | ATX PS/2, 500W, 100~240V, RoHS |
