DFI Networker Kft.

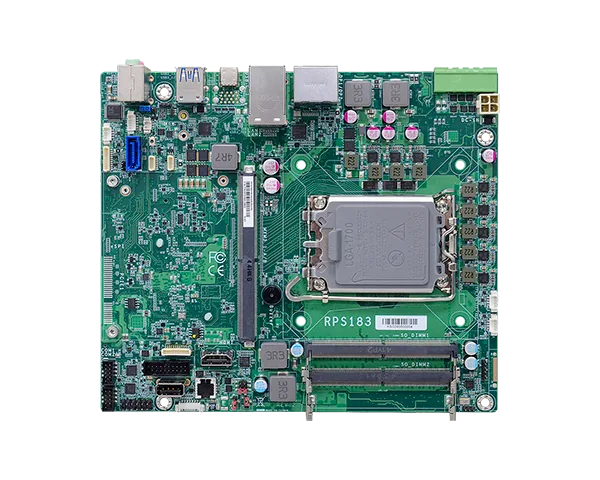

RPS183

Mini-ITX, BTL-S/14th/13th/12th Gen Intel® Core™, 2 DDR5 SODIMM, 1 PCIe x4, 1 M.2 M Key, 1 M.2 E Key, 1 M.2 B Key, 1 DP++(CPU), 1 DP++(MXM), 1 USB Type C(DP Alt-mode), 1 eDP(MXM), 1 internal HDMI(MXM), 2 Intel 2.5GbE, up to 4 USB 3.2 Type A, up to 1 USB Type C, 19~24V

  • BTL-S/14th/13th/12th Gen Intel® Core Processors
  • 2 DDR5 SODIMM up to 64GB
  • Multiple Display: 1 DP++(CPU), 1 DP++(MXM), 1 USB Type C(DP Alt-mode), 1 eDP(MXM), 1 internal HDMI(MXM)

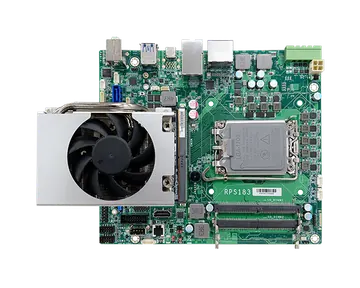

  • Support MXM module, with 1 internal HDMI, 1 eDP and 1 external DP++
  • Multiple Expansion: 1 PCIe x4(side), 1 M.2 M key, 1 M.2 E Key, 1 M.2 B Key
  • Rich I/O: 2 Intel® 2.5GbE, up to 4 USB 3.2 Type A, up to 1 USB Type C
  • Wide Range power input 19~24V
  • Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
KaphatóLaunched
Wide Voltage: 19~24V DC-in
Multiple Expansion
DDR5
Rich I/O
10 Years CPU Life Cycle Support
Multiple Displays
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
#12th Gen Intel® Core™ Processor #DDR5 #13th Gen Intel® Core™ Processor #Windows 10 #Edge AI Computing #USB Type-C DP #I2C #M.2 #EXT-OOB (Full) #Intel® Bartlett Lake-S Processors #MXM #14th Gen Intel® Core™ Processor #Windows 11 #Intel #1G Ethernet #Linux #DP #Multiple Expansion #RoHS Certification #CE Certification #FCC Certification #2.5G Ethernet #UKCA Certification

Főbb jellemzőkKey features

  • BTL-S/14th/13th/12th Gen Intel® Core Processors
  • 2 DDR5 SODIMM up to 64GB
  • Multiple Display: 1 DP++(CPU), 1 DP++(MXM), 1 USB Type C(DP Alt-mode), 1 eDP(MXM), 1 internal HDMI(MXM)
  • Support MXM module, with 1 internal HDMI, 1 eDP and 1 external DP++
  • Multiple Expansion: 1 PCIe x4(side), 1 M.2 M key, 1 M.2 E Key, 1 M.2 B Key
  • Rich I/O: 2 Intel® 2.5GbE, up to 4 USB 3.2 Type A, up to 1 USB Type C
  • Wide Range power input 19~24V
  • Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
