DFI Networker Kft.

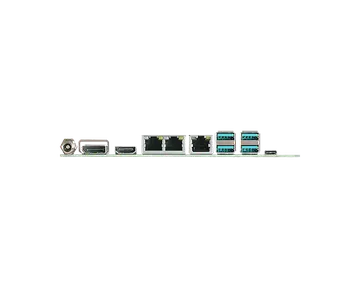

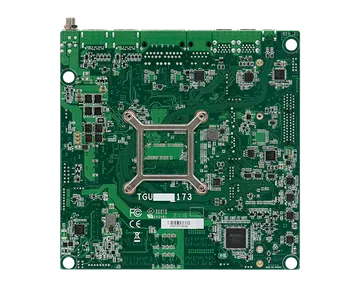

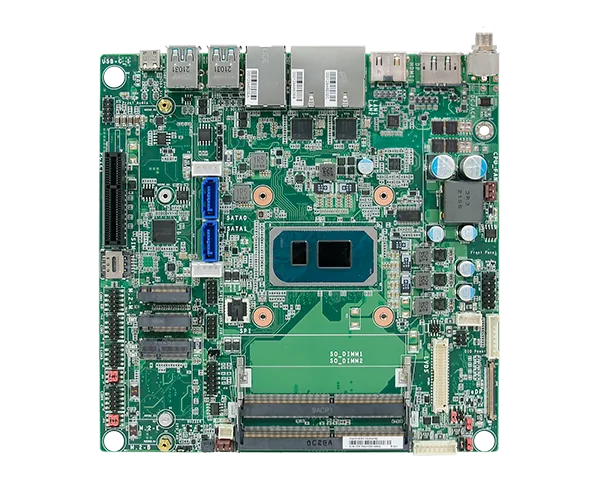

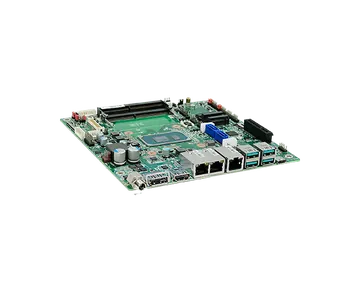

TGU171/TGU173

Tiger Lake, Mini-ITX, 11th Gen Intel® Core™, 2 DDR4, 1 PCIe x4, 3 M.2, 1 M/B/E key, 1 Nano-SIM socket, 1 LVDS, 1 eDP, 1 Intel 2.5GLAN, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen2, 1 USB Type-C, 4 USB 2.0, 1 DP++, 1 HDMI, 2 SATA 3.0

  • 11th Gen Intel® Core™ Processors
  • DDR4 3200MHz SODIMM up to 64GB
  • Quad independent displays: 1 LVDS, 1 eDP, 1 DP++, 1 HDMI, 1 USB Type C
  • Supports up to 4K/2K resolution
  • Multiple expansion: 1 PCIe x4, 1 M.2 M Key, 1 M.2 B key (SATA/PCIe), 1 M.2 E key (USB), 1 Nano-SIM Socket
  • Storage: 2 SATA 3.0
  • Rich I/O: 1 Intel 2.5GLAN, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen2, 1 USB Type-C, 4 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)
KaphatóLaunched Megvásárlás (US)Buy online (US)
Wide-temp: -40~85°C
Wide Voltage: 9~36V DC-in
4K2K Display
Multiple Expansion
Quad Independent Display
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
#Windows 10 #IoT #Windows 11 #Intel #5G #4K2K Display #Windows #Linux #HDMI #DP #Multiple Expansion #DDR4 #RoHS Certification #CE Certification #FCC Certification #11th Gen Intel® Tiger Lake Processor #2.5G Ethernet #UKCA Certification

Főbb jellemzőkKey features

  • 11th Gen Intel® Core™ Processors
  • DDR4 3200MHz SODIMM up to 64GB
  • Quad independent displays: 1 LVDS, 1 eDP, 1 DP++, 1 HDMI, 1 USB Type C
  • Supports up to 4K/2K resolution
  • Multiple expansion: 1 PCIe x4, 1 M.2 M Key, 1 M.2 B key (SATA/PCIe), 1 M.2 E key (USB), 1 Nano-SIM Socket
  • Storage: 2 SATA 3.0
  • Rich I/O: 1 Intel 2.5GLAN, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen2, 1 USB Type-C, 4 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)
