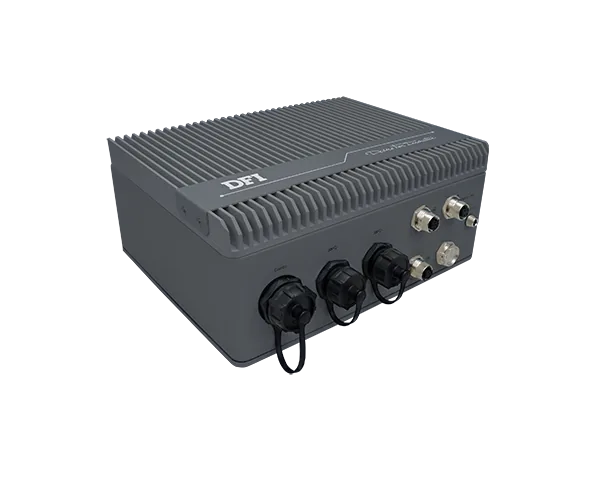

VCX700-MTH
Ruggedized Fanless in-vehicle system, Intel Core Ultra Processor 125U or 155U, LPDDR5, HDMI 1.4b, M.2 SSD, M.2 B Key, M.2 E Key, Wifi<E/5G, 1 2.5GbE, 1 1GbE, OOB, 9-asix IMU Sensor, IP67, -40° to 70° C, 9~36Vdc
- A ruggedized, IP67-rated, fanless in-vehicle system built for harsh environments.
- Intel Core Ultra processor with LPDDR5-6400 soldered memory
- 3 M.2 sockets for 5G/LTE/WiFi/Storage modules
- 2 x CAN FD, 2x RS232 via IP67-rated combo connector
- Build-in 9 axis sensor for driver detection within fleet management
- Wide voltage: 9~36V vehicle power input with ACC/IGN function
- Wide temperature up to -40°C ~ 70°C
Főbb jellemzők
Tanúsítványok
#Windows 10
#9~36V DC-in
#IP69K
#IP67
#Ruggedized Design
#OOB
#Out-Of-Band (OOB)
#Intel® Core™ Ultra processors
#Windows 11
#Intel
#SIM Slot
#5G
#PoE
#Fanless Design
#Compact Size
#Windows
#Linux
#HDMI
#RoHS Certification
#CE Certification
#FCC Certification
#In-Vehicle
#2.5G Ethernet
Főbb jellemzőkKey features
- A ruggedized, IP67-rated, fanless in-vehicle system built for harsh environments.
- Intel Core Ultra processor with LPDDR5-6400 soldered memory
- 3 M.2 sockets for 5G/LTE/WiFi/Storage modules
- 2 x CAN FD, 2x RS232 via IP67-rated combo connector
- Build-in 9 axis sensor for driver detection within fleet management
- Wide voltage: 9~36V vehicle power input with ACC/IGN function
- Wide temperature up to -40°C ~ 70°C
System
- Processor
- Intel® Core™ Ultra 7/5 Processors, TDP 15W Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.8GHz) Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz)
- Memory
- Dual Channel LPDDR5/x 6400MHz memory down Up to 32GB (64GB per request)
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® Arc™ Graphics
- Feature
- OpenGL 4.6, Direct X 12.2, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9,AV1, AVC
- Display
- 1 x HDMI 1.4b HDMI: resolution up to 4096x2160@24Hz
Storage
- M.2 SSD (M Key)
- 256GB Available(128GB/512GB by project support)
Expansion
- Interface
- 1 x M.2 3052 B key (PCIe x1 & USB3.0/2.0)(for LTE or 5G module, optional) 1 x M.2 2230 E Key (PCIe x1 & USB2.0)(for Wi-Fi module, optional)
Ethernet
- Controller
- 2 x Intel® i226IT (10/100/1000/2500Mbps)
LED
- Indicators
- 1 x Power Status LED

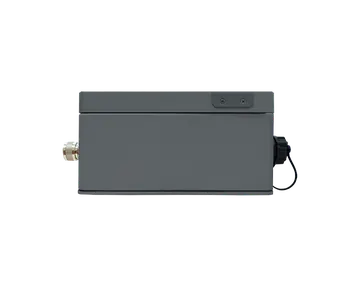

Side I/O
- Display
- 1 x HDMI
- SIM
- 1 x SIM card slot
- USB
- 2 x USB 3.2

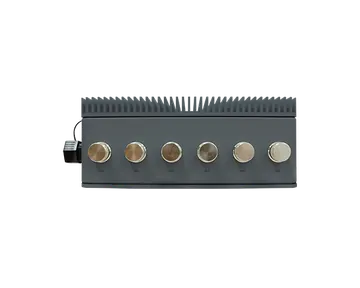

Top I/O
- Antenna Connectors
- 6 x Antenna (for Wi-Fi, LTE, 5G)

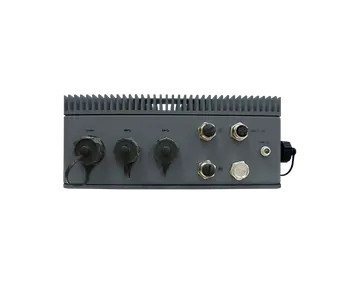

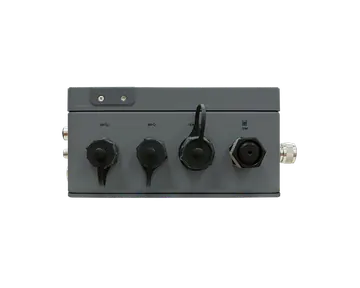

Bottom I/O
- USB
- 2 x USB 3.2
- Combo Port
- 2 x RS232 and 2 x CAN FD
- Power
- 1 x 9~36V DC-IN with ignition control
- Vent
- 1 x Vent
- Ethernet/PoE
- LAN1/LAN2 2.5GbE, M12 X-coded
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- DC-in 9~36V with ignition control
- Connector
- M12 D-code
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 IoT Enterprise LTSC 2024
- Linux
- Linux
Environment
- Operating Temperature
- -20 to 70°C -40 to 70°C (By request)
- Storage Temperature
- -40 to 85°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 239.24 x 194 x 101 mm
- Weight
- 3.62 kg
Standards and Certifications
- Shock
- Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis
- Vibration
- Operation Vibration test: MIL-STD-810G 514.6C-2, Figure 514.6C-2
- Certifications
- CE, FCC class A, ROHS
- Construction
- IP67 enclosure
Packing List
- Packing List
- · 1 VCX700-MTH system unit · 1 COMBO cable (for COM & CAN BUS) · 2 LAN cable · 6 Dust cover (for antenna connector) · 1 DC input cable
Country of Origin
- Country of Origin
- Taiwan
