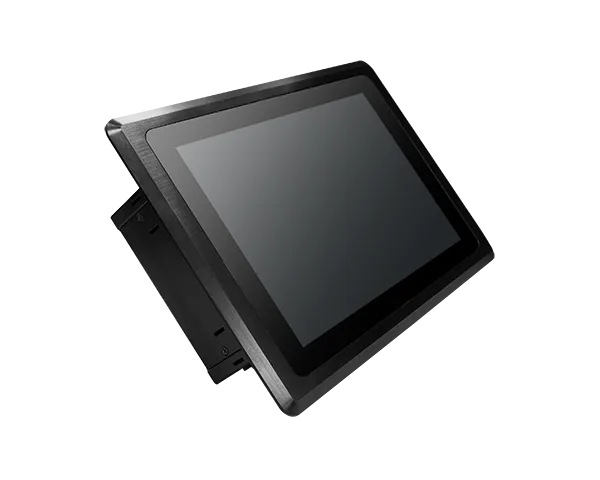

VP101-M8M
ARM-Based In-vehicle Touch Panel PC, NXP i.MX 8M, 1 GbE, 4 COM, 1 CAN Bus, 2 USB 3.1 Gen1, 1 x OTG, micro USB, -20 to 70°C, Android 9.0 & Linux, IP65, Power Ignition
- ARM-Based In-vehicle System
- NXP i.MX 8M Dual/Quad Cortex
- IP65 Front Panel Protection
- High Brightness: 10.1’’ 1200 cd/m²
- Rich I/O: 1 GbE, 4 COM, 1 CAN Bus, 2 USB 3.1 Gen1
- Smart Power Ignition Control: Power delay and protection time setting
Főbb jellemzők
Tanúsítványok
#M.2
#E-Mark (E24) Certification
#SIM Slot
#CAN-Bus
#ARM
#Fanless Design
#IP65 Front Panel Protection
#1G Ethernet
#Linux
#Android
#High Brightness
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
#NXP i.MX 8M
Főbb jellemzőkKey features
- ARM-Based In-vehicle System
- NXP i.MX 8M Dual/Quad Cortex
- IP65 Front Panel Protection
- High Brightness: 10.1’’ 1200 cd/m²
- Rich I/O: 1 GbE, 4 COM, 1 CAN Bus, 2 USB 3.1 Gen1
- Smart Power Ignition Control: Power delay and protection time setting
System
- Processor
- NXP i.MX 8M Dual/Quad Cortex-A53 Max. Speed: 1.3GHz
- Memory
- On board Memory 2GB/4GB (Default 2GB) Single Channel LPDDR4 up to 3200 MHz
Display and Touch Screen
- Display
- 10.1" PCAP TFT
- Brightness
- 1200 cd/m² 500 cd/m²
- Max. Resolution
- 1280 x 800
Storage
- External
- Micro SD card slot
- Internal
- Support eMMC 5.1 16GB on board (default) Support up to 64GB (optional)
Expansion
- Interface
- 1 M.2 2242/3042 B Key (USB3.1 Gen1),Nano SIM Slot support 1 M.2 2230 E Key (PCIe x1/USB2.0)
Audio
- Audio Codec
- SGTL5000
- Speaker
- 3W x 1
Ethernet
- Controller
- AR8035
LED
- Indicators
- Power
Sensor
- Sensor
- 6 axis IMU (3 Accelerometer + 3 Gyroscope)
I/O
- Ethernet
- 1 x GbE
- Serial
- 1 x RS-232/422/485 (COM4) 1 x RS-232(TX,RX,RTS,CTS) (COM2) 2 x RS-232(TX,RX) (COM1/COM3) 1 x CAN Bus, DB-9
- USB
- 2 x USB 3.1 Gen1 1 x OTG, micro USB
- Buttons
- 1 x Reset switch, 1 re-download switch
Power
- Type
- 9~36V DC Power input, with ACC/IGN control
OS Support
- Linux
- Yocto 2.5 (optional)
- Android
- Android 9.0 (default)
Environment
- Operating Temperature
- -20 to 70°C
- Storage Temperature
- -30 to 80°C
- Relative Humidity
- 10 to 90% RH (non-condensing)
Mechanism
- Construction
- Aluminum + SGCC
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Panel Mount /VESA Mount
- Dimensions (W x H x D)
- 294 x 193 x 53 mm
- Weight
- 1.67kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC, E-Mark (E24), RoHS, UKCA (ongoing)
Packing List
- Packing List
- • 1 VP101-M8M System Unit • 1 ADDM UL Battery Addendum
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| VP101-M8M | 750-VP1011-000G | VP101P-M8M-D, Fan-less 10.1" Panel PC, 500nits; NXP i.MX 8M Dual; 2GB DDR4; eMMC 16GB; PCT, 9V~36V with ACC/Ignition, F/G SYSTEM RoHS |
| VP101-M8M | 750-VP1011-100G | VP101P-M8M-Q, Fan-less 10.1" Panel PC, 500nits; NXP i.MX 8M Quad; 4GB DDR4; eMMC 16GB; PCT, 9V~36V with ACC/Ignition, F/G SYSTEM RoHS |
| VP101-M8M | 750-VP1011-200G | VP101P-M8M-D, Fan-less 10.1" Panel PC, 1200nits; NXP i.MX 8M Dual; 2GB DDR4; eMMC 16GB; PCT, 9V~36V with ACC/Ignition, F/G SYSTEM RoHS |
| VP101-M8M | 750-VP1011-300G | VP101P-M8M-Q, Fan-less 10.1" Panel PC, 1200nits; NXP i.MX 8M Quad; 4GB DDR4; eMMC 16GB; PCT, 9V~36V with ACC/Ignition, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| LTE 4G | 761-EM06KE-000G | 4G Module Kit, W/Antenna*3, SMA Cable*3, Quectel LTE-A Cat 6 M.2 Module, 42x30x2.3mm, EM06K-EA(QUECTEL) RoHS |
| WiFi + BT | 761-ES2200-100G | Wi-Fi Kit WiFi+BT Kit, WiFI+BT Module, W/2 Dipole Antenna, 2 MHF4 Cable/200mm, RTL8822CE(ENLI) RoHS |
| Power Switch Cable | A81-006065-016G | Power SWITCH CABLE, Terminal Block 1*3P/5.0mm to DC Jack, L=100mm with ignition switch button |
| Power Adapter | 671-106012-000G | POWER ADAPTER, 60W, EA10681N-120, Input: 100~240V, Output: 12V/5A, 113x49x35mm, L=1500mm, DC PLUG 5.5*2.5*10mm(Lockable), LV6,62368-1, EA10681N(183)(EDAC)RoHS |
| Mounting | A31-038052-000G 761-TPC000-000G | PANEL HOLDER BRACKET, SGCC T=1.0mm Wall Mount Kit |
