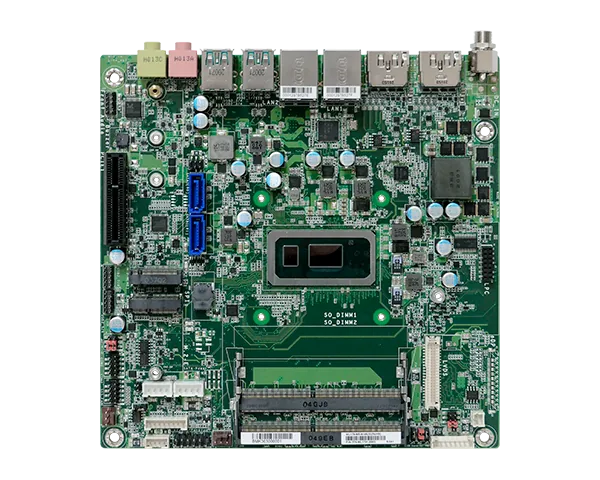

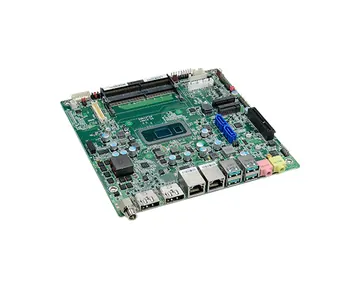

Mini-ITX, 8th Gen Intel® Core™, 2 DDR4, 1 PCIe x4, 2 M.2, 1 LVDS/eDP, 1 VGA, 2 DP++, 2 SATA 3.0
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WL171-NE-8665UE | 770-WL1711-000G | I7-8665UE processor, 2 DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 12V, -20~70°C |
| WL171-NE-8365UE | 770-WL1711-100G | I5-8365UE processor, 2 DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 12V, -20~70°C |
| WL171-NB-8145UE | 770-WL1711-200G | I3-8145UE processor, 2 DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 12V, -5~65°C |
| WL171-NB-4305UE | 770-WL1711-300G | Celeron 4305UE processor, 2 DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 12V, -5~65°C |
| WL173-NE-8665UE | 770-WL1731-000G | I7-8665UE processor, 2 DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 9-36V, -20~70°C |
| WL173-NE-8365UE | 770-WL1731-100G | I5-8365UE processor, 2 DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 9-36V, -20~70°C |
| WL173-NB-8145UE | 770-WL1731-200G | I3-8145UE processor, 2 DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 9-36V, -5~65°C |
| WL173-NB-4305UE | 770-WL1731-300G | Celeron 4305UE processor, 2 DP++, LVDS, 2 GbE, 2 SATA 3.0, 2 COM, 4 USB3.1 Gen2, 4 USB2.0, DC jack, TPM2.0 Onboard, 9-36V, -5~65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001032-016G | Length: 200mm |
| COM port cable | A81-015011-001G | Length: 250mm, 1 x COM ports |
| Serial ATA data with power cable | A81-002013-000G | Length: 300mm |
| I/O shield | A49-WL1710-000G |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
