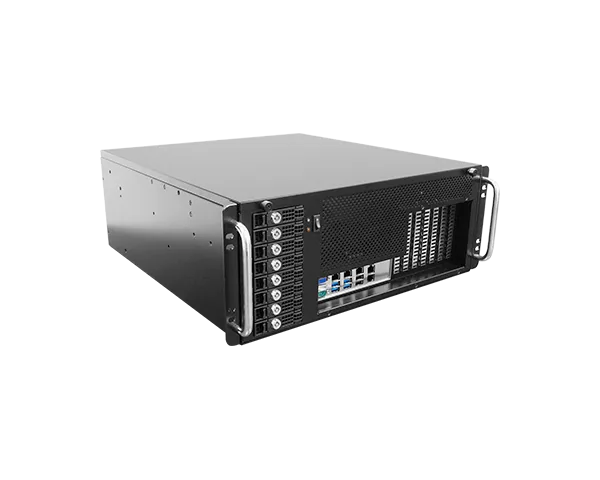

RM645-ICX610
Rackmount Edge-Server System for ATX, 3rd Gen Intel® Xeon® Scalable Processor Family, ECC-RDIMM, VGA, 3 PCIe x16, 3 PCIe x8, 1 M.2 M key, 2 GbE, 2 10GbE, 1 COM, 4 USB 3.1, 2 USB 2.0, OOB Remote Management
- 4U short-depth edge server powered by 3rd Gen Intel® Xeon® processors
- Supports 3 PCIe x16 and 3 PCIe x8 slots for full-height, 10.5” length expansion cards
- Accommodates up to 8 hot-swappable 2.5” drive bays for high availability storage
- Versatile I/O: 2x GbE, 2x 10GbE, 1x RS-232, 4x USB 3.1, and 2x USB 2.0 ports
- Remote system management enabled via IPMI Out-of-Band (OOB)
- VGA display output supports resolutions up to 1920x1200 @ 60Hz
- Supports up to 512GB of ECC-RDIMM memory across 8x 288-pin DIMM slots
Főbb jellemzők
Tanúsítványok
#Windows 10
#Edge AI Computing
#M.2
#3rd Gen Intel Xeon Scalable Family
#Out-Of-Band (OOB)
#IoT
#Intel
#1G Ethernet
#PCIe x16
#Windows
#Linux
#VGA
#Multiple Expansion
#10G Ethernet
#DDR4
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 4U short-depth edge server powered by 3rd Gen Intel® Xeon® processors
- Supports 3 PCIe x16 and 3 PCIe x8 slots for full-height, 10.5” length expansion cards
- Accommodates up to 8 hot-swappable 2.5” drive bays for high availability storage
- Versatile I/O: 2x GbE, 2x 10GbE, 1x RS-232, 4x USB 3.1, and 2x USB 2.0 ports
- Remote system management enabled via IPMI Out-of-Band (OOB)
- VGA display output supports resolutions up to 1920x1200 @ 60Hz
- Supports up to 512GB of ECC-RDIMM memory across 8x 288-pin DIMM slots
System
- Processor
- 3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+) Intel® Xeon® Gold 6338N ( 32 Cores, 48 MB Cache, up to 3.50 GHz ) Intel® Xeon® Gold 6338T ( 24 Cores, 36 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 6336Y ( 24 Cores, 36 MB Cache, up to 3.60 GHz ) Intel® Xeon® Gold 6330 ( 28 Cores, 42 MB Cache, up to 3.10 GHz ) Intel® Xeon® Gold 6330N ( 28 Cores, 42 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 6326 ( 16 Cores, 24 MB Cache, up to 3.50 GHz ) Intel® Xeon® Gold 6314U ( 32 Cores, 48 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 6312U ( 24 Cores, 36 MB Cache, up to 3.60 GHz ) Intel® Xeon® Gold 5320T ( 20 Cores, 30 MB Cache, up to 3.50 GHz ) Intel® Xeon® Gold 5318N ( 24 Cores, 36 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 5318Y ( 24 Cores, 36 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 5317 ( 12 Cores, 18 MB Cache, up to 3.60 GHz ) Intel® Xeon® Gold 5315Y ( 8 Cores, 12 MB Cache, up to 3.60 GHz ) Intel® Xeon® Silver 4316 ( 20 Cores, 30 MB Cache, up to 3.40 GHz ) Intel® Xeon® Silver 4314 ( 16 Cores, 24 MB Cache, up to 3.40 GHz ) Intel® Xeon® Silver 4310 ( 12 Cores, 18 MB Cache, up to 3.30 GHz ) Intel® Xeon® Silver 4310T ( 10 Cores, 15 MB Cache, up to 3.40 GHz )
- Chipset
- Intel® C621A Chipset
- Memory
- 8 x 288-pin ECC-RDIMM up to 512GB Single Channel DDR4 up to 3200 MHZ
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- BMC AST2500
- Display
- 1 x VGA (opt.) resolution up to 1920x1200 @ 60Hz
Storage
- External
- 6 SATA 3.0 (RAID 0/1/5/10)
- Internal
- 1 M.2 2280 M key
Expansion
- Interface
- 3 x PCIe x16 Gen4 3 x PCIe x8 Gen4
Audio
- Audio Codec
- ALC888S
- Interface
- Onboard Front Audio Pin Header
Ethernet
- Controller
- 2 Intel® I210 2 Intel® X550-AT2 1 IPMI: RTL8211F
Front I/O
- Ethernet
- 2 x GbE 2 x 10 GbE 1 x Dedicated IPMI LAN (Opt.)
- Serial
- 1 x RS-232 (DB-9)
- USB
- 4 x USB 3.1 2 x USB 2.0
- Display
- 1 x VGA (opt.)
- Audio
- Onboard Front Audio Pin Header
- LED Indicators
- 1 x Power LED 1 x HDD LED
Button
- Buttons
- 1 x Power Button

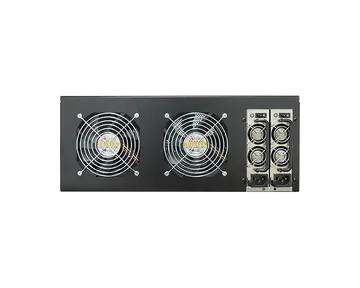

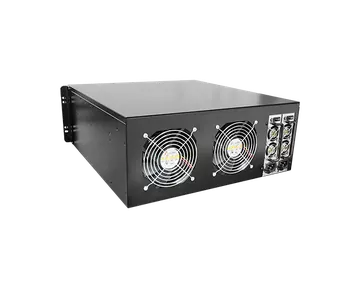

Cooling
- Fan
- 12 CM Fan x 2
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM2.0 (opt.)
Power
- Supply
- ATX PS/2 or Mini Redundant PSU
OS Support
- Microsoft
- Windows 10 IoT Enterprise LTSB RS5(64-bit) Windows Server 2019
- Linux
- Ubuntu 20.04
Environment
- Operating Temperature
- 0 to 40°C
- Storage Temperature
- -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Construction
- Heavy Industrial Steel
- Mounting
- Flexible hold down bar
- Dimensions (W x H x D)
- 481.6 x 175.6 x 470.8mm
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: random 5~500Hz 1G Non-operating: sweep sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC class A
Packing List
- Packing List
- • 1 RM645-ICX610 System Unit
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RM645-ICX610 | TBD | TBD |
