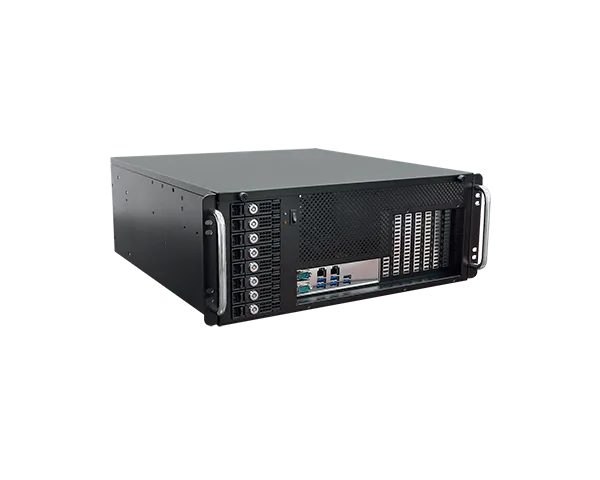

RM645-SO630
Rackmount Edge System for ATX, AMD® EPYC™ 3000 Series, DDR4 RDIMM/UDIMM, 3 PCIe x16 (up to 6 PCIe x8), 1 PCI, 2 M.2 M Key, 2 COM, 6 USB 3.1 Gen1, 0 to 40°C
- 4U short-depth edge server powered by AMD® EPYC™ Embedded 3451/3351 Processors
- Supports up to 256GB DDR4 RDIMM/UDIMM across 8 slots
- Flexible expansion: 3 PCIe x16 or 6 PCIe x8, 1 PCI, and 2 M.2 M-Key slots
- Accommodates up to 8 hot-swappable 2.5” drive bays for high availability storage
- Enhanced connectivity with 2 COM ports and 6 USB 3.1 Gen1 ports
- Long-term reliability with 10-year CPU lifecycle support through Q1 2031
Főbb jellemzők
#Windows 10
#M.2
#AMD® EPYC™ 3000 Series
#AMD
#PCIe x16
#Windows
#Linux
#Multiple Expansion
#DDR4
Főbb jellemzőkKey features
- 4U short-depth edge server powered by AMD® EPYC™ Embedded 3451/3351 Processors
- Supports up to 256GB DDR4 RDIMM/UDIMM across 8 slots
- Flexible expansion: 3 PCIe x16 or 6 PCIe x8, 1 PCI, and 2 M.2 M-Key slots
- Accommodates up to 8 hot-swappable 2.5” drive bays for high availability storage
- Enhanced connectivity with 2 COM ports and 6 USB 3.1 Gen1 ports
- Long-term reliability with 10-year CPU lifecycle support through Q1 2031
System
- Processor
- AMD® EPYC™ Embedded 3451, 16 Core, 32 Threads, 2.14GHz (3 GHz), 80-100W AMD® EPYC™ Embedded 3351, 12 Core, 24 Threads, 1.9GHz (3 GHz), 60-80W
- Memory
- 8 DDR4 RDIMM/UDIMM up to 256GB
- BIOS
- Insyde
Storage
- External
- 5 x SATA 3.0
- Internal
- 1 x M.2 2280 M Key (PCIe x4 NVMe) 1 x M.2 2280 M Key (SATA/PCIe x2 NVMe)
Expansion
- Interface
- 3 x PCIe x16 (up to 6 PCIe x8) 1 x PCI
Ethernet
- Controller
- 2 x Intel i210AT

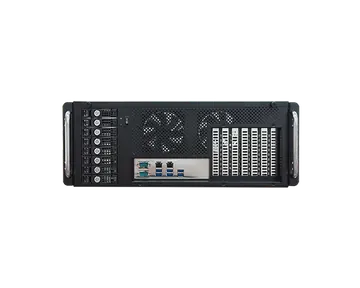

Front I/O
- Ethernet
- 2 x GbE
- Serial
- 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9)
- USB
- 6 x USB 3.1 Gen1
- LED Indicators
- 1 x Power LED 1 x HDD LED
Button
- Buttons
- 1 x Power Button

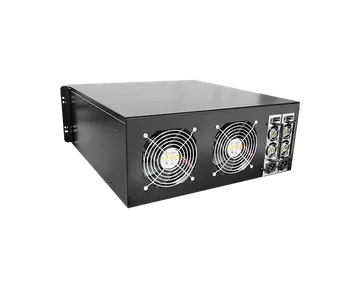

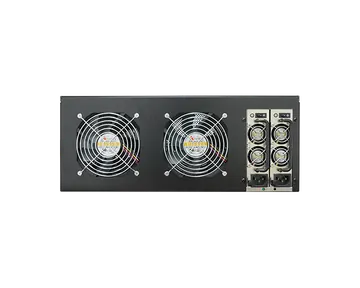

Cooling
- Fan
- 12 CM Fan x 2
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM2.0 (opt.)
Power
- Supply
- ATX PS/2 or Mini Redundant PSU
OS Support
- Microsoft
- Windows 10 Windows Server 2019
- Linux
- Opt.
Environment
- Operating Temperature
- 0 to 40°C
- Storage Temperature
- -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Construction
- Heavy Industrial Steel
- Mounting
- Flexible hold down bar
- Dimensions (W x H x D)
- 481.6 x 175.6 x 470.8mm
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: random 5~500Hz 1G Non-operating: sweep sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- TBD
Packing List
- Packing List
- • 1 RM645-SO630 System Unit
Country of Origin
- Country of Origin
- Taiwan
