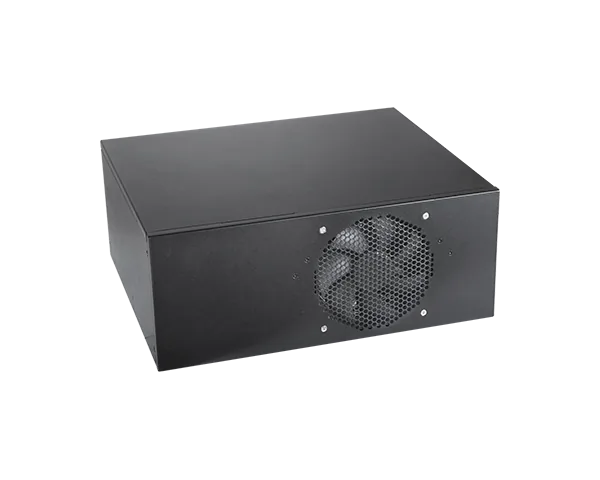

WM343-CMS
Industrial Desktop Computer, Wallmount Box PC, 10th Gen Intel® Core™, DDR4, 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 VGA, 1 DP++, 1 HDMI
- 10th Generation Intel® Core™ Processors
- Triple independent display : VGA + DP++ + HDMI
- Diverse Storage : 3.5"/2.5" SATA + 5.25" optical drive bay
- Multiple Expansion : 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 M.2 M Key, 1 M.2 E Key
- 15-Year CPU Life Cycle Support Until Q2' 34
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#Intel
#4K2K Display
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 10th Generation Intel® Core™ Processors
- Triple independent display : VGA + DP++ + HDMI
- Diverse Storage : 3.5"/2.5" SATA + 5.25" optical drive bay
- Multiple Expansion : 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 M.2 M Key, 1 M.2 E Key
- 15-Year CPU Life Cycle Support Until Q2' 34
System
- Processor
- 10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W
- Chipset
- [WM343-CMS-Q470E] Intel® Q470E Chipset [WM343-CMS-H420E] Intel® H420E Chipset
- Memory
- [WM343-CMS-Q470E] Four 288-pin Non-ECC UDIMM up to 128GB [WM343-CMS-Q470E] Dual Channel DDR4 2400/2666/2933MHz [WM343-CMS-H420E] Two 288-pin Non-ECC UDIMM up to 64GB [WM343-CMS-H420E] Dual Channel DDR4 2400/2666/2933MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DP++ 1 x HDMI 1.4b VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz
- Triple Displays
- [WM343-CMS-Q470E] VGA + DP++ + HDMI [WM343-CMS-H420E] VGA + DP++ / VGA + HDMI / DP++ + HDMI
Storage
- External
- 1 or 2 x 3.5"/2.5" SATA 3.0 drive bays (1 x 3.5" SATA drive bay, by default) 1 x 5.25" Optical drive bay
- Internal
- [WM343-CMS-Q470E] 1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support) [WM343-CMS-Q470E] 1 x M.2 2230 E Key (USB 2.0/PCIe) [WM343-CMS-H420E] N/A
- Interface
- 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 3) 2 x PCI
Audio
- Audio Codec
- Realtek ALC888
- Interface
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt., MOQ required)
Ethernet
- Controller
- [WM343-CMS-Q470E] 1 x Intel® I211AT PCIe (10/100/1000Mbps) [WM343-CMS-Q470E] 1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps)(Core i9/i7/i5 supports iAMT) [WM343-CMS-H420E] 1 x Intel® I211AT PCIe (10/100/1000Mbps) [WM343-CMS-H420E] 1 x Intel® I219LM PHY (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

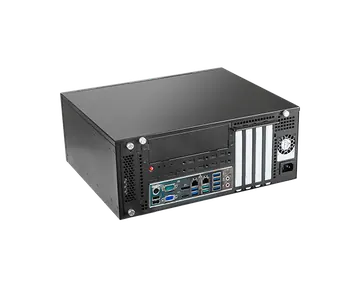

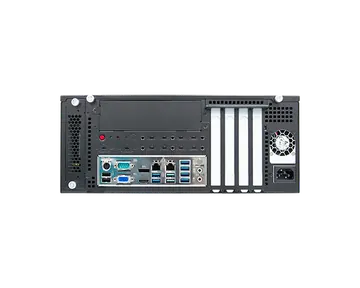

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 2 x USB 3.2 Gen2 2 x USB 3.2 Gen1 (Up to 6 x USB 3.2 Gen1, MOQ required) 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DP++ 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt., MOQ required)
- Buttons
- 1 x Power button 1 x Reset button
Cooling

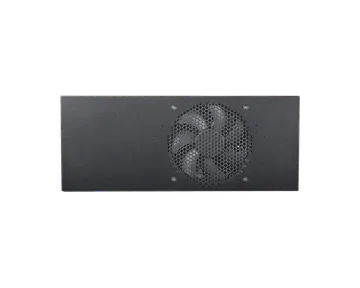

- Fan
- 1 x 12cm System Fan
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM1.2/2.0 (optional)
Power
- Supply
- Flex ATX 150W/250W/350W/400W/500W (250W Default)
OS Support
- Microsoft
- Windows 10
- Linux
- Linux
Environment
- Operating Temperature
- 0 to 45°C
- Storage Temperature
- 0 to 50°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Dimensions
- 349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")
- Construction
- Sheet metal
- Mounting
- Wall mount
- Weight
- 7.7kg
- Color
- no coating or black coating
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC Class A, RoHS, UKCA
Packing List
- Packing List
- 1 WM343-CMS330 System Unit 1 CPU Cooler (65W) 4 HDD Screws 1 System Fan
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WM343-CMS330-H420E | 750-WM343A-000G | WM343-CMS, uATX System, Black, CMS330-H420E, 250W, F/G SYSTEM RoHS |
| WM343-CMS330-Q470E | 750-WM343A-500G | WM343-CMS, uATX System, Black, CMS330-Q470E, 500W, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Wall Mount | 761-WM3410-000G | ACCESSORY WALL MOUNT KITS WM34x Series RoHS |
| CPU Cooler | 761-103004-000G 761-103001-000G | 35W 95W-125W |
