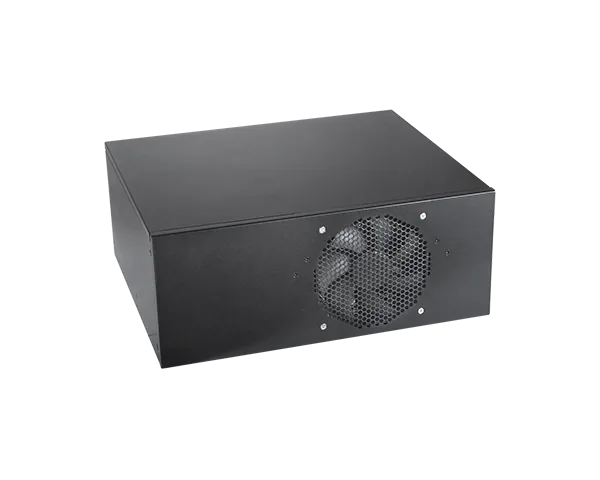

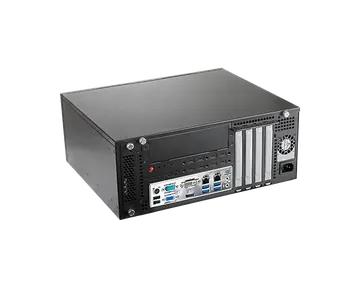

WM343-CS330
Industrial Desktop Computer, Wallmount Box PC, 8th/9th Gen Intel® Core™, DDR4, 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini-PCIe socket, 1 VGA, 1 DVI-D, 1 DP++
- 8th/9th Generation Intel® Core™ Processors
- Triple independent display : VGA + DVI-D + DP++
- 4 Expension slots (3.5"/2.5" SATA driver bay + 5.25" optical drive bay)
- Multiple expansion : 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini-PCIe socket
- 15-Year CPU Life Cycle Support Until Q3' 33
Főbb jellemzők
Tanúsítványok
#8th Gen Intel® Core™ Processor
#9th Gen Intel® Core™ Processor
#Intel
#4K2K Display
#Windows
#Linux
#DVI-D
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 8th/9th Generation Intel® Core™ Processors
- Triple independent display : VGA + DVI-D + DP++
- 4 Expension slots (3.5"/2.5" SATA driver bay + 5.25" optical drive bay)
- Multiple expansion : 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini-PCIe socket
- 15-Year CPU Life Cycle Support Until Q3' 33
System
- Processor
- 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors: Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W 9th Generation Intel® Core™ LGA 1151 Socket Processors: Intel® Core™ i9-9900K (8 Cores, 16M Cache, up to 5.0 GHz); 95W (Non-LTS) Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
- Chipset
- [WM343-CS330-H310] Intel® H310 Chipset [WM343-CS330-Q370] Intel® Q370 Chipset
- Memory
- [WM343-CS330-Q370] Four 288-pin DIMM up to 128GB [WM343-CS330-Q370] Dual Channel DDR4 2400/2666 MHz [WM343-CS330-H310] Two 288-pin DIMM up to 64GB [WM343-CS330-H310] Dual Channel DDR4 2400/2666 MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920x1200@60Hz DVI-D: resolution up to 1920x1200@60Hz DP++: resolution up to 4096x2160@60Hz
- Multiple Displays
- [WM343-CS330-H310] Dual Displays: VGA & DVI-D / VGA & DP++ / DP++ & DVI-D [WM343-CS330-Q370] Triple Displays: VGA & DVI-D & DP++
Storage
- External
- 1 or 2 x 3.5"/2.5" SATA 3.0 drive bays (1 x 3.5" SATA drive bay, by default) 1 x 5.25" Optical drive bay
- Internal
- 1 x mSATA
- Interface
- [WM343-CS330-Q370] 1 x PCIe x16 (Gen 3) [WM343-CS330-Q370] 1 x PCIe x4 (Gen 3) [WM343-CS330-Q370] 2 x PCI [WM343-CS330-Q370] 1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default) [WM343-CS330-H310] 1 x PCIe x16 (Gen 3) [WM343-CS330-H310] 1 x PCIe x4 (Gen 2) [WM343-CS330-H310] 2 x PCI
Audio
- Audio Codec
- Realtek ALC888
- Interface
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt.)
Ethernet
- Controller
- 1 x Intel® I211AT (10/100/1000Mbps) 1 x Intel® I219V (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

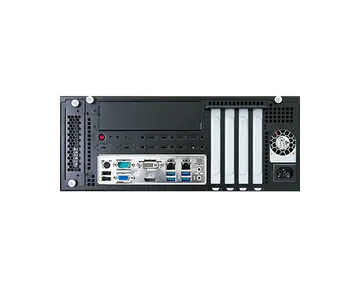

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 4 x USB 3.1 Gen 1 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt.)
- Buttons
- 1 x Power button 1 x Reset button
- Cutout
- 2 x DB-9 Cutout 8 x USB 2.0 Cutout

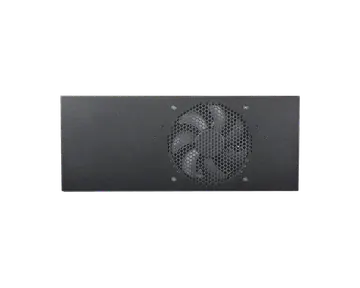

Cooling
- Fan
- 1 x 12cm System Fan
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM1.2/2.0 (optional)
Power
- Supply
- Flex ATX 150W/250W/350W/400W/500W (250W Default)
OS Support
- Microsoft
- Windows 10
- Linux
- Linux
Environment
- Operating Temperature
- 0 to 45°C
- Storage Temperature
- 0 to 60°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Construction
- Sheet metal
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")
- Weight
- 7.7kg
- Color
- no coating or black coating
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC Class A, RoHS
Packing List
- Packing List
- 1 x WM343-CS330 System Unit 1 x CPU cooler 1 x SATA Data Cable (Length: 650mm) 4 x HDD Screws 1 x Quick Installation Guide 1 x PSU Flex ATX 150W/250W/350W/400W/500W (250W Default) 1 x System Fan
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WM343-CS330 | 750-WM3436-000G | WM343-CS, uATX System, Black, CS330-H310, 250W, F/G SYSTEM RoHS |
| WM343-CS330 | 750-WM3436-100G | WM343-CS, uATX System, Black, CS330-Q370, 250W, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Wall Mount | 761-WM3410-000G | ACCESSORY WALL MOUNT KITS WM34x Series RoHS |
